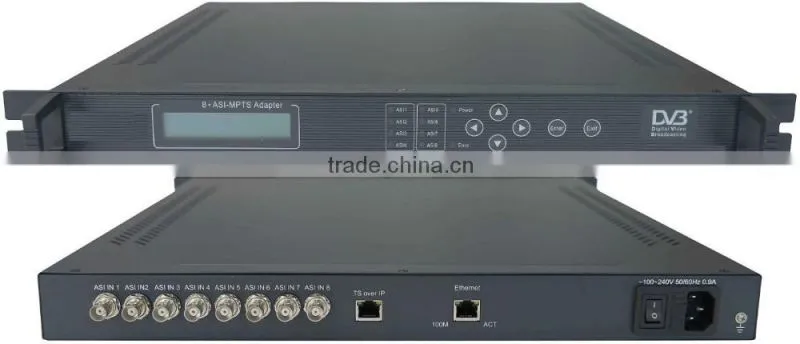

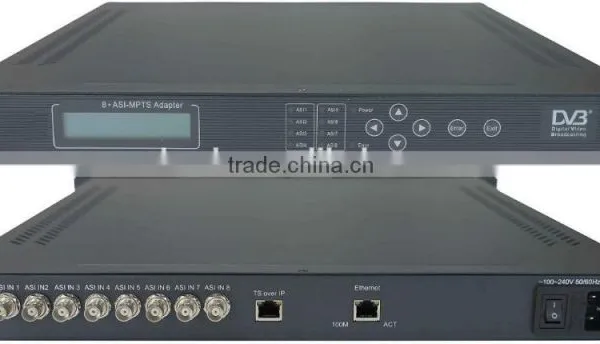

sc2235 sc-2235 ASI*8-IP*8 MPTS gigabit ip covnerter Gateway
8ASI-to-8IP,multicast,Gigabit
8 MPTS IP/UDP out,ts over ip
8*ASI to 8*MPTS IP Gateway
asi ts to ip Gateway(8ASI-to-8IP,multicast,only work with Gigabit port)
Overview
8*ASI to 8*MPTS IP Gateway supports 8 ASI input and output 8×MPTS/Multicast IP transport stream (TS over UDP). It suits 1U rack and can be configured by front panel LCD and NMS (network management software), and is mainly applied to IP QAM(DVB-C)/Transcoder system.
Technical Specification
Input |
BNC Interface |
8*ASI/BNC |
Output |
1000BASE-T/Gigabit IP port; 8*MPTS multicast TS over IP/UDP(1*MPTS/Multicast per satellite transponder); |
|
Control |
IP remote |
NMS (Ethernet Port, RJ-45), 10/100m base-TX, |
Front panel |
Keyboard + LCD |
|
General Features |
Size |
480mm*410mm*44mm |
Temperature |
0 ~ 45 (Operation); -20 ~ 80 (Storage) |
|
Power |
220VAC (-+10%), 50Hz, 25W |
|
Order Guide
2236 |
ASI*8-IP*SPTS IPTV Gateway(8ASI-to-64SPTS IP, only Gigabit port) |
2235 |
8×ASI in, 8×IP/MPTS/Multicast/Gigabit out |
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
