iptv SPTS mpts mpeg-4 encoder (8AV in,ASI+IP/MPTS/SPTS out)

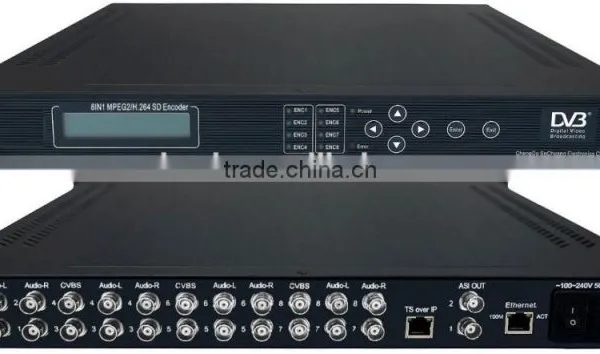

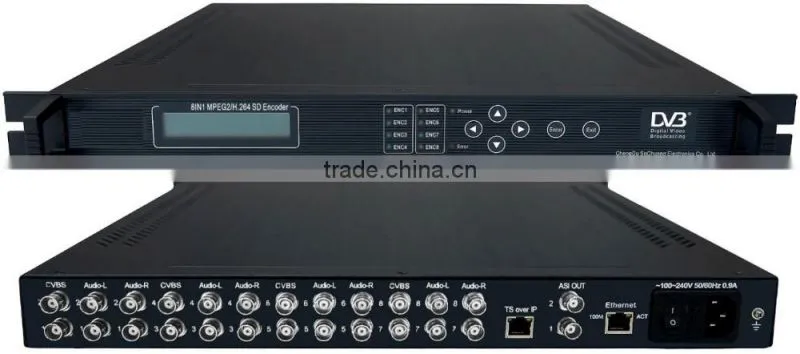

SD 8IN1 Low-bitrate MPEG-2/MPEG-4 Encoder
Overview
SD 8IN1 MPEG-2/H.264 encoder has 8 analog composite video(CVBS) and 8 pairs of unbalanced audio (mono or stereo) input, supporting MPEG-2/H.264 video and MPEG-1/AAC audio encoding, to generate DVB transport stream (TS/ASI) and MPTS/SPTS(TS over IP) output. It uses Magnum chipset, supporting low bitrate. This encoder suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling.
Technical Specification
Input |
Video |
8×CVBS, BNC interface |
Audio |
8 pairs of unbalanced audio, BNC interface |
|
Video |
Encoding(4:2:0) |
MPEG-2/H.264(MPEG-4 AVC) Full D1 |
Pixel |
PAL 720×576, NTSC 720×480 |
|
Frame Rate |
25, 29, 97, 30fps |
|
Aspect Ration |
4X3,16X9,1X1 |
|
Bitrate |
0.5~7.5Mbps per channel |
|
Rescale |
352×240, 320×240, 320×180, 192×192, 160×120 |
|
Audio |
Sampling |
32KHz, 44.1KHz, 48KHz |
Bitrate |
32, 48, 56, 64, 128, 192, 256, 384, 640 Kbps |
|
Volume |
0 ~ 256 |
|
Property |
MPEG-1 Layer 2,HE-AAC |
|
Output |
2×ASI |
DVB standard, BNC interface |
IP(TS over UDP) |
1*MPTS/8*SPTS(Unicast/Multicast), network RJ-45 10/100 M base-Tx |
|
Control |
NMS (Ethernet Port),front panel(Keypad + LCD) |
|
General Features |
Size |
482mm×410mm×44mm |
Temperature |
0~45°C(Operation); -20~80°C(Storage) |
|
Power |
100-240VAC (±10%), 50/60Hz, 25W |
|
Order Guide
1303 |
8×AV in, ASI+IP(MPTS/SPTS,Multicast/Unicast) out |
Network Management:
output setting :
video audio setting:

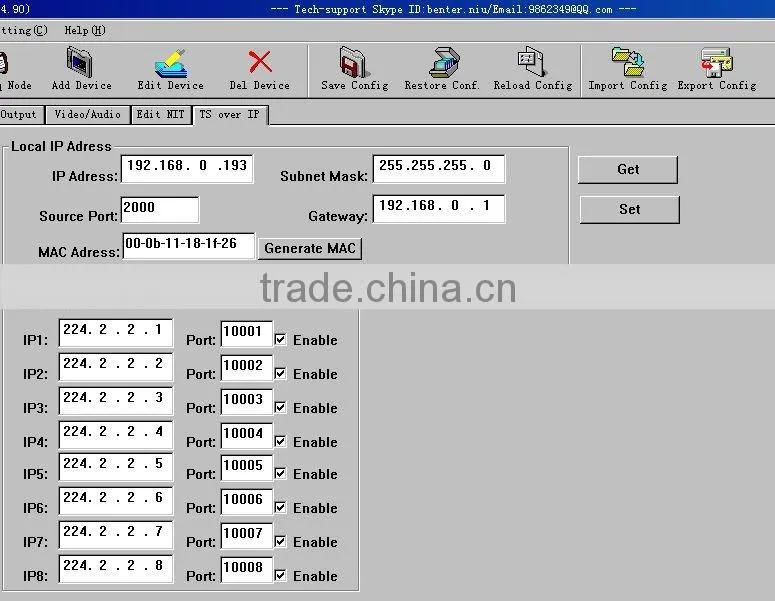

SPTS ip out:

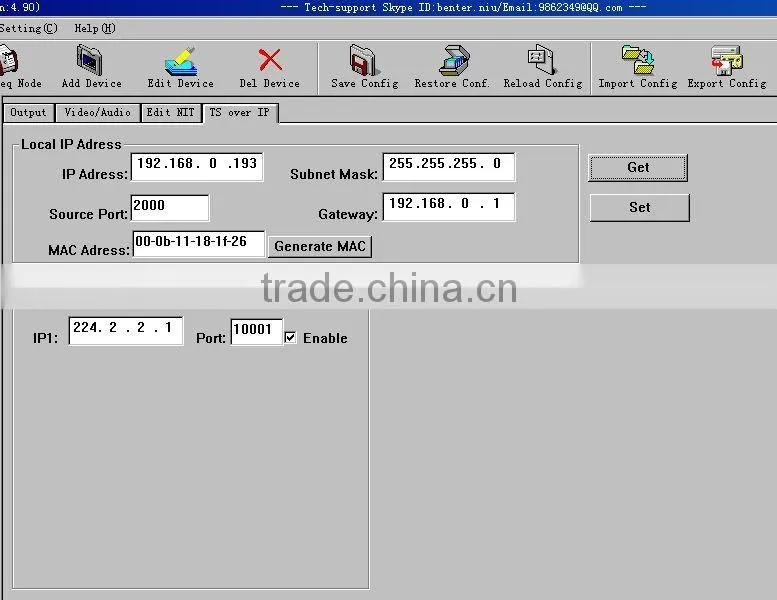

MPTS ip out:
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
