iptv SPTS mpts mpeg-4 encoder(4 CVBS+audio in,ASI+IP(UDP)/MPTS out)

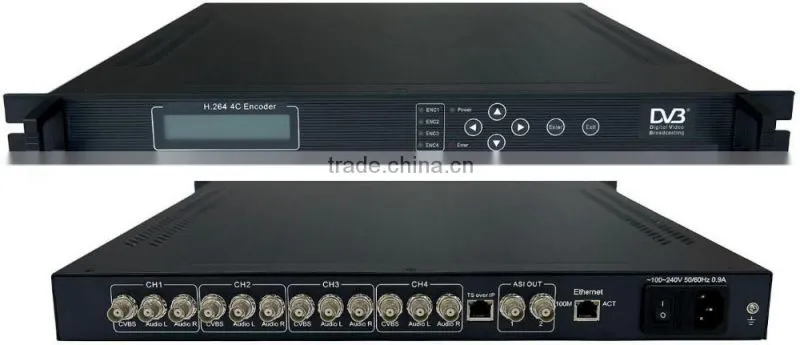

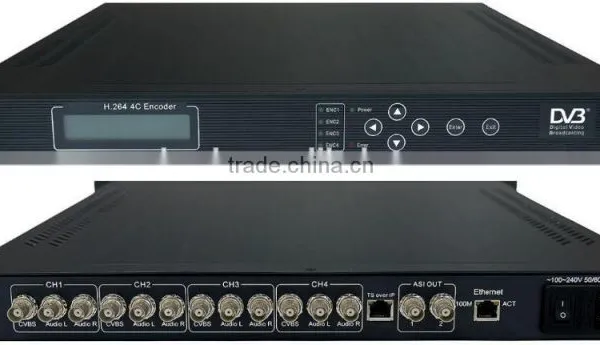

SD 4IN1 H.264 IP Encoder
Overview
SD 4-IN-1 H.264/MPEG-4 AVC IP encoder supports SD H.264/AVC MPEG-4 video and MPEG-1 audio encoding. It has 4 analog composite video (4 CVBS) and 4 pairs of unbalanced audio (mono/stereo) input interface and DVB transport stream (TS/ASI) and IP/MPTS (TS over IP) output interface. It suits 1U rack and can be operated by front panel LCD and remotely controlled by Network Management Software.
Technical Specification
Input |
Video |
4 CVBS, BNC interface |
|
Audio |
4 pairs of unbalanced audio, BNC interface |
||
Video |
Resolution |
PAL :720*576 NTSC :720*480 |
|
Encoding |
ISO/IEC14496-10 (H.264/MPEG-4 AVC) |
||
Bitrate |
1.0~15Mbps per channel |
||
Audio |
Sampling |
32KHz, 44.1KHz, 48KHz |
|
Code Rate |
64, 128, 192, 256, 384Kbps |
||
Encoding |
MPEG-1 Layer2 |
||
Output |
2 ASI |
DVB standard, BNC interface |
|
IP Out |
IP/UDP (MPTS/Unicast/Multicast), RJ45 10/100 M base-Tx |
||
edit |
PID value, program name,program number |
||
Control |
NMS (Ethernet Port), Keyboard + LCD |
||
General Features |
Size |
44mm*482mm*410mm |
|
Temperature |
0 ~ 45 (Operation); -20~ 80 (Storage) |
||
Power |
220VAC (+/-10%), 50Hz, 25W |
||
Order Guide
1303 |
8×AV in, ASI+IP/MPTS/Multicast/Unicast out
|
1109 |
4×AV in, ASI+IP/1*MPTS/Multicast/Unicast out |
1111 |
4×AV in, IP/4*SPTS/Multicast out |
Network management Software

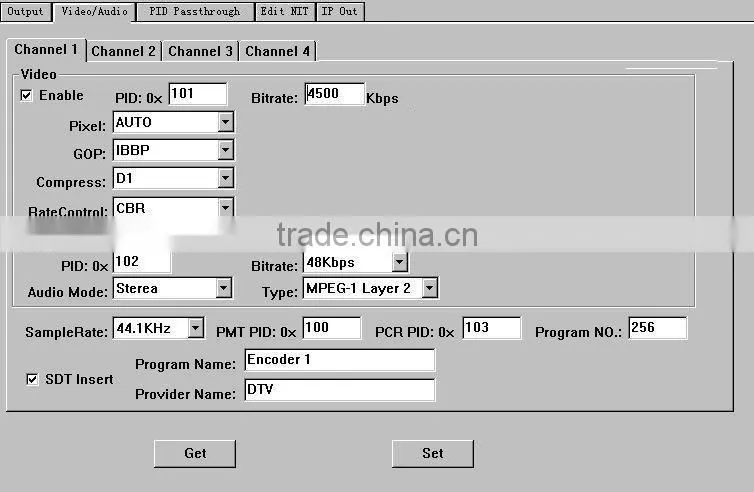

Video Audio setting:

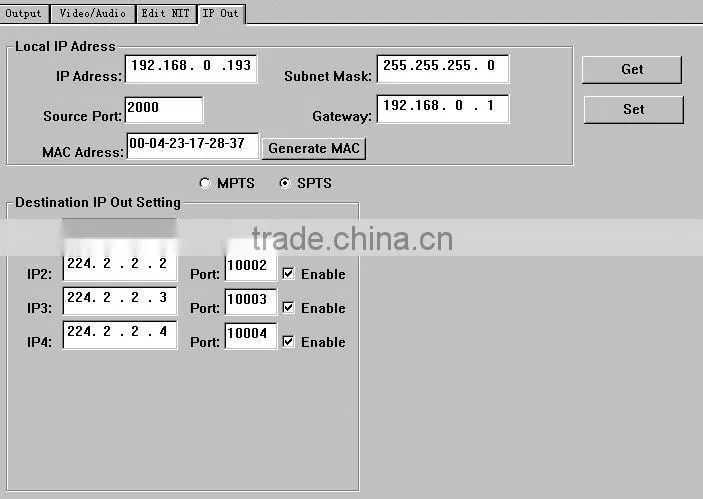

SPTS over UDP output setting:
Assembling :
Packing:
Stocking:
Company information:
Certificate&Exhibition:
