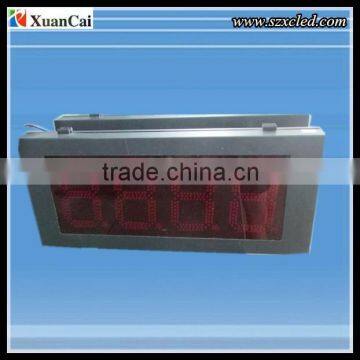

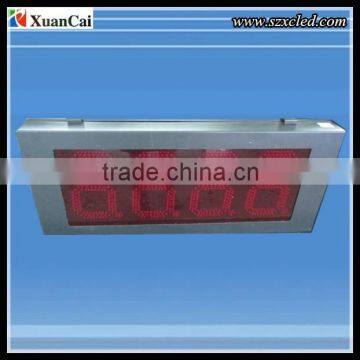

Green 8 inch Amber led gas station price sign

Four digits

8 inch single side

Iron Cabinet: 70*30*7cm

Screen size: 21.5*56.5cm

Character size:18.5*10.2cm

it support to input space, dot, digital.

Message update: remote control & computer

1.High grade stainless steel/aluminium/galvanized sheet to your need.

2. Processing: Laser cutting, polishing, painting and assembly;

3. 1:1 fixing template attached for installation reference

4. Water proof and anti-rust for outdoor signs

RF Remote control operation:

* Product power on and show the address of screen (A01-99) first, then display the price which was set well.

*Press 12 key to display A-XX ( XX is screen NO.), input the screen number which you want to modify price (two digits), then corresponding screen will flashing. Press 14 key, relative screen enter into editting state, other screen will return back to normal state.

* When screen flashing, press 12 key to set brightness 1-8grades L-X.

Input 14 key to confirm and enter into digital editting.

*Input relative digit or point (10 key is 0, 12 key is point), press 12 can clear current digits. Use left and right key (13 is left, 15 is right) to move cursor position, press 14 to save and ESC.

Computer download:

Open download software ‘Oil price LED display system V3.1.exe

To check the screen which need to update the price.

Input the new data in corresponding screen. (0-9, point, space), choose the serial port which was connected, then press Second key.
