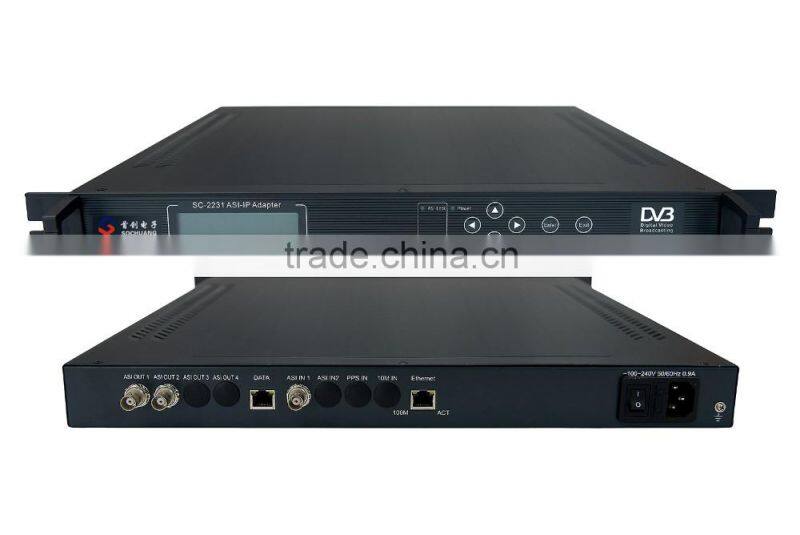

DVB Headend ASI-IP Gateway/Digital TV Adapter

Name: DVB Headend ASI-IP Gateway/Digital TV Adapter
Brand: sochuang
SKU: 116095609
Availability: InStock

Chengdu Sochuang Electronics Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

sochuang

Model Number:

SC-2231

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name sochuang

Model Number SC-2231

Digital TV Adapter

Overview:

IP-ASI Adapter/Gateway is one of the main equipment of the cable digital TV headend, receiving data from the

encoder,multiplexer, DVB gateway, scrambler, video server and other DVB transport stream, transform into IP/UDP

streams (TS over IP), or to receive transport stream from the network and transform into ASI stream.

Features:

u Full hardware implementation, high efficiency and stability;

u Full-duplex;

u 8MB cache, anti-burst stream;

u Real-time stream monitoring;

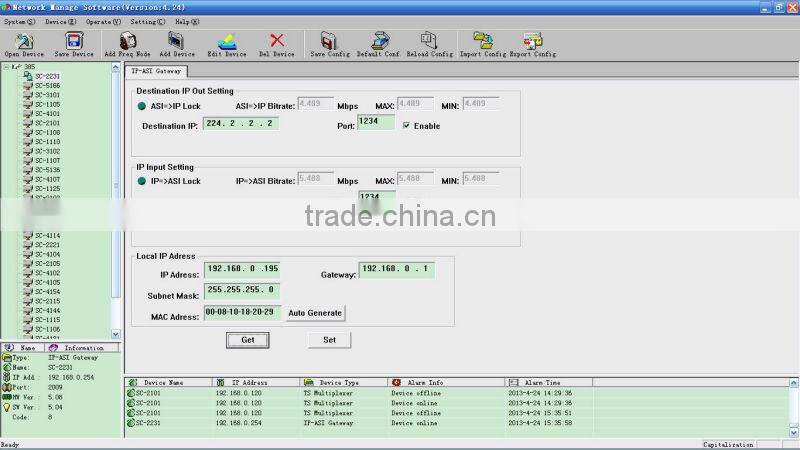

u Local and remote control;

u LCD display in Chinese and English, easy and flexible to operate;

u High reliability, stable.

Technical Specification:

Management			Network RJ-45 10/100m base-TX,NMS
Out	ASI		BNC/TS
Out	IP		UDP/RTP, Unicast/multicast, TS over IP
General Features		Size	44mm482240mm
		Environment	0 ~ 45(Operating); -20 ~ 80(Storage)
		Power	220VAC(-+10%),50Hz,25W
