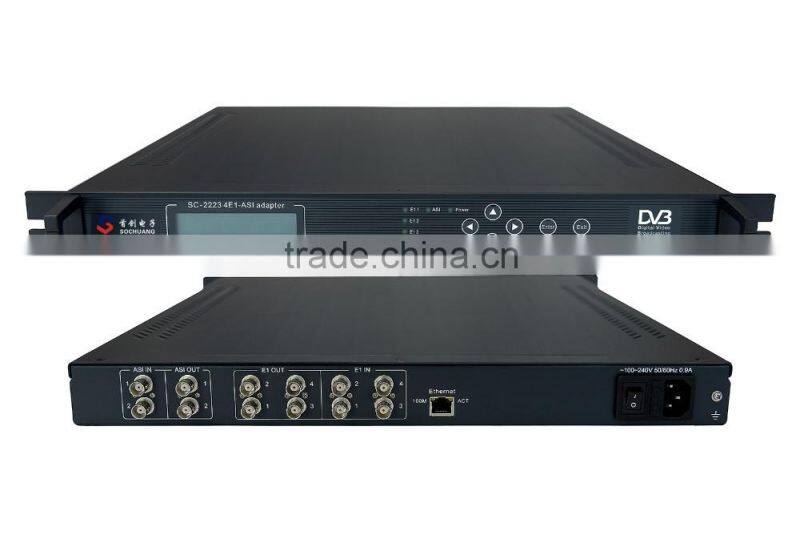

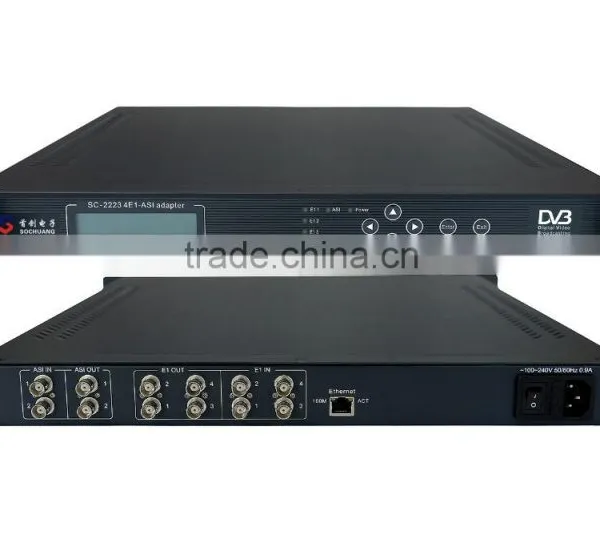

4 E1 to ASI Adapter (ASI+4 E1 IN and 4 E1+ASI out)/SC-2223
Overview
4×E1-ASI Adapter can convert E1 signal to ASI/TS and ASI/TS to E1 signal. TS (Transport Stream) can reach to 2Mbps per E1 channel. It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling. Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.
Features
u Full hardware implementation, high efficiency and stability
u Real-time transport stream monitoring
u 8MB cache, anti-burst stream

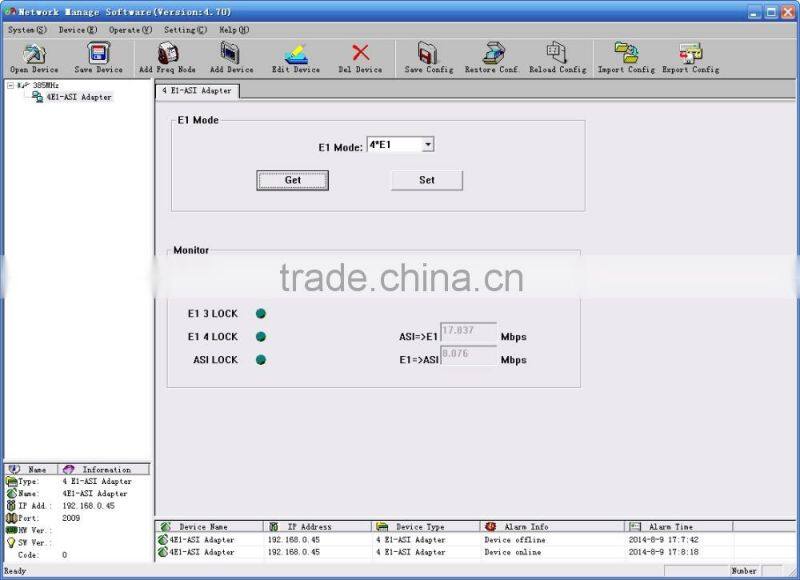

u LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
ASI Input |
BNC interface |
|
ASI Output |
BNC interface |
|
E1 Input |
4×BNC interface |
|
E1 Output |
4×BNC interface |
|
Control |
network RJ-45, 10/100M, base-TX, NMS |
|
Keyboard + LCD | ||
|
General Features |
Size |
482mm×280mm×44mm |
Temperature Range |
0~45°C (Operation); -20~80°C(Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
