8DVB-S2- 8 IP Gateway /8 RF to IP Converter/RF Gateway

Name: 8*DVB-S2- 8 *IP Gateway /8 RF to IP Converter/RF Gateway
Brand: sochuang
SKU: 116095667
Availability: InStock

Chengdu Sochuang Electronics Co., Ltd.

US$ 1 - 1,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

sochuang

Model Number:

SC-2125

Payment & Shipping

Payment Methods:

Port of Shipment:

Chendu

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name sochuang

Model Number SC-2125

DVB-S2 IP

Overview:

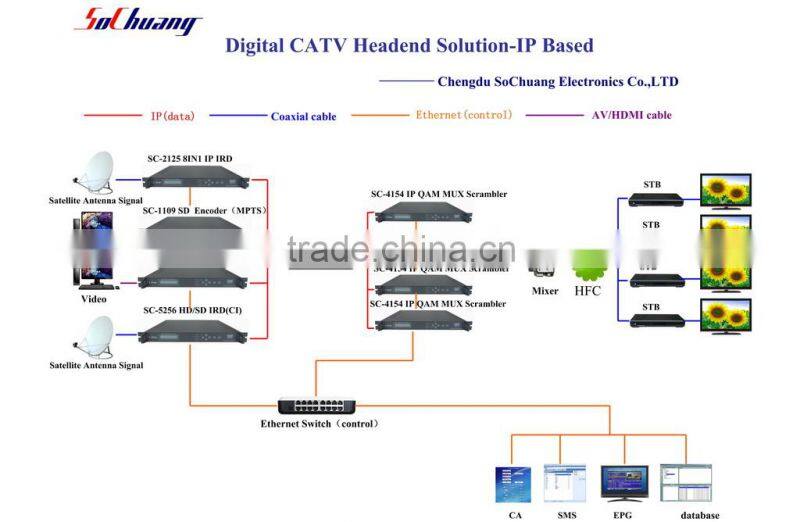

8-in-1 DVB-S IP receiver(IRD ), is one of the main equipment of cable digital head-end, to receive 8 channels DVB-S

signal(RF) and output 8 MPTS (transport stream) IP

Features:

u Comply with DVB standard channel coding;

u PCR Jitter <= 37ns;

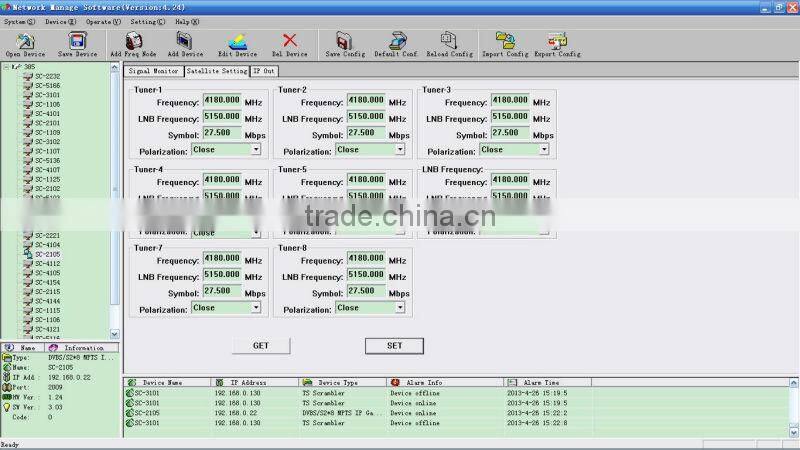

u Local and remote management;

u Support IP output (Gigabit, MPTS/SPTS, Multicast/Unicast ,UDP/IP)

u LCD display in Chinese and English, easy and flexible to operate;

u High reliability design, stable operation;

u NIT insert, PSI table editi;

u 8 port IRD

Technical Specification:

Control		NMS(Ethernet Port), Keyboard+LCD
Demodulation Mode		DVB-S
Symbol rate		1~7Mbaud/s
Frequency		950MHz ~ 2150MHz
Error correction coding		RS Coding 188/204
Input	RF	8 F-type

	IP data insert	RJ-45 10/1000 base TX Ethernet port(NMS)
output	IP	MPTS/SPTS Multicast/Unicast UDP(TS over IP)



General Features	Size	44mm * 482 * 390mm
General Features	Environment	0 ~ 45(Operating);-20 ~ 80(Storage)
