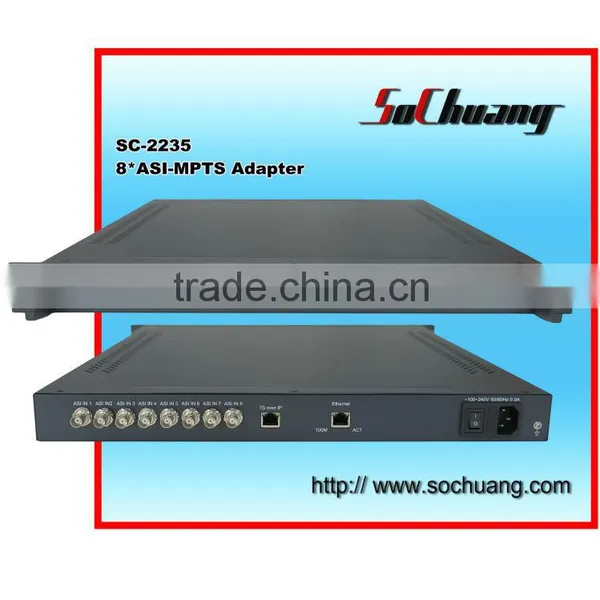

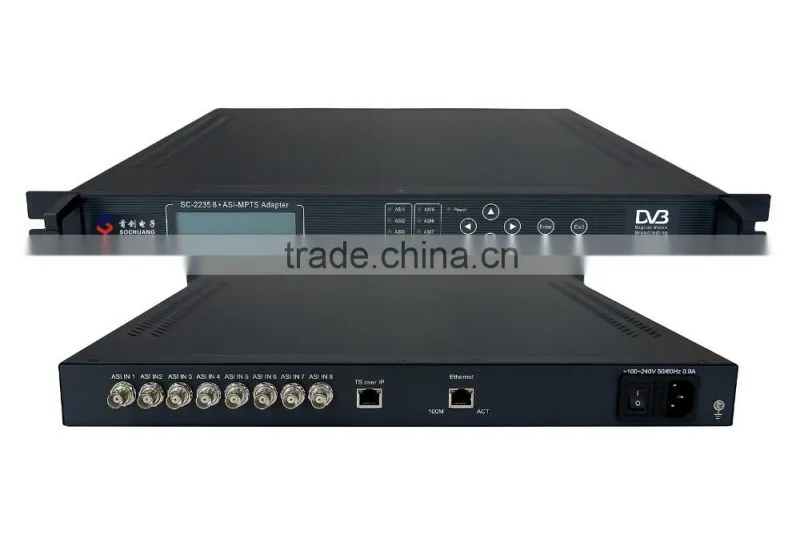

8*ASI to 8*MPTS IP Gateway/Digital IP Converter
Overview

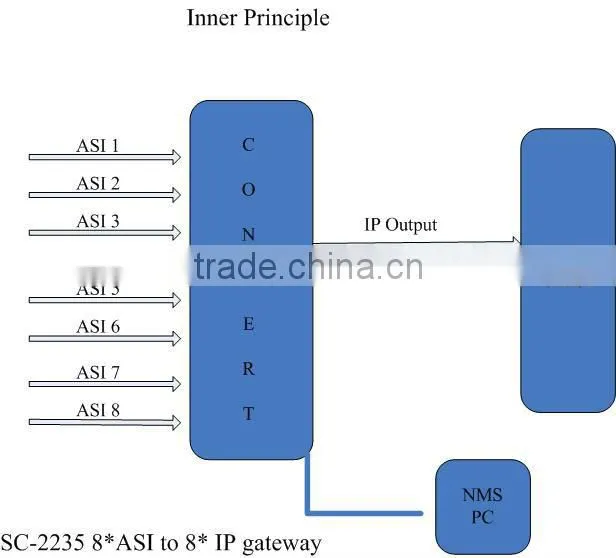

IP to ASI Converter/ASI-IP Gateway Multicast Gigabit/8 Channel MPTS IP out is one of the main equipment of the cable digital TV headend, receiving data from the encoder, multiplexer, DVB gateway, scrambler, video server and other DVB transport stream, transform into IP/UDP streams (TS over IP), or to receive transport stream from the network and transform into ASI stream.
Features
- Full hardware implementation, high efficiency and stability;
- Full-duplex;
- 8MB cache, anti-burst stream;
- Real-time stream monitoring;

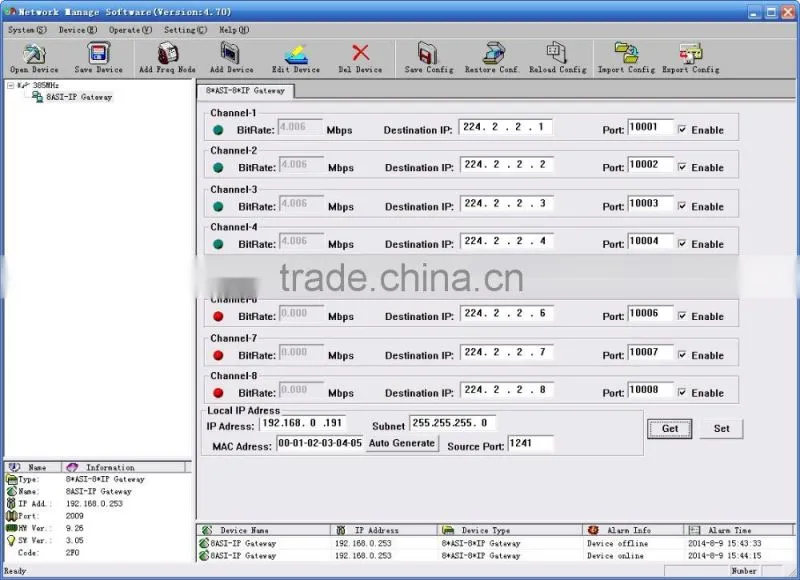

- Local and remote control;
- LCD display in Chinese and English, easy and flexible to operate;
- High reliability, stable.
Technical Specification
Input |
ASI |
8×BNC interface |
Output |
Gigabit IP Port |
UDP/RTP, 8×MPTS/Multicast, TS over IP |
Control |
network RJ-45, 10/100M, base-TX, NMS |
|
Keyboard + LCD | ||
General Features |
Size |
482mm×410mm×44mm |
Temperature Range |
0~45°C(Operation); -20~80°C(Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
