Single/dual/full Color 4M With USB Port 5v Display Controller Card

Name: Single/dual/full Color 4M With USB Port 5v Display Controller Card
Brand: Xuancai
SKU: 116087401
Availability: InStock

US$ 10 - 25 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Xuancai

Model Number:

EX-90

Shenzhen Xuancai Optoelectronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Xuancai

Model Number EX-90

Usage Other, indoor/semi-outdoor/outdoor

Tube Chip Color Other, single/double /full colour, single/dual/full color

Display Function Other, graphics, text, chart,pictures

Pixels 10mm

Screen Dimension single color:256*640; dual color:256*320

Product description

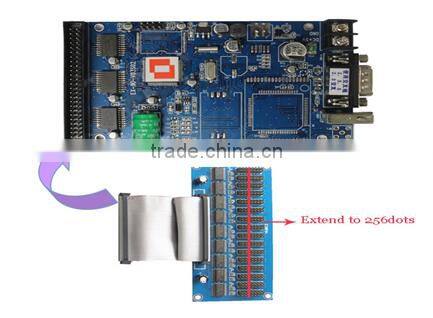

Schematic Diagram

Features

LED display control card

USB port and Serial port micro-small card

Support single and dual color

Support multi programs and languages

Real asynchronous, support small pixel

Hardware decoder, display more fluently

Software easy to operate

For use on a trailer, taxi, bus and bus station, bar, office and shop

Good for car LED display, tabletop LED Display, indoor LED display

Parameter Data

Pixels	Single color: 256640 1281280 Dual color:128640 641280
Communication Mode	Serial port /U-disk
Storage capacity	4M. Support 80pcs programs, and could extend to 200pcs
Port	Supports 256 points higher
Compatible	1/16,1/8,1/4,1/2 scan and static locking single color/dual color LED display; big area single color/dual color LED Display
LED brightness	15 grades for optional
Wireless control	Wireless control, simple and convenient
Working temperature	-40°C~80°C
Language support	Support all major languages in the world today: Chinese, Thai, Arabic, Russian,, English, Spanish, etc.
Working voltage	5V (4.2v-6v)

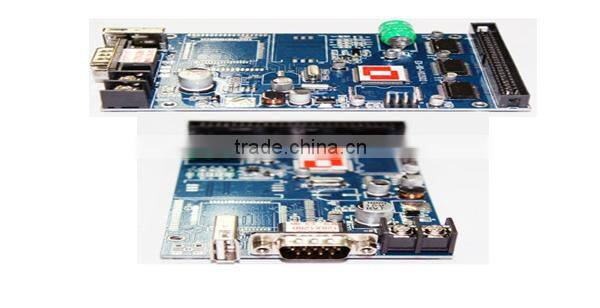

Interface introduction

Advantage

Simple operation	Three steps to make the information shown via LED display
Good heat resistance	Undergo rigorous testing temperature performance, adapt to the temperature -40°C~80°C
Unique filtering process	Reducing the impact of a larger wave of display scanning power to ensure The product temperature adaption.
Anti-jamming design	anti-jamming has been independently developed by Biosled so that the control card can be adapted to any electromagnetic environment.
Good quality Of chip	Import chips to ensure a stronger, more stable system computing power.
