e10 p63 Portable Marking System
POWERFUL, EASY-TO-USE HANDHELD DOT PEEN MARKER

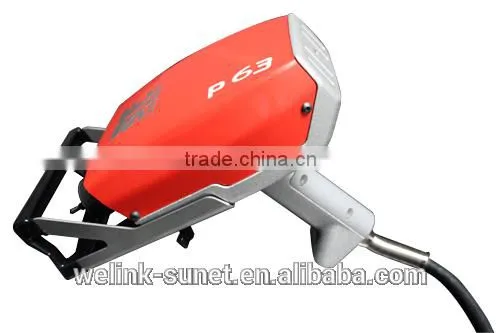

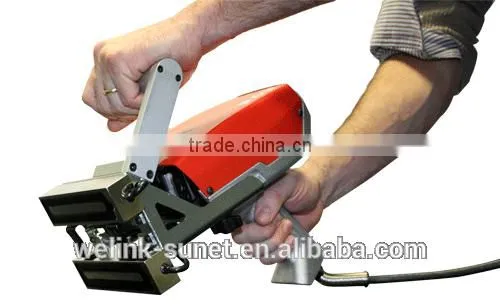

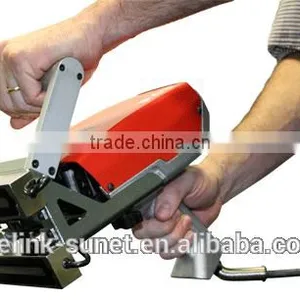

The p63 is a portable, handheld dot peen marker designed for use with the e10 controller. Its lightweight portability makes it ideal for marking large, difficult-to-access parts, and its arched front plate allows for sturdy marking on both flat and cylindrical surfaces. Capable of marking plastics and metals (up to 62HRC), the rugged cast aluminum body, ABS cover, and stainless steel front plate make the p63 a mobile, lightweight, and reliable tool. The marking pin is solenoid actuated and requires minimal maintenance and no air supply system.
| Marking Window | 60 x 25 mm |
| Dimensions | 260 x 139 x 211 mm |
| Weight | 3.2kg (7.5 lbs) |
| Robotic Cable | 7.5m (up to 15m available) |
| Stylus | Carbide 60 mm |
| Stability | V-Shaped Front with Anti-Slip Surface |
| Lighting | LEDs |
| Setup Positioning | Adjustable Memory Front Plate |
ELECTRONIC TECHNICAL FEATURES

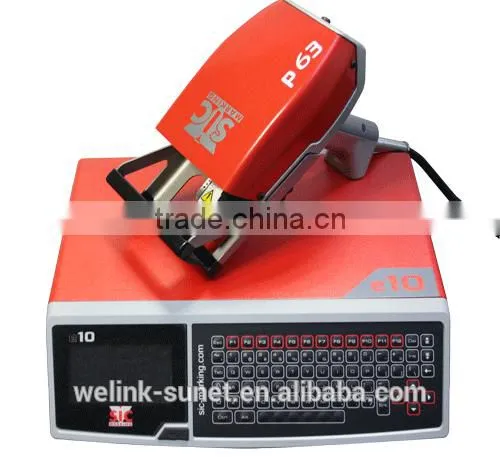

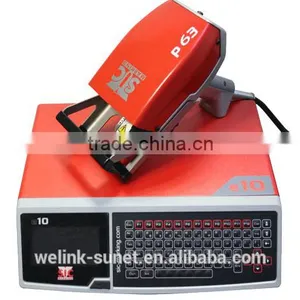

The e10 controller provides its operator with a direct and easy-to-use interface. Its large graphic display and membrane-protected QWERTY keyboard make it perfect for use in industrial environments. Because the control box does not have any openings or ventilation, its interior electrical components are protected from harsh elements such as water, chemicals, dust, and material fragments.
Marking files can be up/downloaded from a PC to the controller using a USB key, or entered and edited directly on the machine. The e10's (included) comprehensive software package allows for linear, angular, radial, and mirror image marking, and an optional booster card can be used for deep marking. An additional 3rd and 4th axis circuit board can be installed to control a motorized column and rotary axis. The software package incorporates self-diagnostic and machine history functions, making it a "smart" user friendly machine.
| Dimensions | 322 x 380 x 112 mm |
| Weight | 5 kg |
| LCD Screen Resolution | 480 x 272 p. |
| Keyboard | QWERTY-Integrated, Membrane Overlay |
| Power | 300 watt |
| Power Supply | Single Phase (85 to 260VAC, 50-60Hz) |
| Number of Controlled Axis | 2 (3 and 4 axis available) |
| Card Options: Booster (deep marking) and Ethernet (communication) | |
| USB Port | Transfer of Marking Files |
| Marking Files | More Than 2000 |
| Memory | 7110 Ko |
| Alphanumeric Characters | Serial Number, Date Coding |
| Logos | Creation from PC software |
| Datamatrix | Up to 348 Characters, 48 x 48 dots |
| Fonts | Arial, Courier, OCR, and OCRA |
| Style | Angular, Radial, Inverse, and Mirror |
| Speed | Up to 5 Characters Per Second |
| Character Size | From 0.1 mm to 99 mm |
| Impact Force | 9 Adjustable Levels |
| Depth | Up to 0.5 mm |
| Resolution Between Dots | 0.05 mm |
| Maximum Stylus Stroke | Up to 8 mm |
| Work Shift Management | 10 shifts |
| Password Protection | 3 Security Levels |
| Historical Function | Password Protected |
| Maintenance Assistance | Auto-Diagnostic Component |
| Languages Available | 17 |
| Ports | RS232, RS422, USBx2, RS485, Profibus, and Ethernet Optional Board |
| Inputs/Outputs | 16 |
| External keyboard input | USB |
| External output | 5V-0.5A and 24V-0.5A |
| Logos | Creation and Transfer Software |
| File Backup on PC | USB Key for Transfer |
| Database Link | Optional |
|
Maintenance kitExtended maintenance kits contain most common replacement parts for repairs or preventive maintenance, extending machine life
Kit maintenance box items:
|
|
Magnetic Clamp (p123)This high powered magnetic clamp facilitates steady marking. |
|
Hook and Balancing System (p123)Hook and balancing system reduces worker fatigue. |
|
Column and base for portable marking systemsThis option enables mounting of a portable marking head into a set station to obtain a column-mounted system
Advantages :
|
|
Cart for portable rangeCart & battery option for e8 and e9 portable marking systems
|
