e10R i113s Scribing Marking Head
SILENT, POWERFUL SCRIBING

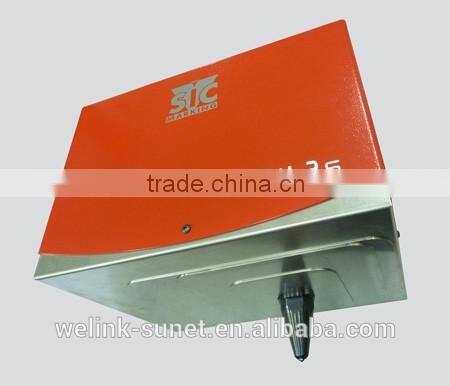

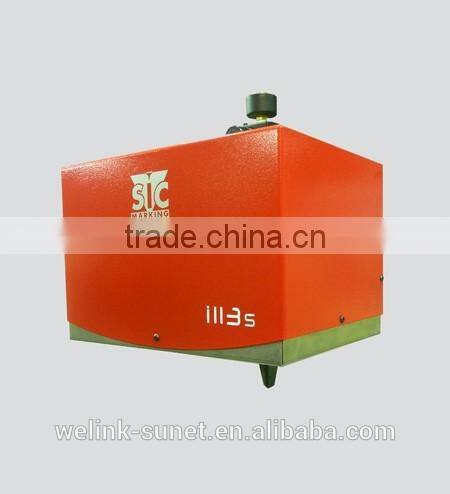

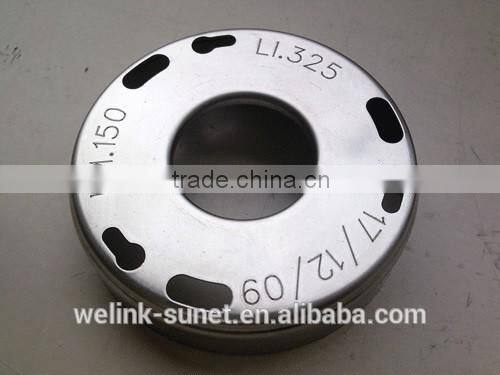

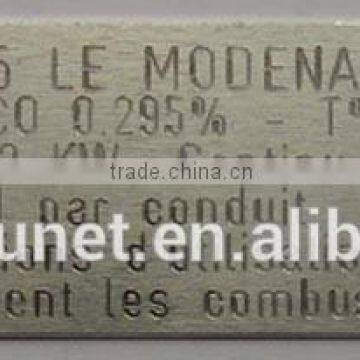

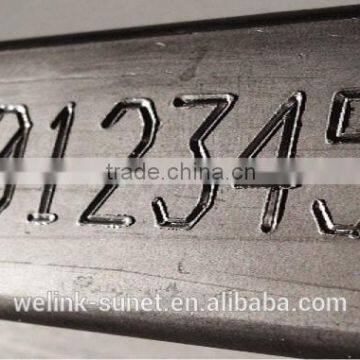

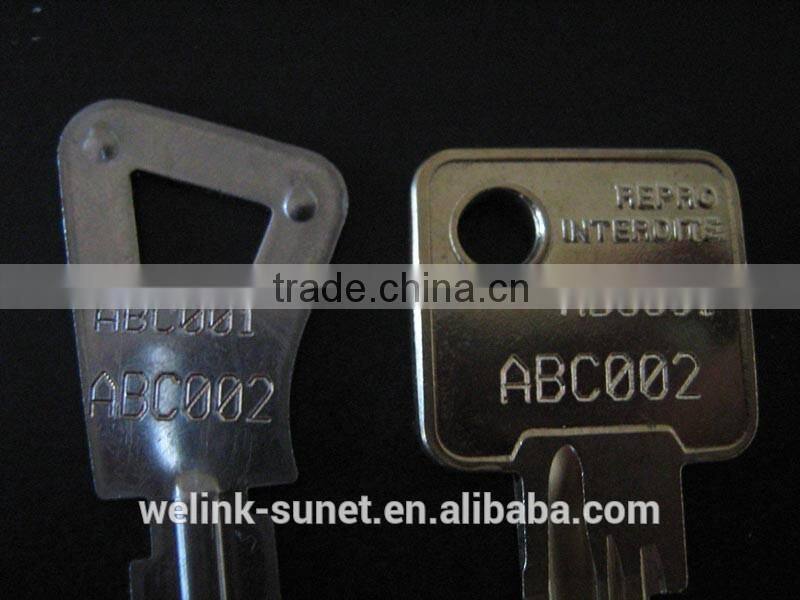

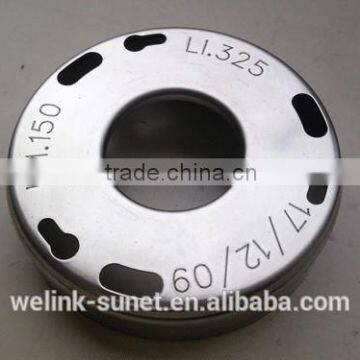

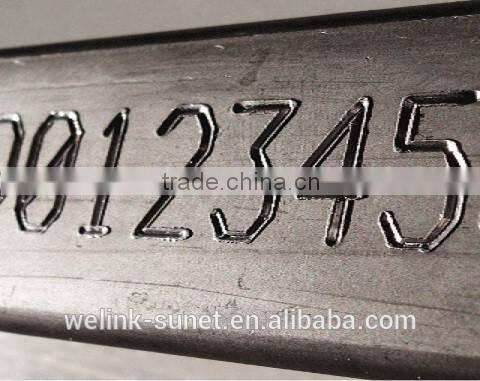

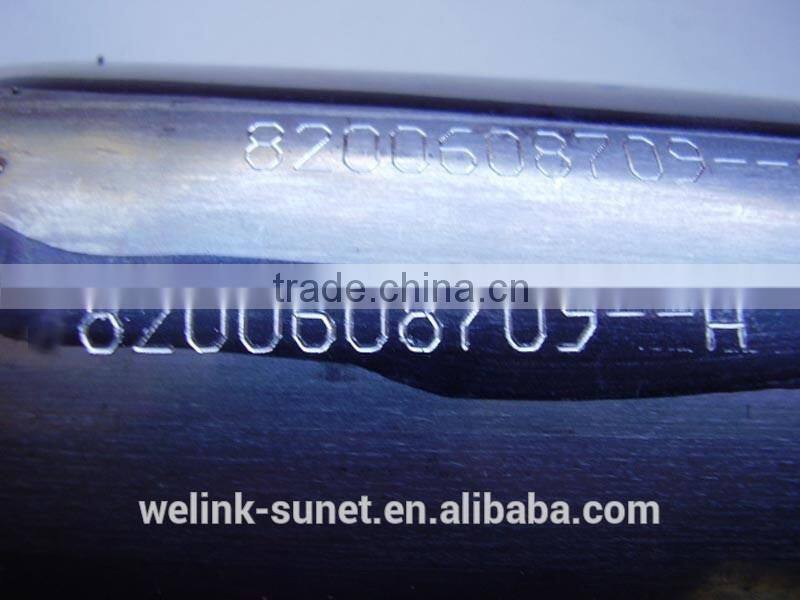

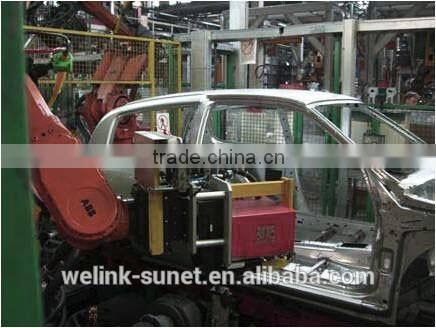

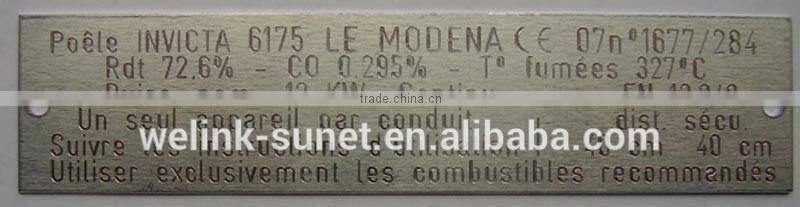

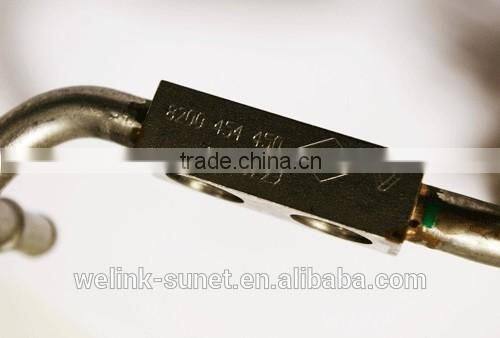

The i113s is a powerful scribing machine that was designed for seamless integration into industrial production. Its virtually silent operation and large marking window allow this high performing machine to maintain a low cost of ownership with no consumables. The robotic cable is removeable for fast and easy replacement.
Its solid metal exterior shields the interior mechanics providing protection from oil, dust, and stray particles. Popular for its simple and straightforward integration, the i113s is perfect for intensive use in industrial environments.
This incredibly efficient scribing machine is delivered complete with integration software, programmable using the membrane-coated keyboard on the e10r controller.
MECHANICAL TECHNICAL FEATURES
| Marking Window | 110 x 60 mm |
| Weight | 17.5 kg |
| Dimensions | 230 x 300 x 365 mm |
| Stylus | Carbide or Diamond 60 mm |
| Connecting Cable | 5m |
| Maximum Working Pressure | 6 Bar |
| Maximum Stylus Stroke | 2mm |
ELECTRONIC TECHNICAL FEATURES
Optimized for flawless integration on automated producted lines, the e10 R controller has a sealed membrane keyboard and 480 x 272 pixels backlit LCD color screen, providing the operator with a direct and easy-to-use interface. It is equipped with an innovative microprocessor that offers immediate start up and smooth browsing, and its comprehensive software suite allows for linear, angular, radial, and mirror image marking. An optional 3rd/4th axis circuit board can be intstalled to control a motorized column and/or rotary axis. Self diagnostic and machine history functions are also included.
The e10r can be mounted vertically in an electrical cabinet with a DIN rail mounting kit (optional). A fully enclosed steel exterior protects the internal components, allowing use in even the most critical industrial environments.
| Dimensions | 112 x 380 x 222 mm |
| Weight | 5 kg |
| LCD Screen Resolution | 480x272 p. |
| Keyboard | QWERTY-Integrated with Membrane Overlay |
| Power | 300 watt |
| Power Supply | Single Phase (85 to 260VAC, 50-60Hz) |
| Number of Controlled Axes | 2 (3 and 4 available as options) |
| Card Options | Booster (deep marking) and Ethernet (communication) |
| USB Port | Transfer of Marking Files |
| Marking Files | More than 2000 |
| Memory | 7110 Ko |
| Alphanumeric Characters | Serial Number, Date Coding |
| Logos | Create and Edit using PC Software |
| Datamatrix | Up to 348 Characters (48 x 48 dots) |
| Fonts | Arial, Courier, OCR, OCRA |
| Style | Angular, Radial, Inverse, Mirror |
| Speed | Up to 5 Characters per Second |
| Character Size | 0.1 mm to 99 mm |
| Impact Force | 9 Adjustable Levels |
| Depth | Up to 0.5 mm |
| Resolution Between Dots | 0.05 mm |
| Maximum Stylus Stroke | Up to 8 mm |
| Work Shift Management | 10 shifts |
| Password Protection | 3 Security Levels |
| Historical Function | Available by Password |
| Maintenance Assistance | Auto-diagnostic Component |
| Languages Available | 17 |
| Ports | RS232, RS422, USBx2, RS485 Profibus, and Ethernet Optional Board |
| Inputs/Outputs | 16 |
| External Keyboard Input | USB |
| External Output | 5V-0.5A and 24V-0.5A |
| Logos | Creation and Transfer Software |
| Files Backup on PC | USB Key for Transfer |
| Database Link | Optional |
|
Column and base for integrated marking systemThis option enables mounting of a portable marking head into a set station to obtain a column-mounted system
Advantages :
|
|
D rotary axis for e10 range (pneumatic version)This option, available for use with all e10 column-mounted dot-peen or scribing systems, allows marking of parts up to 35 kg and with a diameter of up to 250 mm.
|
|
Maintenance kitExtended maintenance kits contain most common replacement parts for repairs or preventive maintenance, extending machine life
Kit maintenance box items:
|
