RAY EAGLE shears are used for the cutting and recovery of metals such as iron sections, pipes, tanks, railway carriages.
Over recent years improvements have been made on the design of RAY EAGLE shears range. The 360° hydraulic rotation, standard on all models, allows accurate positioning of the attachment, and the new jaw design allows metal to fall away very easily.
How to choose right model?
You can choose what you need according to specification sheet as below.
| HYDRAULIC ROTATION 360° | |||||||||

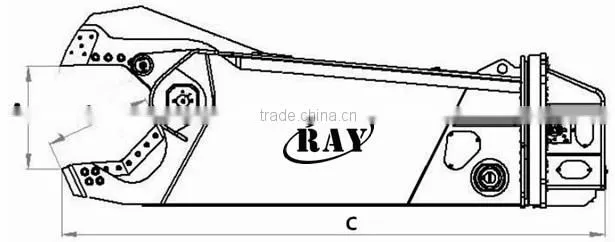

| Model | SH100R | SH130R | SH180R | SH310R | SH410R | SH550R | SH700R | SH900R | |
| |||||||||
| Jaw opening (A) | mm | 375 | 375 | 445 | 565 | 670 | 760 | 830 | 965 |
| Jaw depth(B) | mm | 395 | 395 | 525 | 630 | 720 | 780 | 840 | 930 |
| Length(C) | mm | 2000 | 2100 | 2700 | 3300 | 3700 | 3950 | 4300 | 4600 |
| Excavator Weight with bucket place | t | 10-12 | 13-17 | 18-27 | 28-39 | 39-50 | 51-65 | 70-90 | 91-110 |
| Excavator Weight with stick place | t | 7-10 | 8-12 | 14-18 | 20-28 | 28-39 | 39-45 | 45-60 | 60-80 |
| Tool Weight | kg | 710 | 1220 | 2100 | 3300 | 4700 | 5750 | 7700 | 10100 |
| Hydraulic working pressure | bar | 250-300 | 250-300 | 320-350 | 320-350 | 320-350 | 320-350 | 320-350 | 320-350 |
| Oil flow | l/min | 90-110 | 90-110 | 150-200 | 200-250 | 250-300 | 275-375 | 500-600 | 600-700 |
| Max hydraulic motor oil pressure | bar | 190-200 | 90-100 | 90-100 | 100-115 | 100-115 | 100-115 | 140-150 | 170-190 |
| max motor oil flow | l/min | 10-15 | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 | 50-60 | 55-65 |
| Speed valve | Y | Y | Y | Y | Y | Y | Y | Y | |
| Interchangeable spare parts | Y | Y | Y | Y | Y | Y | Y | Y | |
| Automatic greasing system | N | N | N | N | N | N | Y | Y | |
You can also give us information as below
l Give me model of your excavator
l Material you want to cut(shape,size,strength grade,etc)

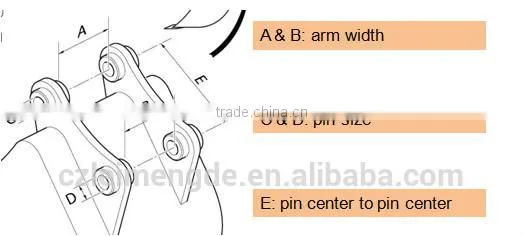

l Arm width,pin size,pin center to center
Why should you choose our EAGLE Shear?

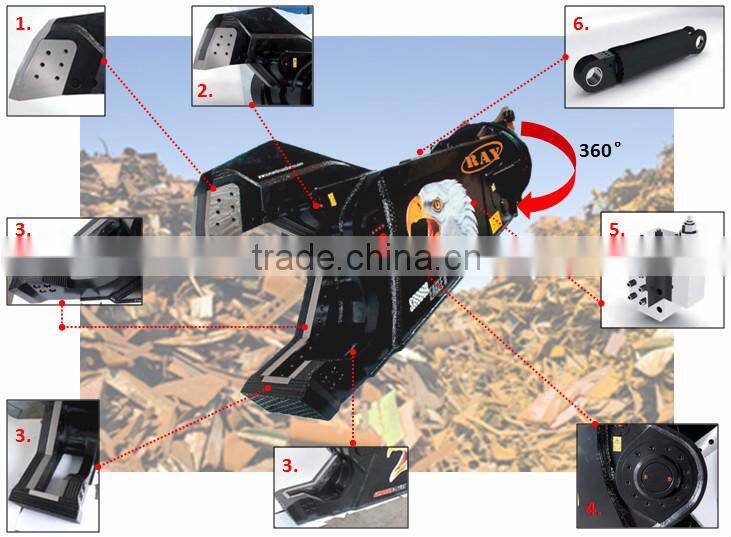

Product Features
1. New Pearcing Tip:Fast replacement,Eliminate lengthy rebuilding of the nose.
2. Double Guide:For the movable jaw, perfect alignment.
3. New Jaw design:
l high strength alloy steel in Germany.Increase cutting capacity.
l shape as eagle beak to prevent material falling out and reduce stresses on the jaws
l Each main blade can be turned effectively 3 times. easier removal and installation
4. Central Pin Adjustment Kit:Ensure perfect cutting. The pin can be removed for maintenance of all related parts while fully protected.
5. Special Speed Valve:Reduce cycle times,egenerating power.Protection for the shear eliminating pressure peaks
6. All New Cylinders:Increased size for maximum power of 20%.Forged cylinder rod for a better functionality.Reversed cylinder installation for total rod protection
Why should you choose our company?
RAYMOND is a factory with authorized Imp.&Exp. right which including two companies, Raymond Precision Machinery Co.,Ltd and Raymond International Trading Co.,Ltd.
l $36,000 of trade assurance we have,protect your business.Our total Trade Assurance Limit is $36,000 now.
l 13 years experience in producing and servicing
l We will attend the CTT 2015, the 16th International show of construction equipment and technology held in Moscow, Russian Federation on June 2,2015.
FAQ
1.What’s your payment terms?
l Trade terms:T/T,L/C,cash
2.How long is your warranty?
warranty:one year for cylinder,3 months for wear resistant steel plate
