Home > Computer Products > Keyboard > Mechanical Keyboard > Full Funtionalities IP65 With Trackball Integrated Metal Keyboard
Full Funtionalities IP65 With Trackball Integrated Metal Keyboard
US$ 199 - 299
MOQ: 1 Piece
Key Specifications
Get Latest Price
Application:
Desktop
Style:
Standard, Other, Standard, 79 keys
Interface Type:
USB
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen or HongKong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Integrated Meta Keyboard With Trackball for KioskNegotiableMOQ: 1 Piece -
Compact Format Vandal Proof Metal Keypad With Touch PadNegotiableMOQ: 1 Set
-
Compact Format Vandal Proof Metal Keyboard With TrackballNegotiableMOQ: 1 Set
-
Vandalism Proof Kiosk Keyboards With TrackballNegotiableMOQ: 1 Set
-
Compact Format Vandal Proof Terminal Stainless Steel KeyboardsNegotiableMOQ: 1 Set
Application
Desktop
Style
Standard, Other, Standard, 79 keys
Interface Type
USB
Brand Name
Key-Tek
Model Number
K-TEK-A361-MTB-FN

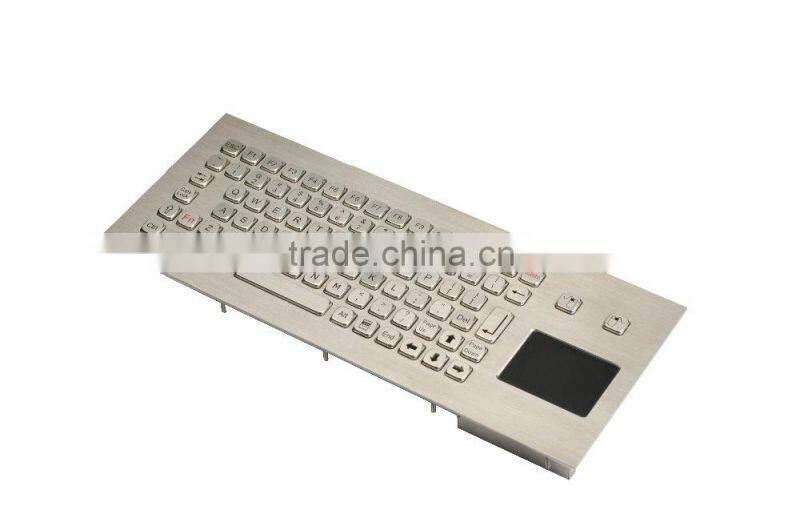

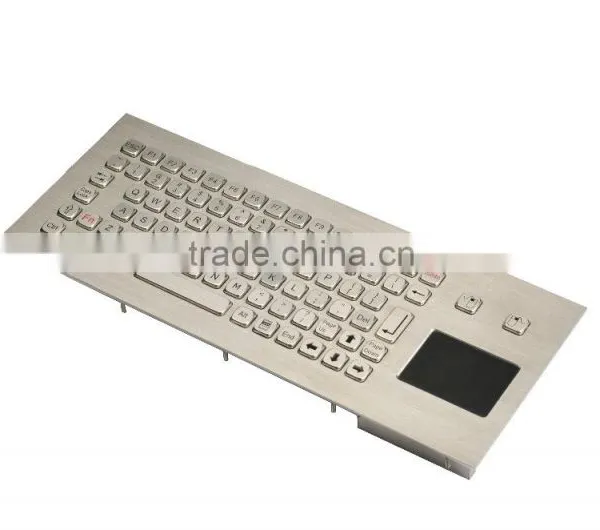

Full funtionalities IP65 with trackball integrated Metal Keyboard
79 keys compact format vandal proof IP65 metal keyboard with integrated 38mm stainless steel tracker ball, function keys F1...F12 are on the top line for easy operation, with carbon-on-gold key switch technology with long stroke 2.0mm, with top panel mounting solution.
APPLICATION
- This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, airports, railway stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
MAIN FEATURES
- Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers.
- Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
- Waterproof execution according to degree of protection IP65 from the panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.
- The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise.With firm tactile perception for comfortable operation
- Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
- Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
- Ease of customizing with multiple languages, to accommodate foreign or custom variants.
- Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.
MECHANICAL DATA
- Key: 79 keys, super quality brushed stainless steel
- Key top style: Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
- Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.
- Key travel: 2.0mm
- Tracker ball: 38mm (1.5') diameter, Resolution 440 edges/revolution.
- Black Phenolic Trackballs are available.
- Switch life: more than 10 million of operations.
- Actuation Force: 0.6N+/-0.1N for key 14.0mm x 14.0mm (pressure point)
- 1.2N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
- Front Plate: Super quality brushed stainless steel
- Lettering: Sunk laser legends & characters in high quality ink
- Actuator/keys materials: stainless steel
- G.W. 2.0KGs
- Dimensions:361.0mm x 145.0mm (front panel) ,343.0mmx 125.0mm (back panel)
ELECTRICAL DATA
- Supply Voltage: +5V DC +/-5%
- Current Rating: appr. 20m
- EMC Standard: It is compliance with the council EMC directive 89/336/EEC
- EN55022: 1988+A1:2000+A2:2003
- EN55024: 1988+A1:2001+A2:2003
- Emission: EN 50081-1
- Immunity: EN 50082-1
- Lifespan> 5 years
- Switch Contact Material:Carbon-on-Gold key switch technology
- Interface: PS2, USB available.
- OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/win7, Linux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILIT
- Operating temperature:-20oC to +60oC
- Storage temperature: -30oC to +70oC
- Operating RH: 30-90%
- Atmospheric pressure: 60-106Kpa.
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40oC: 21 days IEC 60512-6
- Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
- RoHS Compliant, CE and FCC
- Protection Level: IP65(front panel)
- Vandal resistant IK09
- Key Lifespan >10 million actuations
- MTBF >50000H
- MTTR <30min
