Compact Format Vandal Proof Metal Keypad With Touch Pad

Compact Format Vandal Proof Metal Keypad With Touch Pad thumbnail-1
Compact Format Vandal Proof Metal Keypad With Touch Pad photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Desktop
Type:
Wired
Contact Supplier Request Quote Chat Now
Key Technology (China) Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Desktop
Type Wired
Style Standard, Other, Standard, 66 keys
Interface Type PS/2, USB
Brand Name Key-Tek
Model Number K-TEK-A343TP
Place of Origin Guangdong, China

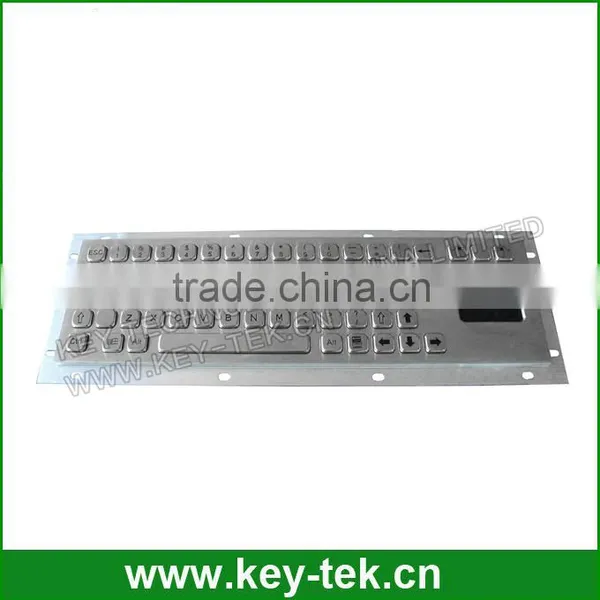

66 keys compact format vandal proof IP65 metal keypad with integrated ruggedized touchpad, with carbon-on-gold key switch technology with long stroke 2.0mm, with rear panel mounting solution.



MAIN FEATURE

  • Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers.Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
  • Waterproof execution according to degree of protection IP65 from the panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.
  • The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
  • Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
  • Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
  • Ease of customizing with multiple languages, to accommodate foreign or custom variants.
  • Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.

MECHANICAL DATA

  • Key: 66 tactile feel keys in super quality brushed stainless steel
  • Key top style:Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
  • Touchpad cover: Composite
  • More than Lifetime 10 million strokes
  • Mutual Capacitance sensing
  • - X/Y position sensing resolution: 40 counts/mm
  • - X/Y position reporting: Relative
  • - Output - Tracking speed: Maximum 1,016 m/sec
  • - Power supply voltage: 5 VDC ±0.25V
  • - Current rating (active mode): 17 mA
  • Front Plate: Super quality brushed stainless steel
  • Key travel: 2.0mm
  • Switch Life: more than 10 million operations.
  • Actuation Force: 0.6 N +/-0.1N for key 14.0mm x 14.0mm(pressure point), 1.2 N +/-0.1N for key 14.0mm x 28.0mm(pressure point)
  • Lettering: Sunk laser legends & characters in high quality ink
  • Actuator/keys materials: stainless steel
  • G.W.: 1.70KGs
  • Dimensions: 343.0mm x 105.0mm(front panel), 367.0mm x 129.0mm(back panel)

ELECTRICAL DATA

  • Supply Voltage: +5V DC +/-5%
  • Current Rating: appr. 20mA
  • EMC Standard: It is compliance with the council EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003 EN55024: 1988+A1:2001+A2:2003
  • Emission: EN 50081-1
  • Immunity: EN 50082-1
  • Lifespan> 5 years
  • Contact Material: Carbon / Gold
  • Interface: PS2, USB available.
  • OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/win7, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

  • Operating temperature:-20oC to +60oC
  • Storage temperature: -30oC to +70oC
  • Operating RH: 30-90%
  • Atmospheric pressure: 60-106Kpa
  • Saline mist: 96 hours, IEC 60512-6
  • Damp heat test at +40oC: 21 days, IEC 60512-6
  • Dry heat test at +85oC: 10 days, IEC 60512-6





RELIABILITY



  • RoHS Compliant, CE and FCC
  • Protection Level: IP65(front panel)
  • Vandal resistant IK09
  • Key Lifespan >3 million actuations
  • Touchpad lifespan > 10 million of times
  • MTBF >50000H
  • MTTR <30min
Packaging & Shipping

Compact Format Vandal Proof Metal Keypad With Touch pad

Company Information

Compact Format Vandal Proof Metal Keypad With Touch pad

Warranty

Compact Format Vandal Proof Metal Keypad With Touch pad

Certifications

Compact Format Vandal Proof Metal Keypad With Touch pad
