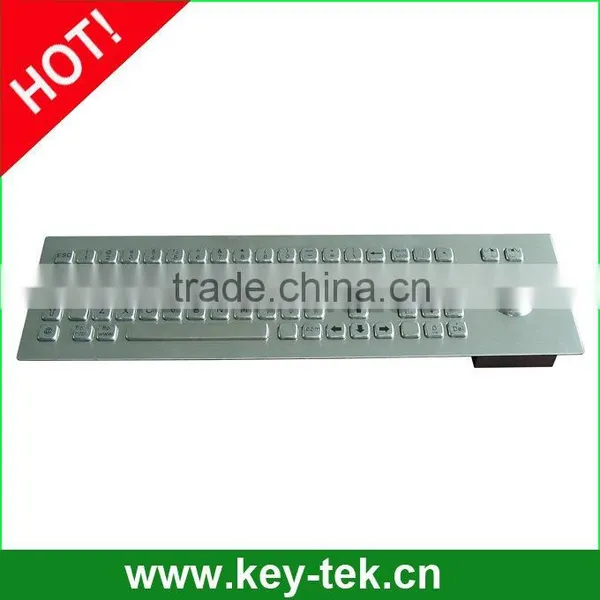

Integrated Meta Keyboard With Trackball for Kiosk

81 keys compact format vandal proof IP65 stainless steel keyboards

with integrated numeric keypad and 38mm stainless steel trackball, combo with carbon-on-gold key switch technology with long stroke 2.0mm,top panel mounting solution.

APPLICATION

• This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

MAIN FEATURE

• Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers.
• Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
• Waterproof execution according to degree of protection IP65 from the panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.
• The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
• Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
• Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
• Ease of customizing with multiple languages, to accommodate foreign or custom variants.
• Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.
• The numeric keypad integrated between keyboard and trackball can be with encryption module supporting DES/TDES for bank usage of CDM/ATM.

• Key: 81 keys, super quality brushed stainless steel
• Key top style: Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
• Key Size:14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.
• Key travel: 2.00mm
• Tracker ball: 38mm (1.5') diameter, Resolution 440 edges/revolution. Black phenolic trackballs are available.
• Switch life: more than 10 million of operations.
• Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
• Front Plate: Super quality brushed stainless steel
• Lettering: Sunk laser legends & characters in high quality ink
• Actuator/keys materials: stainless steel
• G.W.: 1.90KGs
• Dimensions: 400.0mm x 124.0mm (front panel), 392.0mm x 110.0mm (back panel)

ELECTRICAL DATA

• Supply Voltage: +5V DC +/-5%
• Current Rating: appr. 30mA
• EMC Standard:It is compliance with the council EMC directive 89/336/EEC
• EN55022:1988+A1:2000+A2:2003
• EN55024: 1988+A1:2001+A2:2003
• Emission:EN 50081-1
• Immunity: EN 50082-1
• Lifespan>5 years
• Switch Contact Material: Carbon-on-Gold key switch technology PCB.
• Interface: PS2, USB available, RS232 for EPP.
• OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/win7, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

• Operating temperature:-20^oC to +60^oC
• Storage temperature: -30^oC to +70^oC
• Operating RH: 30-90%
• Atmospheric pressure: 60-106Kpa.
• Saline mist: 96 hours, IEC 60512-6
• Damp heat test at + 40^oC: 21 days, IEC 60512-6
• Dry heat test at + 85^oC: 10 days, IEC 60512-6

• RoHS Compliant, CE and FCC
• Protection Level: IP65(front panel)
• Vandal resistant IK09
• Key Lifespan >10 million actuations
• MTBF >50000H
• MTTR <30min
