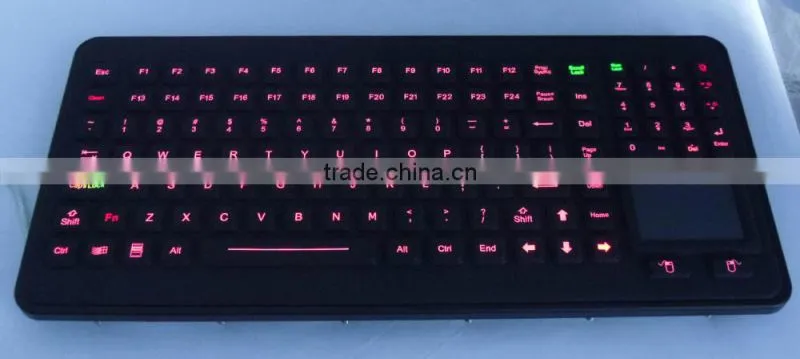

IP65 Rugged backlight industrial Medical Keyboard With Touchpad
Description:
1. IP65 dynamic rated 120 keys ruggedized industrial silicone rubber Hygienic keyboard with full keyboard functionalities with
120 keys,
2. integrated numeric keypad and 24 FN keys (F1, F2...F11, F12...F23, F24),
3. sealed & ruggedized tough touchpad,
4. with industrial PCB with carbon-on-gold key switch technology with stroke 1.50mm with tactile feeling for fast and accurate
data input without any noise
5. with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment,
6.Clean key for easy cleaning, top panel mounted solutions with ruggedized robust polycarbonate frame with mounting studs.
7. adjustable industrial backlight optional, military level optional.
Special Features:
1. keyboard with NVIS-compliant red adjustable backlighting, while NVIS backlighting makes this 2. keyboard ideal for aviation
or vehicle applications where night vision goggles are necessary.
3. Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
4. The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease
and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental
contaminants and heavy industrial use.
5. Clean key-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with
minimal downtime-User is notified of ‘lock down mode’ by brightly lit CLEAN KEY
6. Special durable-coating for excellent mechanical and chemical resistance
7. With firm tactile key feel, key travel 1.50mm key travel.
8. Integrated touchpad.
9.Integrated numeric keypad.
10. 24 Function keys provide more shortcut operation.
11. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
12. PS/2, USB connection cables that plug directly into computer like keyboard operations.
13. Enclosure: industrial silicone, stainless steel plate optional.
14. Low-profile keys for easy cleaning
Applications:
This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric
pad allows for easy data entry.
A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
C: MILITARY: Army, Navy, Air force
D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing
environments, warehouses
E: OTHER INDUSTRIES
Specification
MECHANICAL DATA | |
Key |
120 keys |
Key top style |
Protuberant rectangular keys with tactile feeling. |
Key Size |
12.0mm X 13.0mm for normal keys, |
Key travel |
1.5mm |
Actuation Force |
0.8 N+/-0.1N for normal key with 12.0mm x 13.0mm(pressure point), 1.6 N+/-0.1N for key 23.4mm x 13.0mm (pressure point) |
X/Y position sensing resolution |
40 counts/mm |
X/Y position reporting |
Relative |
Switch life |
more than 10 million of operations |
Output(self-detectable depending on cable) |
PS2 or USB |
Tracking speed |
Maximum 1,016 m/sec |
Cable Length |
2.5m |
G.W. |
1.50KGs |
Dimensions: |
379.0mm x 169.0mm (L x W) |
ELECTRICAL DATA | |
Supply Voltage |
5 VDC ±0.25V |
Current Rating |
17 mA |
|
EMC Standard: |
IEC61000-4-2:2008; IEC61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004 |
EMI: |
EN55022: 2010 |
EMS: |
EN55024: 2010 |
Immunity: |
EN 50082-1 |
Lifespan |
> 3 years |
Switch Contact Material: |
Carbon-on-Gold key switch technology with gold PCB. |
Interface: |
PS2, USB available. |
OS: |
All windows, Linux, Unix, Mac OSX |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature |
-20oC to +60oC(industrial level);-40oC to +85oC(military level) |
Storage temperature |
-30oC to +70oC(industrial level);-55oC to +150oC(military level) |
Operating RH |
100% |
Atmospheric pressure |
60-106Kpa |
Shock |
3x11 ms pulses of 50g on each of 3 axes |
Vibration |
POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours |
Printed Circuit Board |
94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V |
RELIABILITY | |
Certification |
RoHS Compliant, CE and FCC,IP65, ESD |
Protection Level |
IP65(front panel);NEMA 6P |
Key Lifespan |
>10 million actuations |
MTBF |
>50000H |
MTTR |
<30min |
