Silicone Industrial Medical Keyboard With Washable Optical Trackball

Silicone Industrial Medical Keyboard With Washable Optical Trackball photo-1

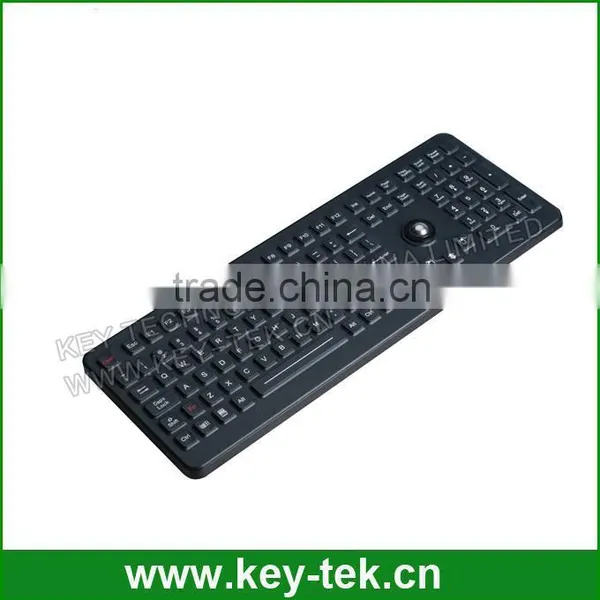

Silicone Industrial Medical Keyboard With Washable Optical Trackball photo-2

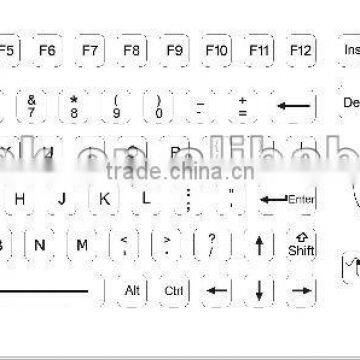

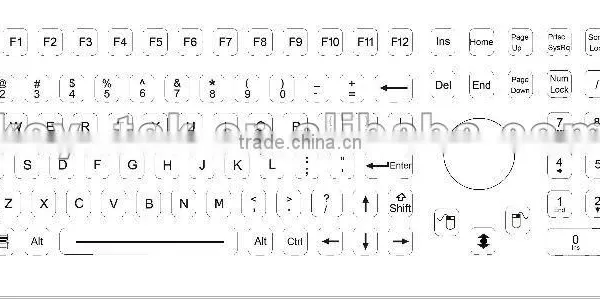

Silicone Industrial Medical Keyboard With Washable Optical Trackball photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, Industrial
Type:
Wired
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Products Status Stock
Application Other, Industrial
Type Wired
Style Slim, Standard, Other
Interface Type PS/2, USB
Brand Name IKB-MKB
Model Number K-TEK-M396-OTB-KP-FN-DT
Place of Origin Guangdong, China

Silicone Industrial medical Keyboard With Washable Optical Trackball



K-TEK-M396-OTB-KP-FN-DT



Description:
1. IP68 dynamic sealed & ruggedized industrial silicone rubber industrial keyboard with full keyboard functionalities
2. IP68 dynamic rated 16.0mm optical trackball module with 800 DPI resolutions for fast and accurate cursor position with
extremely smooth operation
3. 12 function keys and industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely
good tactile feeling for fast and accurate data input without any noise
4. with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment
5. Clean key for easy cleaning, mountable desk top version with robust polycarbonate case
6. adjustable industrial backlight optional.
7. military level optional .
Special Features:
1.keyboard with NVIS-compliant red adjustable backlighting optional, while NVIS backlighting makes this keyboard ideal for
aviation or vehicle applications where night vision goggles are necessary.
2. Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
3. The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt,
grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental
contaminants and heavy industrial use.
4. Special durable-coating for excellent mechanical and chemical resistance
5. Clean key
--Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal
downtime
--User is notified of ‘lock down mode’ by brightly lit CLEAN KEY
6. With firm tactile key feel, key travel 1.5mm key travel.
7. Integrated numeric keypad and  IP68 washable 16.0mm trackball module
8. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
9. PS/2, USB connection cables that plug directly into computer like keyboard operations.
10. Enclosure: industrial silicone, mountable desk top version with robust polycarbonate case
Applications:
This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its
numeric pad allows for easy data entry.
A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
C: MILITARY: Army, Navy, Air force
D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing
environments, warehouses
E: OTHER INDUSTRIES
Specification

MECHANICAL DATA

Key

106keys

Key top style

Protuberant rectangular keys with tactile feeling.

Key Size

12.0mm X 13.0mm for normal keys,
23.4mm x 13.0mm for enter key
68.0mm x 13.0mm for space bar key.


Key travel

1.5mm

Actuation Force

0.8 N+/-0.1N forkey with 12.0mm x 13.0mm(pressure point),
1.6 N+/-0.1N for key 23.4mm x 13.0mm (pressure point)


X/Y position sensing resolution

40 counts/mm

X/Y position reporting

Relative

Switch life

more than 10 million of operations

Output(self-detectable depending on cable)

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Cable Length

2.5m

G.W.

1.50KGs

Dimensions:

396.0mm x 150.0mm x 23.0mm (L x W x H)



ELECTRICAL DATA

Supply Voltage

5 VDC ±0.25V

Current Rating

20mA


EMC Standard:

IEC61000-4-2:2008; IEC61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004

EMI:

EN55022: 2010

EMS:

EN55024: 2010

Immunity:

EN 50082-1

Lifespan

> 3 years

Switch Contact Material:

Carbon-on-Gold key switch technology with gold PCB.

Interface:

PS2, USB available.

OS:

All windows, Linux, Unix, Mac OSX



ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20oC to +60oC(industrial level);-40oC to +85oC(military level)

Storage temperature

-30oC to +70oC(industrial level);-55oC to +150oC(military level)

Operating RH

100%

Atmospheric pressure

60-106Kpa

Shock

3x11 ms pulses of 50g on each of 3 axes

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
Flammability

Printed Circuit Board

94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V



RELIABILITY

Certification

RoHS Compliant, CE and FCC,IP68 ESD

Protection Level

IP68;NEMA 6P

Key Lifespan

>10 million actuations

MTBF

>50000H

MTTR

<30min





 Silicone Industrial medical Keyboard With Washable Optical Trackball


Silicone Industrial medical Keyboard With Washable Optical TrackballSilicone Industrial medical Keyboard With Washable Optical Trackball
