38mm IP65 Laser Trackball Module

Name: 38mm IP65 Laser Trackball Module
Brand: Key-Tek
SKU: 116012349

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Key-Tek

Model Number:

K-TEK-38-LTB

Key Technology (China) Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shen Zhen and HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Key-Tek

Model Number K-TEK-38-LTB

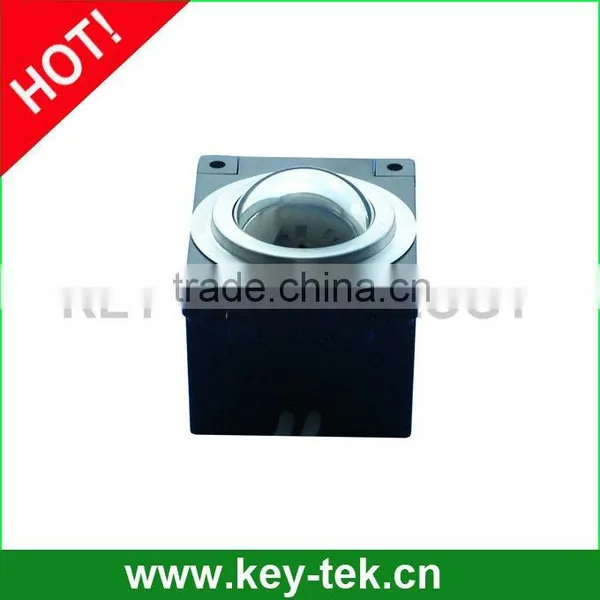

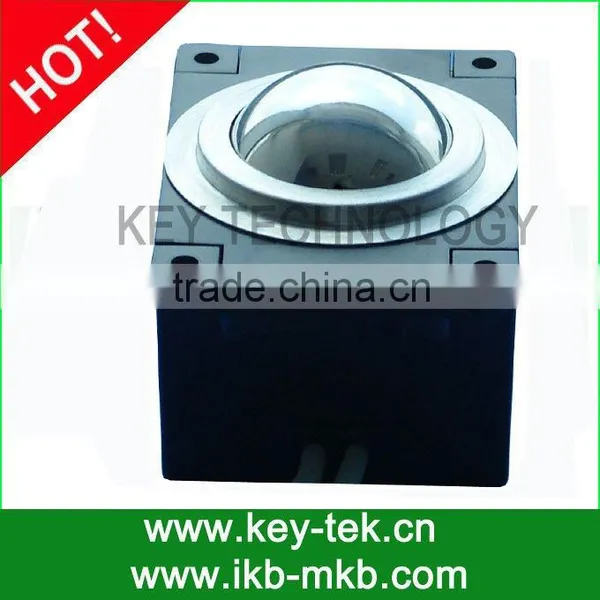

38.0mm (1.5') vandal proof IP65 (dynamic) LASER trackball module with high resolution (+1200 dpi) and reliable positioning data.

MAIN FEATURE

Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
Available 40mm, 38mm, 25mm, 22mm, 19mm and 16mm diameter stainless steel or hard phenolic resin ball for smooth, durable operation and precise cursor positioning.
Rate sensitive dynamic resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly. .

TECHNICAL SPECIFICATION

ITEM		SPECIFICATION
Mechanical Data	Ball diameter	38mm/1.50' (19mm, 25mm, 36mm 40mm also available)
	Track ball lifespan	> 5 Mio revolutions
	Actuation Force	1.0N to 3.0N
	Dimension	38 .1 mm diameter for ball, 57.0mm x 74.0mm (front panel)
Interface	PS2, USB are available, Y type cable with ports of PS2 and USB
Electrical	Power supply	5V DC+ 10%, keyboard interface
	Protection level	IP65 dynamic, NEMA3
	EMC Standard	EN55022(B)
	Power consuming	≤1.00W(dynamic)
	Power consuming	≤0.2W(static)
Environmental	Operating temperature	-20ºC~+ 60º C
	Storage temperature	- 30ºC~+ 70ºC
	Operating RH	30~90%
	Atmospheric pressure	60106Kpa.
Reliable	Certificates	RoHS compliant, CE and FCC certified.
	MTBF	>20000h
	MTTR	< 30min
OS	DOS/Windows95/98/NT/ME/2000/2003/XP/Vista,WIN7, Linux, Unix, Mac OSX
Packing Details	Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
