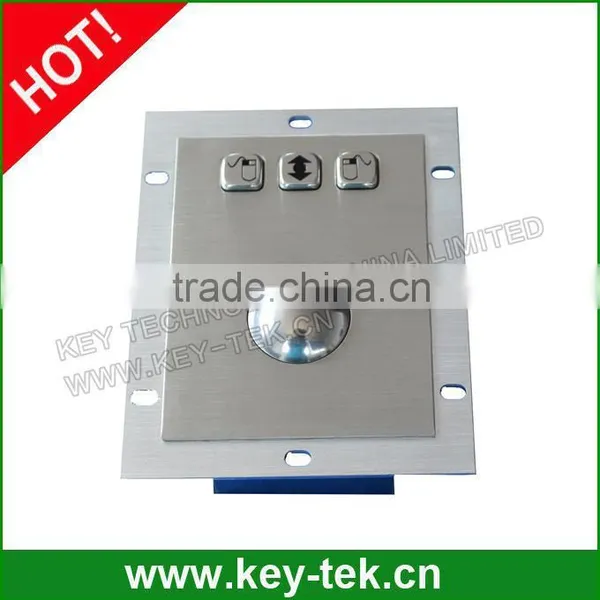

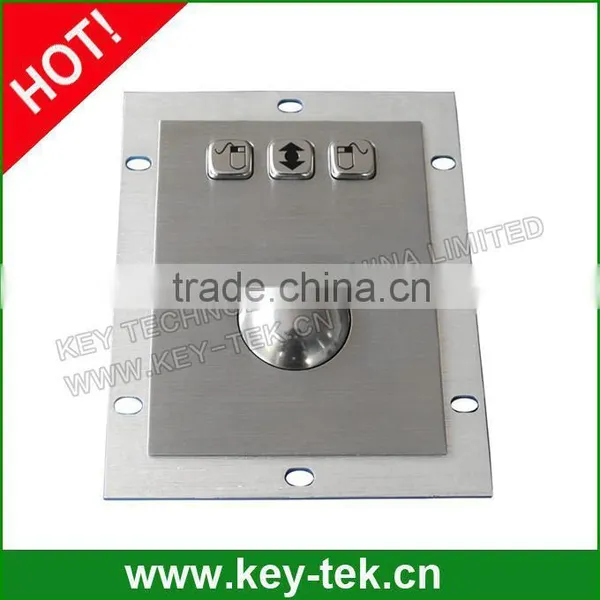

IP68 Dynamic Washable Sealed Metal Laser Trackball

Name: IP68 Dynamic Washable Sealed Metal Laser Trackball
Brand: Key-Tek
SKU: 116012433

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Key-Tek

Model Number:

K-TEK-A83-38-LTB

Key Technology (China) Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen and HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Key-Tek

Model Number K-TEK-A83-38-LTB

MAIN FEATURE

Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
All Metal Mechanicals provide for rugged, smooth, long lasting operation.
Laser Encoders provide fast, high resolution more than 1000DPI, reliable positioning data.
Available 38mm diameter Stainless steel for smooth, durable operation and precise cursor positioning.
Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.

TECHNICAL SPECIFICATION

ITEM		SPECIFICATION
Mechanical	Key	2 keys, quality brushed stainless steel
	Key top style	Protuberant Rectangular Keys,
	Front Plate	Quality brushed stainless steel
	Key Travel	2.0mm
	Ball diameter	38.1mm/1.50' (19mm, 25mm, 36mm 40mm also available soon)
	Key switch lifespan	more than 10 Mio actuations
	Track ball lifespan	> 5 Mio revolutions
	Back Metal Cover	Rear side integrated electronics protected by a metal cover
	Actuation Force	0.6 N to 1.2 N
	Mounting Rack	Aluminum alloy
	Dimension	Dimensions with 38.0mm track ball, Front plate (W x H): 83.0 x 110.0mm Overall (W x H x D): 107.0 x 134.0 x 40.7mm
Interface	PS2, USB are available, Y type cable with ports of PS2 and USB
Electrical	Power supply	5V DC+ 10%, keyboard interface
	Protection level	IP65 (front panel), NEMA3
	EMC Standard	EN55022(B)
	Power consuming	≤1.0W(dynamic)
	Power consuming	≤0.2W(static)
	Contact Material	Gold/Carbon
Environmental	Operating temperature	-20°C-+ 60°C
	Storage temperature	- 30°C-+ 70°C
	Operating RH	30-90%
	Atmospheric pressure	60-106Kpa.
Reliable	Certificates	RoHS compliant, CE and FCC certified. IP65 front panel.
	MTBF	>20000h
	MTTR	< 30min
OS	OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista/win7, Linux, Unix, Mac OS9 / OSX
Packing Details	Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
