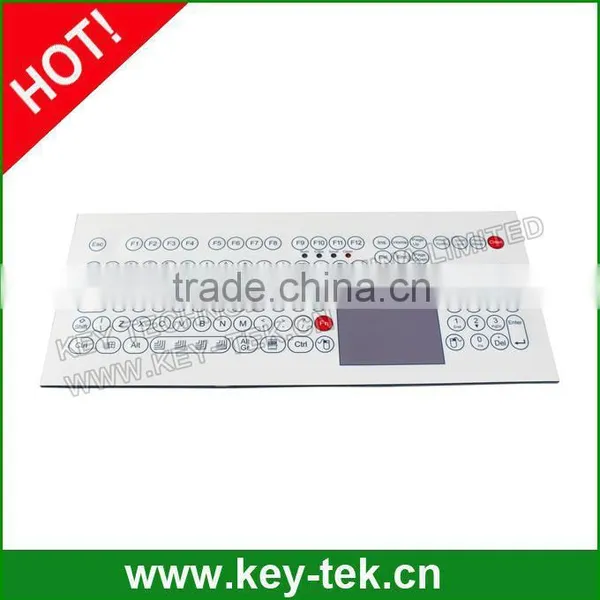

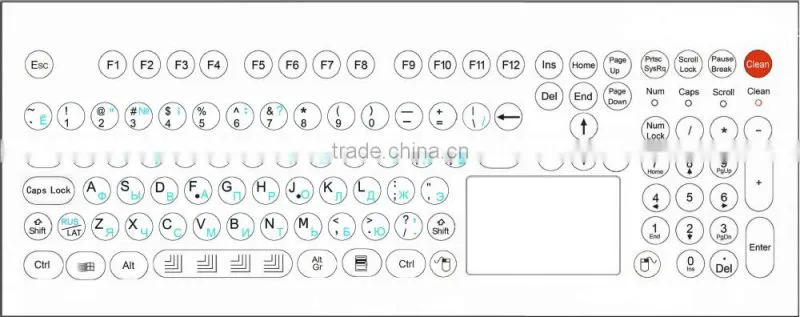

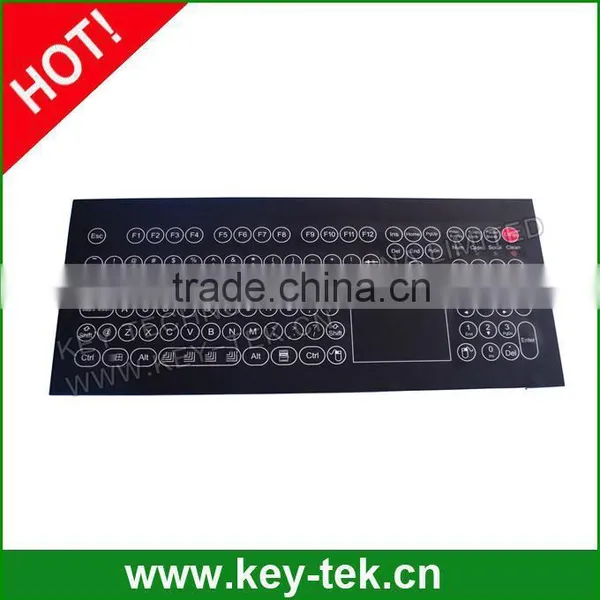

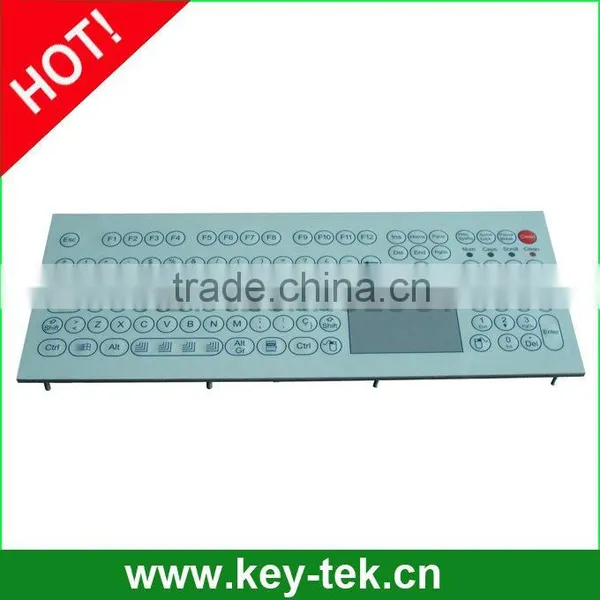

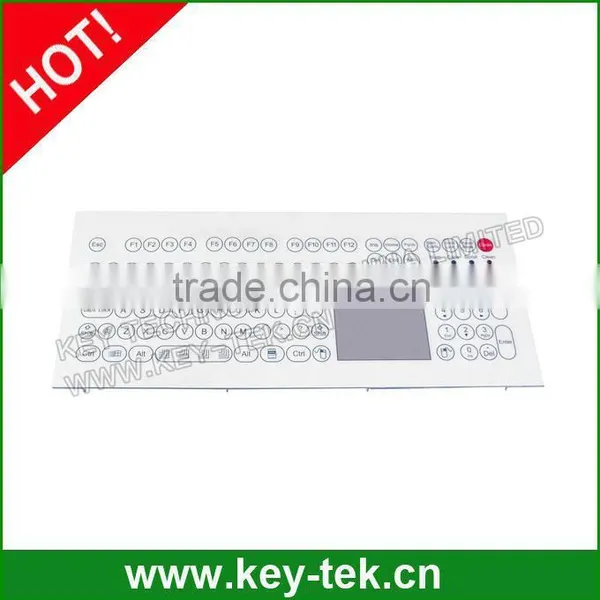

IP65 industrial membrane Hygienic keyboard with sealed touch pad mouse

Description:

107 keys IP65 compact format medical keyboard with integrated ruggedized touchpad, metal dome key switch technology with short stroke 0.45mm, USB or PS2 keyboard interface, top panel mounting solution.

MAIN FEATURE:

• The foil-covered aluminum front plate is mounted flush for easy cleaning. The polyester front foil is wear-and tear-resistant and can withstand most chemicals and liquids. The keyboard is protected against dust, dirt, grease and liquids to IP65/NEMA4 and is available in PS/2 and USB versions. Custom keyboard layouts or imprints are available upon request.
• This keyboard is available in different keyboard layouts with integrated capacitive touchpad. This stylish, yet rugged medical keyboard is ideal for any application requiring a rugged enclosure and low profile.

SPECIFICATION KEYBOARD:

• Number of Keys: 107
• Key switch Technology: metal dome key switch technology with short travel keys
• Actuation Force: 1.2N for key R7.0mm (press point)
• Key Travel: 0.45mm
• Key switch Lifetime: 3 mil. operations
• Protection Level: IP65, NEMA 4x
• Mounting Type: Top panel mounting or Desk Top.
• Operating Temperature: -20 °C to +50 °C;
• Colors: 4 (Blue, white, grey, black)
• G.W.: 1.5KGs
• Key Dimensions (print area): R=7.0mm
• Dimensions: 321.0mm x 139.0mm (Front Panel)

TOUCHPAD:

• Touchpad cover: Composite
• Motion Detection
• Method: capacitive
• Resolution: 40 counts / mm
• More than Lifetime 10 million strokes
• Mutual Capacitance sensing
• X/Y position sensing resolution: 40 counts/mm
• X/Y position reporting: Relative
• Output (self-detectable depending on cable): PS2 or USB
• Tracking speed: Maximum 1,016 m/sec
• Power supply voltage: 5 V DC ±0.25V
• Current rating (active mode): 17 mA

ELECTRICAL DATA:

• Supply Voltage: +5V DC +/- 5%
• Current Rating: appr. 20mA
• EMC Standard: It is compliance with the council EMC directive 89/336/EEC
  EN55022: 1988+A1: 2000+A2: 2003
  EN55024: 1988+A1: 2001+A2: 2003
• Emission EN 50081-1
• Immunity: EN 50082-1
• Lifespan > 5 years
• Interface: PS2, USB available.
• OS: DOS/Window95/98/NT/ME/2000/2003/XP/Vista/win7, Linux, Unit, Mac OSX


RELIABILITY

• RoHS Compliant, CE and FCC
• Protection Level: IP65 (front panel)
• Key Lifespan >5 million actuations
• Touchpad lifespan > 10 million of times
• MTBF >50000H
• MTTR <30min
•

.
