IP68 Dustproof Desktop All-in-one Industrial Membrane Keyboard With Full Function

IP68 Dustproof Desktop All-in-one Industrial Membrane Keyboard With Full Function thumbnail-1
IP68 Dustproof Desktop All-in-one Industrial Membrane Keyboard With Full Function thumbnail-2
IP68 Dustproof Desktop All-in-one Industrial Membrane Keyboard With Full Function thumbnail-3
IP68 Dustproof Desktop All-in-one Industrial Membrane Keyboard With Full Function photo-1
IP68 Dustproof Desktop All-in-one Industrial Membrane Keyboard With Full Function photo-2
IP68 Dustproof Desktop All-in-one Industrial Membrane Keyboard With Full Function photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Desktop
Type:
Wired
Contact Supplier Request Quote Chat Now
Key Technology (China) Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen Zhen and HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Desktop
Type Wired
Style Standard
Interface Type PS/2, USB, Other, PS/2, USB, USB PS2
Brand Name HI-KEY,KEY-TEK
Model Number K-TEK-D399TP-KP-FN-DT
Place of Origin Guangdong, China

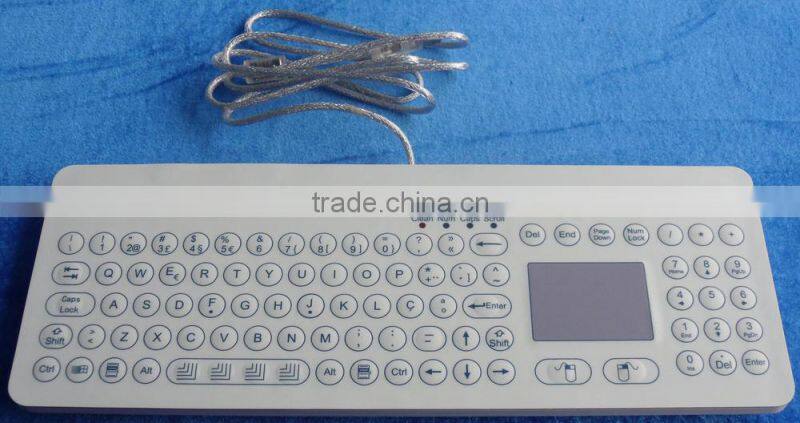

Description: 108 keys IP65 compact format polystyrene medical keyboard with integrated ruggedized touchpad, metal dome key switch technology with short stroke 0.45mm, with antimicrobial keyboard surface, standard alone desk top version with robust polycarbonate case.



Dimension: 399.0mm x 150.0mm x 20.0mm (L x W x H)



APPLICATION

  • MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
  • MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
  • MILITARY: Army, Navy, Air force
  • INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
  • OTHER INDUSTRIES

MAIN FEATURE

  • Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality.
  • The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
  • Clean key
    -Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime
    -User is notified of ‘lock down mode’ by brightly lit CLEAN KEY
  • Special dura-coating for excellent mechanical and chemical resistance
  • With firm tactile key feel, 0.45mm key travel.
  • Integrated touchpad.
  • Integrated numeric keypad.
  • Optical IP68 trackball mouse available
  • Ease of customizing with multiple languages, to accommodate foreign or custom variants.
  • PS/2, USB connection cables that plug directly into computer like keyboard operations.
  • Enclosure: polystyrene, ABS Polycarbonate Case
  • Low-profile keys for easy cleaning
  • Key life: 5 millions

MECHANICAL DATA

  • Key: 108 keys
  • Key top style: Protuberant circular keys with tactile feeling.
  • Touchpad cover: Composite
  • More than Lifetime 5 million strokes
  • Mutual Capacitance sensing
  • X/Y position sensing resolution: 40 counts/mm
  • X/Y position reporting: Relative
  • Output (self-detectable depending on cable): PS2 or USB
  • Tracking speed: Maximum 1,016 m/sec
  • Power supply voltage: 5 VDC ±0.25V
  • Current rating (active mode): 17 mA
  • Switch life: more than 5 million of operations.
  • Actuation Force:1.0 N+/-0.1N for normal key
  • Enclosure Material: polystyrene
  • Colors: 4 (Blue, white, grey, black)
  • Cable Length: 2.5m
  • G.W.: 1.50KGs
  • Dimensions: 399.0mm x 150.0mm x 20.0mm (L x W x H)

ELECTRICAL DATA

  • Supply Voltage: +5V DC +/-5%
  • Current Rating:
    PS2: keyboard with 210mA@5V (from keyboard port)
     Touchpad: 10mA@5V (from mouse port)
    USB: 220mA@5V (from CPU port)
  • EMC Standard: It is compliance with the council EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003 EN55024: 1988+A1: 2001+A2:2003
  • Emission: EN 50081-1
  • Immunity: EN 50082-1
  • Lifespan> 3 years
  • Key switch Technology: metal dome key switch technology with short travel keys
  • Interface: PS2, USB available.
  • OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

  • Operating temperature:-20oC to +55oC
  • Storage temperature: :-30oC to +65oC
  • Operating RH: 30-90%
  • Atmospheric pressure: 60-106Kpa
  • Shock: 3x11 ms pulses of 50g on each of 3 axes
  • Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
  • Flammability
    PRINTED CIRCUIT BOARD: 94 VO
    SILICONE OVERLAY: 94 HB
    INTERFACE CABLE: 94 V

RELIABILITY

  • RoHS Compliant, CE and FCC
  • Protection Level: IP68, NEMA 6P
  • Key Lifespan >10 million actuations
  • MTBF >50000H
  • MTTR <30min

IP68 dustproof desktop all-in-one industrial membrane keyboard with full function

IP68 dustproof desktop all-in-one industrial membrane keyboard with full function
