Home > Computer Products > Keyboard > Mechanical Keyboard > Panel Mount Industrial Membrane Touch Screen Keyboard

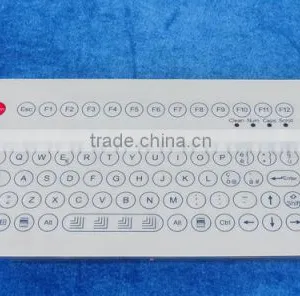

Panel Mount Industrial Membrane Touch Screen Keyboard
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, Medical machine
Type:
Wired
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IP65 Industrial Rugged Top Panel Membrane Keyboard With Integrated Sealed KeypadNegotiableMOQ: 1 Set -
IP68 Dustproof Desktop All-in-one Industrial Membrane Keyboard With Full FunctionNegotiableMOQ: 1 Set
-
Industrial Medical Flat Keyboard With Sealed Touchpad, Easy Clean KeyboardNegotiableMOQ: 1 Set
-
IP68 Durable Anti-microbial Membrane Keyboard With Integrated KeypadNegotiableMOQ: 1 Piece
-
IP68 Waterproof Industrial Movable Membrane Keyboard With Balck or White ColourNegotiableMOQ: 1 Set
Products Status
Stock
Application
Other, Medical machine
Type
Wired
Style
Standard, Other, Standard, Desktop, 108 keys
Interface Type
USB, Other, USB, USB&PS2
Brand Name
key-tek
Model Number
K-TEK-D410-TB-KP-FN
Place of Origin
Guangdong, China

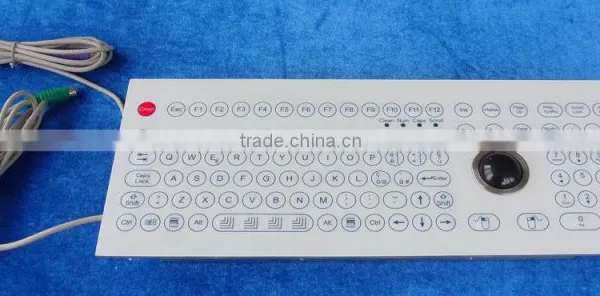

108 keys IP65 compact front panel mounting hospital meditech keyboard with IP68 optical trackball, metal dome key switch technology with short stroke 0.45mm.
MAIN FEATURE:
- The foil-covered aluminum front plate is mounted flush for easy cleaning. The polyester front foil is wear-and tear-resistant and can withstand most chemicals and liquids. The keyboard is protected against dust, dirt, grease and liquids to IP65/NEMA4 and is available in PS/2 and USB versions. Custom keyboard layouts or imprints are available upon request.
This keyboard is available in different keyboard layouts with IP68 optical trackball. This stylish, yet rugged medical keyboard is ideal for any application requiring a rugged enclosure and low profile.
SPECIFICATION KEYBOARD:
- Number of Keys: 108
- Key switch Technology: metal dome key switch technology with short travel keys
- Actuation Force: 1.2N for key R7.0mm (press point)
- Key Travel: 0.45mm
- Key switch Lifetime: 3 mil. operations
- Protection Level: IP65, NEMA 4x
- Mounting Type: Top panel mounting or Desk Top.
- Operating Temperature: -20 °C to +50 °C;
- Colors: 4 (Blue, white, grey, black)
- G.W.: 1.6KGs
- Key Dimensions (print area): R=7mm
- Dimensions: 410.0mm x 160.0mm (Front Panel)
ELECTRICAL DATA:
- Supply Voltage: +5V DC +/- 5%
- Current Rating: appr. 20mA
- EMC Standard: It is compliance with the council EMC directive 89/336/EEC
EN55022: 1988+A1: 2000+A2: 2003
EN55024: 1988+A1: 2001+A2: 2003 - Emission EN 50081-1
- Immunity: EN 50082-1
- Lifespan > 5 years
- Interface: PS2, USB available.
- OS: DOS/Window95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unit, Mac OSX
RELIABILITY
- RoHS Compliant, CE and FCC
- Protection Level: IP65 (front panel)
- Key Lifespan >3 million actuations
- Touchpad lifespan > 10 million of times
- MTBF >50000H
- MTTR <30min
