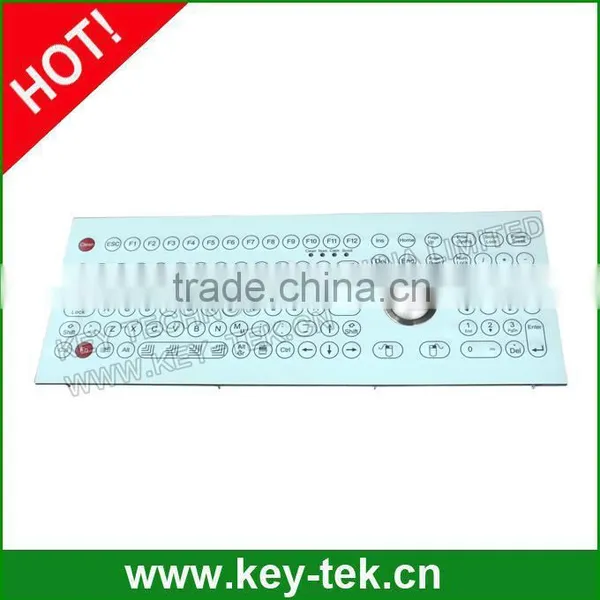

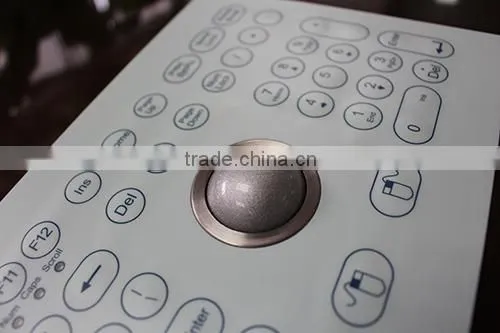

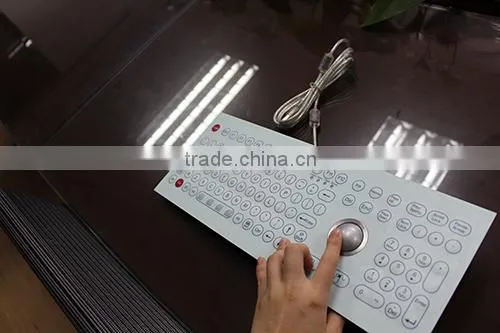

Help CenterTop Panel Mount Industrial Membrane Keyboard With Optical Trackball
Related Products
-
Scratch Proof Industrial Membrane Keyboard With Trackball for BeverageNegotiableMOQ: 1 Set -
IP65 Industrial Membrane Hygienic Keyboard With Sealed Touch Pad MouseNegotiableMOQ: 1 Set
-
IP65 Industrial Hygienic Membrane Keyboard With Optical TrackballNegotiableMOQ: 1 Set
-
Panel Mount Industrial Membrane Touch Screen KeyboardNegotiableMOQ: 1 Set
-
IP65 Industrial Rugged Top Panel Membrane Keyboard With Integrated Sealed KeypadNegotiableMOQ: 1 Set
108 keys IP65 compact front panel mounting hospital meditech keypad with IP68 optical trackball, metal dome key switch technology with short stroke 0.45mm.
MAIN FEATURE:
- The foil-covered aluminum front plate is mounted flush for easy cleaning. The polyester front foil is wear-and tear-resistant and can withstand most chemicals and liquids. The keyboard is protected against dust, dirt, grease and liquids to IP65/NEMA4 and is available in PS/2 and USB versions. Custom keyboard layouts or imprints are available upon request.
This keyboard is available in different keyboard layouts with IP68 optical trackball. This stylish, yet rugged medical keyboard is ideal for any application requiring a rugged enclosure and low profile.
108 keys IP65 dynamic rated membrane industrial keyboard with full keyboard functionalities with integrated numeric keypad and function keys on the upper line, IP68 dynamic rated washable 38.0mm optical trackball module with 800 DPI resolutions for fast and accurate cursor position, 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN + CLEAN combination key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial functionalities, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments,ruggedized and backed with 2.0mm alumium plate with sand blasting & oxygenation treatment, top panel mounted.
SPECIFICATION KEYBOARD:
- Number of Keys: 108
- Key switch Technology: metal dome key switch technology with short travel keys
- Actuation Force: 1.2N for key R7.0mm (press point)
- Key Travel: 0.45mm
- Key switch Lifetime: 3 mil. operations
- Protection Level: IP65, NEMA 4x
- Mounting Type: Top panel mounting or Desk Top.
- Operating Temperature: -20 °C to +50 °C;
- Colors: 4 (Blue, white, grey, black)
- G.W.: 1.6KGs
- Key Dimensions (print area): R=7mm
- Dimensions: 410.0mm x 160.0mm (Front Panel)
ELECTRICAL DATA:
- Supply Voltage: +5V DC +/- 5%
- Current Rating: appr. 20mA
- EMC Standard: It is compliance with the council EMC directive 89/336/EEC
EN55022: 1988+A1: 2000+A2: 2003
EN55024: 1988+A1: 2001+A2: 2003 - Emission EN 50081-1
- Immunity: EN 50082-1
- Lifespan > 5 years
- Interface: PS2, USB available.
- OS: DOS/Window95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unit, Mac OSX
RELIABILITY
- RoHS Compliant, CE and FCC
- Protection Level: IP65 (front panel)
- Key Lifespan >3 million actuations
- Touchpad lifespan > 10 million of times
- MTBF >50000H
- MTTR <30min
