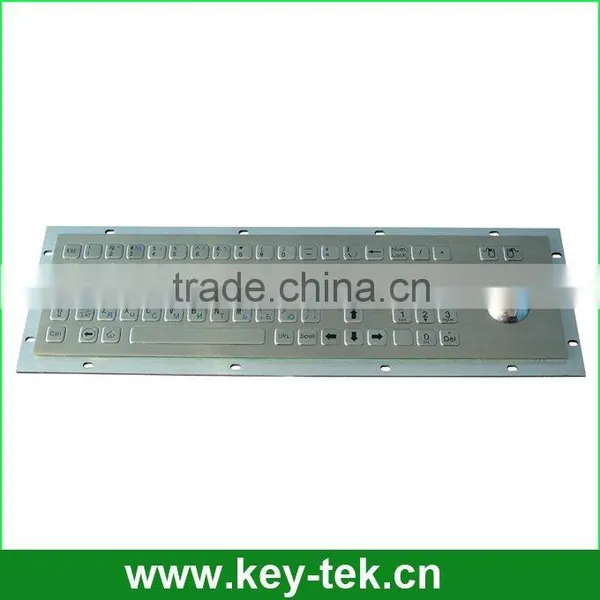

Vandal Proof IP65 Stainless Steel kiosk Keyboard with Trackball and Integrated EPP

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port shenzhen or hongkong

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Application	Other, kiosk machine
Type	Wired	Style	Standard, Other, Standard, 81 keys
Interface Type	USB	Brand Name	Key-Tek
Model Number	K-TEK-B392-LTB-PP	Place of Origin	Guangdong, China

Product Description

81 keys compact format vandal proof IP65 stainless steel keyboard with integrated trackball and EPP with encryption module supporting DES/TDES for bank kiosk, ATM/CDM etc, with gold-on-gold key switch technology with short stroke 0.45mm for accurate data input,with top panel mounting.

APPLICATION

This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied bank access applications,Bank kiosks, ATM, CDMs etc.

MAIN FEATURE

Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers.
Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Waterproof execution according to degree of protection IP65 from the panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.
The keyboards have an excellent tactile feel with short stroke switches and allow users to do accurate data input without any fail input, With firm tactile perception for comfortable operation
Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables for main keyboard and pointing devices for pluging directly into the host computer for normal keyboard operations.
The integrated EPP (encryption PINPAD) is with encryption module supporting DES/TDES for bank usage of bank kiosks, CDM/ATM. RS232 interface for EPP.

COMMUNICATION PARAMETER

Standard RS232 serial interface.
Communication velocity: 19200, 9600, 4800, 2400, 1200bps.
Data format: N, 8, 1.
15 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, correct, enter, cancel, backup key 2 defined for ABC.
Data encryption and decryption (DES/TDES), MAC Algorithm.
Encryption rate: < 1 second.

MECHANICAL DATA

Key: 81 keys, super quality brushed stainless steel
Key top style: Non-protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
Key Size:14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.
Key travel: 0.45mm
Tracker ball: 38mm (1.5') diameter, Resolution 440 edges/revolution.
Black Phenolic Trackballs are available.
Switch life: more than 5 million of operations.
Actuation Force: 2.0N +/-0.1N for key 14.0mm x 14.0mm (pressure point), 4.0N +/-0.1N for key 14.0mm x 28.0mm (pressure point)
Front Plate: Super quality brushed stainless steel
Lettering: Sunk laser legends & characters in high quality ink
Actuator/keys materials: stainless steel
G.W.: 2.0KGs
Dimensions: 392.0mm x 110.0mm (front panel), 416.0mm x 134.0mm (back panel)

ELECTRICAL DATA

Supply Voltage: +5V DC +/-5%
Current Rating: appr. 30mA
EMC Standard:It is compliance with the council EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003 EN55024: 1988+A1:2001+A2:2003
Emission: EN 50081-1
Immunity: EN 50082-1
Lifespan > 5 years
Switch Contact Material: Gold-on-Gold key switch technology PCB.
Interface: PS2, USB available, RS232 for EPP.
OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/win7, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

Operating temperature:-20°C to +60°C
Storage temperature: -30°C to +70°C
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at +40°C: 21 days, IEC 60512-6
Dry heat test at +85°C: 10 days, IEC 60512-6

RELIABILITY

RoHS Compliant, CE and FCC
Protection Level: IP65(front panel)
Vandal resistant IK10

Sensitive data can be well saved while sudden power off.
Sensitive data and program can be erased when being tampered.
Key Lifespan > 5 million actuations.
MTBF >20000H.
MTTR <30min.
