Home > Computer Products > Keyboard > Mechanical Keyboard > Vandal Proof Metall Keyboard With Trackball and Integrated EPP
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Other, kiosk application
Style:
Standard, Other, Standard, 81 keys
Interface Type:
USB
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen Zhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IP65 Black Backlit Trackball Keyboardl in Factory PriceNegotiableMOQ: 1 Set -
Vandal Proof Metal Ip65 Keyboard With Trackball and Integrated EPPNegotiableMOQ: 1 Set
-
81 Keys Vandal Proof Compact Format IP65 Short Stroke 0.45mm Stainless Steel KeyboardNegotiableMOQ: 1 Set
-
Black Titanium Industrial Keyboard Price With Track BallNegotiableMOQ: 1 Set
-
Black Titanium Industrial Mechanical Keyboard With Track BallNegotiableMOQ: 1 Set
Application
Other, kiosk application
Style
Standard, Other, Standard, 81 keys
Interface Type
USB
Brand Name
Key-Tek
Model Number
K-TEK-A420-LTB-PP
Place of Origin
Guangdong, China

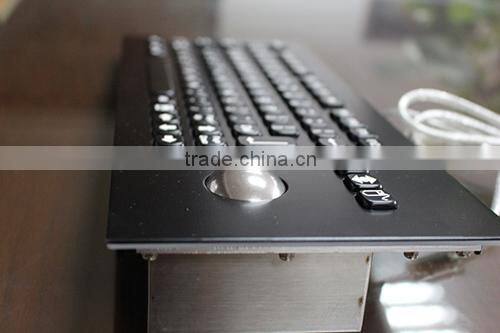

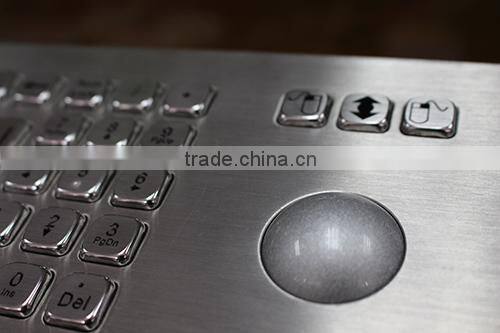

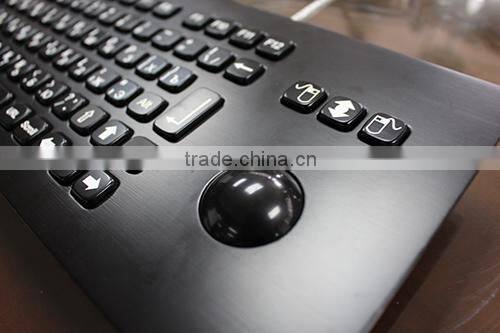

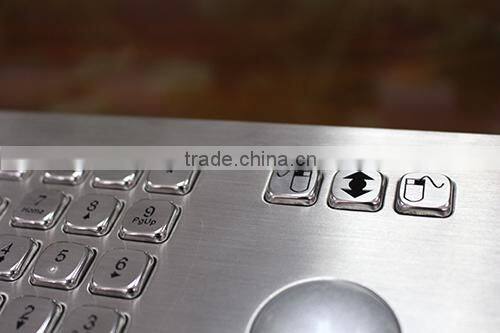

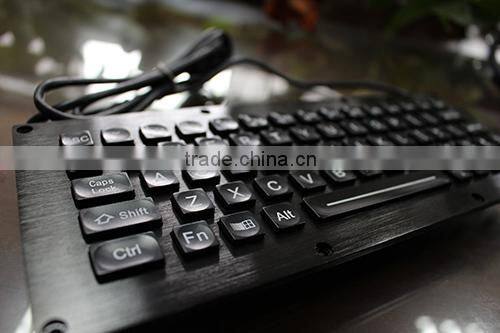

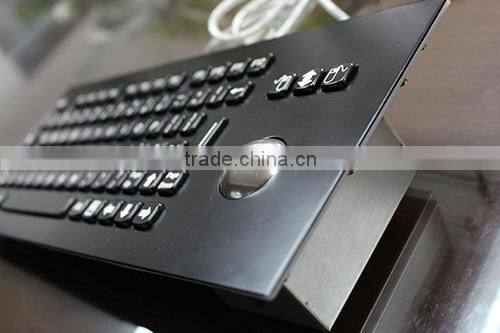

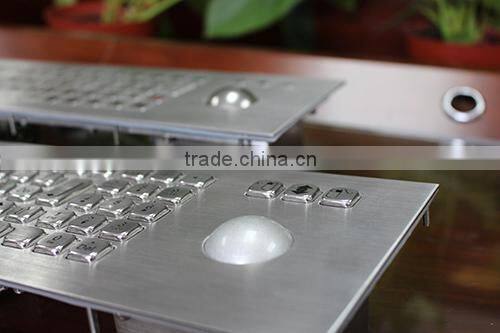

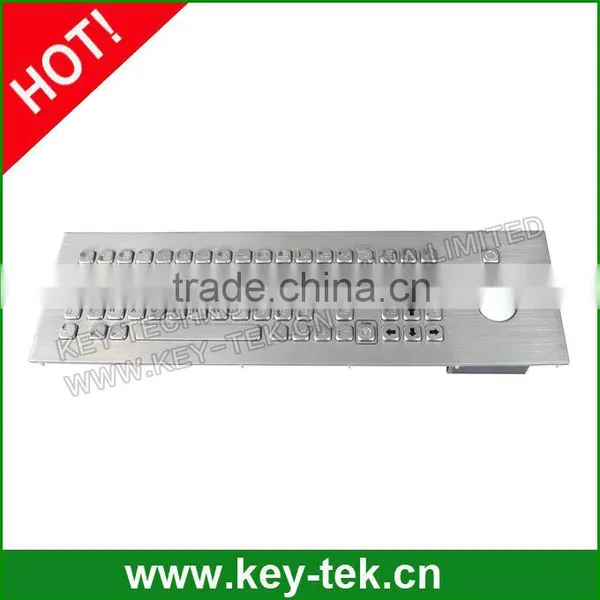

81 keys compact format vandal proof IP65 stainless steel keyboard with integrated trackball and EPP with encryption module supporting DES/TDES for bank kiosk, ATM/CDM etc, with carbon-on-gold key switch technology with long stroke 2.0mm, with top panel mounting.
APPLICATION
- This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied bank access applications,Bank kiosks, ATM, CDMs etc.
MAIN FEATURE
- Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers.
- Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
- Waterproof execution according to degree of protection IP65 from the panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.
- The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
- Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
- Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
- Ease of customizing with multiple languages, to accommodate foreign or custom variants.

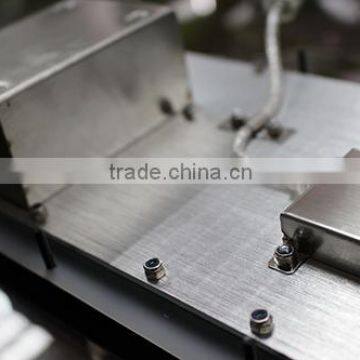

- Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables for main keyboard and pointing devices for pluging directly into the host computer for normal keyboard operations.
- The integrated EPP (encryption PINPAD) is with encryption module supporting DES/TDES for bank usage of bank kiosks, CDM/ATM. RS232 interface for EPP.
COMMUNICATION PARAMETER
- Standard RS232 serial interface.
- Communication velocity: 19200, 9600, 4800, 2400, 1200bps.
- Data format: N, 8, 1.
- 15 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, correct, enter, cancel, backup key 2 defined for ABC.
- Data encryption and decryption (DES/TDES), MAC Algorithm.
- Encryption rate: < 1 second.
MECHANICAL DATA
- Key: 81 keys, super quality brushed stainless steel
- Key top style: Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
- Key Size:14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.
- Key travel: 2.0mm

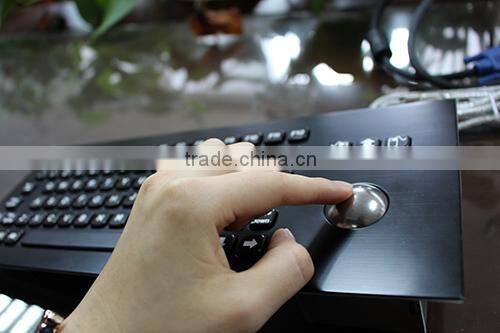

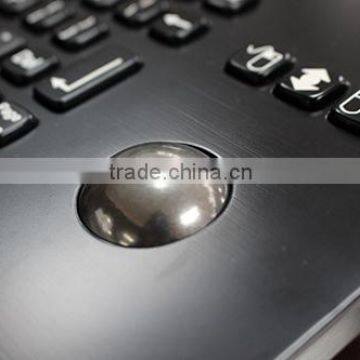

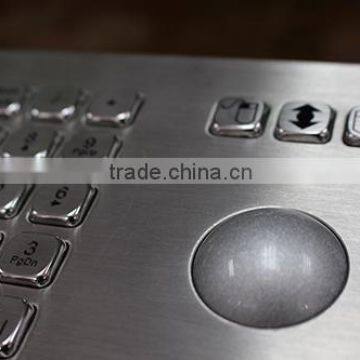

- Tracker ball: 38mm (1.5') diameter, Resolution 440 edges/revolution.
- Black Phenolic Trackballs are available.
- Switch life: more than 10 million of operations.
- Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
- Front Plate: Super quality brushed stainless steel
- Lettering: Sunk laser legends & characters in high quality ink
- Actuator/keys materials: stainless steel
- G.W.: 2.0KGs
- Dimensions: 420.0mm x 124.0mm (front panel), 392.0mm x 105.0mm (back panel)
ELECTRICAL DATA
- Supply Voltage: +5V DC +/-5%
- Current Rating: appr. 30mA
- EMC Standard:It is compliance with the council EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003 EN55024: 1988+A1:2001+A2:2003
- Emission: EN 50081-1
- Immunity: EN 50082-1
- Lifespan > 5 years
- Switch Contact Material: Carbon-on-Gold key switch technology PCB.
- Interface: PS2, USB available, RS232 for EPP.
- OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/win7, Linux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILITY
- Operating temperature:-20°C to +60°C
- Storage temperature: -30°C to +70°C
- Operating RH: 30-90%
- Atmospheric pressure: 60-106Kpa.
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at +40°C: 21 days, IEC 60512-6
- Dry heat test at +85°C: 10 days, IEC 60512-6
RELIABILITY
- RoHS Compliant, CE and FCC
- Protection Level: IP65(front panel)
- Vandal resistant IK09
- Sensitive data can be well saved while sudden power off.
- Sensitive data and program can be erased when being tampered.
- Key Lifespan > 10 million actuations.
- MTBF >20000H.
- MTTR <30min.
Warranty
KEY-TEK guarantee our products and workmanship up to a full year!
shipment
Certifications
All of our products have CE, ROHS, FCC, IP65, IP68 and Patents!
