Specifications
brushless alternator 15kw marine generator1>Seawater cooled
2>Brushless alternator
3>One year warranty

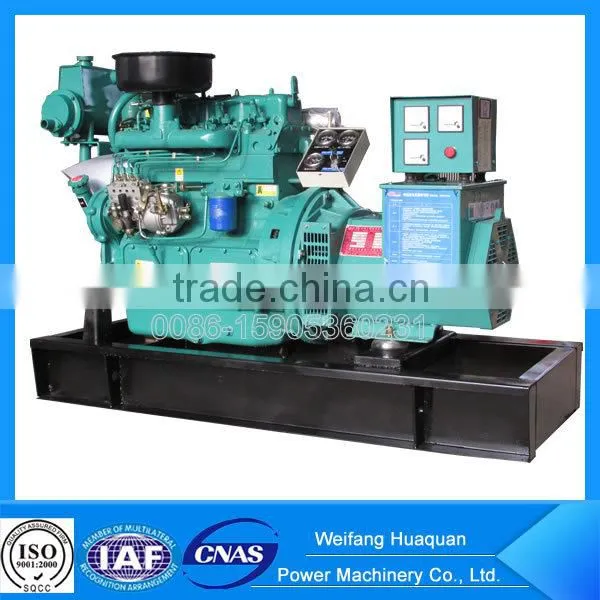

china top brand stamford alternator with Chine engine 15kw marine generator
| Diesel Generators Standard Configurations | |
| 1 | Standard High-level quality engine Ricardo series |
| 2 | Standard High-level quality alternator, Stanford, Brushless, 100% copper wires. Protection Grade: IP23, Insulation Class H. |
| 3 | No-maintenance start battery |
| 4 | After acidification under frame, High-level strong |
| 5 | Electric start, use key start |
| 6 | Standard control panel Spray-print or LCD show panel |
| 7 | Daily fuel tank |
| 8 | High-level shock absorber system |
| 9 | Ripple flexes exhaust pipe, exhaust siphons, flange, Muffler |
| 10 | 40°C radiator as standard |
| 11 | Exhaust silencer |
| 12 | Charger motor for battery. |
| 13 | Standard export box |
| 14 | Manuals |
| 15 | Tools box |
Generator Ratings
Standy Output(KW/KVA) |
Prime Out(KW/KVA) |
P.F |
Phase |
Wires |
Size(mm) |
Weight (KG) |
16.5/20.6 |
15/18.75 |
0.8 |
3 |
4 |
1600*600*1100 |
550 |
Diesel Engine Data
Engine Model |
K4100C |
Cylinder No. |
4 |
Intake Method |
Natural Aspiration |
Engine Type |
Inline, Direct injection, Four-stroke, water cooling |
Displacement(L) |
3.61 |
Bore*Stroke(mm) |
100*115 |
Engine Max outout(kw/kva) |
30.1/37.6 |
Fuel consumption(g/kw.h) |
≤3.6L/h |
Start Method |
DC 12V |
Manufacture |
Ricardo/Weifang |
Alternator Data
Alternator Model |
XN184ES/XINGNUO STANFORD |
Alterantor Capacity |
15KW/18.75KVA |
Voltage(V) |
110/220 230/400 |
Speed |
1500/1800 |
Excitation Method |
Brush/Brushless |
Power Factor |
0.8 |
Frequency (HZ) |
50/60 |
The specification of alternator:
Brand |
Stamford, Leroy semor, Maraton and chinese alternator etc. |
Regulator |
AVR automatic voltage regulating |
Excite type |
pret or shunt |
Connecting type |
3PH star, 3PH-DELTA |
Steady frequency change |
0-5% |
No load voltage |
≥95%-105 |
Steady voltage |
≤±1 |
Insulation degree |
H degree |
Exclosure degree |
IP23 |
Huaquan provides a full line of brand new and high quality products.Each and every unit is strictly factory tested Warranty is according to our standard conditions:12 months or 1000 running hour’s ,subject to the earlier one .Service and parts are available from our factory.
We specialized in producing diesel generators. We have exported to many countries and widely used in domestic.
1. Exported countries: Nigeria, Indonesia, Malaysia, Philippine, North Korea, Ghana, Gabon, South Africa, Guinea, Russia, Iraq, Iran, Colombia, Burkina Faso, Liberia, Zambia, etc.
2. Domestic: Send to most of the cities in china, and get high praise from our clients.
1.What's your power range of Generators?
Answer: We can offer the range from 10kva~1000kva.
2.What's your delivery time?
Answer: Generally,we can delivery in 7 days after we get the deposit.
3.What's your payment?
Answer: We accept T/T ,and 30% as the deposit,the balance payment should be paid before shipping.
4.What's your warranty?
Answer: All our products we offer on year warranty.
5.What's your MOQ?
Answer:We accept the MOQ is 1 set.
