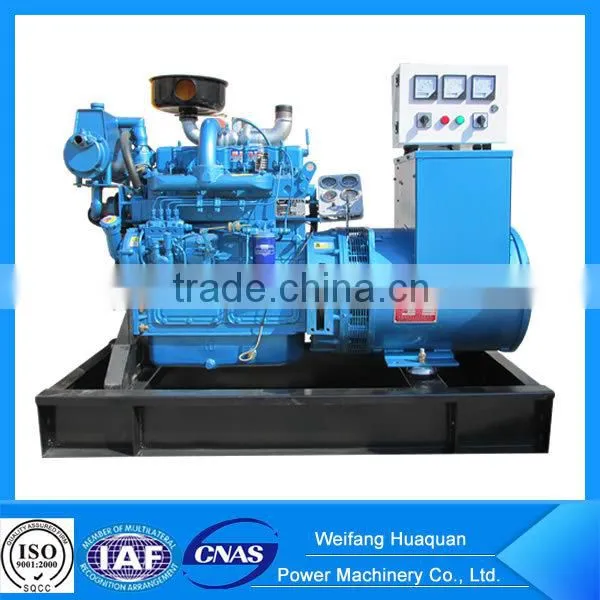

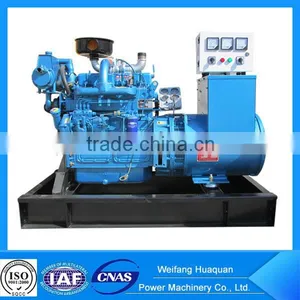

China engine R4100ZC with marathon alternator 40kw marine generator

Specifications

brushless alternator 40kw marine generator
1>Seawater cooled
2>Brushless alternator
3>One year warranty

      China engine R4100ZC with marathon alternator 40kw marine generator

Diesel Generators Standard Configurations
1	Standard High-level quality engine Ricardo series
2	Standard High-level quality alternator, Stanford, Brushless, 100% copper wires. Protection Grade: IP23, Insulation Class H.
3	No-maintenance start battery
4	After acidification under frame, High-level strong
5	Electric start, use key start
6	Standard control panel Spray-print or LCD show panel
7	Daily fuel tank
8	High-level shock absorber system
9	Ripple flexes exhaust pipe, exhaust siphons, flange, Muffler
10	40°C radiator as standard
11	Exhaust silencer
12	Charger motor for battery.
13	Standard export box
14	Manuals
15	Tools box



Generator Ratings



Standy Output(KW/KVA)	Prime Out(KW/KVA)	P.F	Phase	Wires	Size(mm)	Weight  (KG)
44/55	40/50	0.8	3	4	1700*600*1300	8000



Diesel Engine Data



Engine Model	K4100ZC
Cylinder No.	4
Intake Method	Turbocharged Aspiration
Engine Type	Inline, Direct injection, Four-stroke, water cooling
Displacement(L)	3.6L
Bore*Stroke(mm)	100*115
Engine Max outout(kw/kva)	46/57.5
Fuel consumption(g/kw.h)	≤3.6L/h
Start Method	DC 12V
Manufacture	Ricardo/Weifang



Alternator Data

Alternator Model	XN224D/XINGNUO STANFORD
Alterantor Capacity	40KW/50KVA
Voltage(V)	110/220 230/400
Speed	1500/1800
Excitation Method	Brush/Brushless
Power Factor	0.8
Frequency (HZ)	50/60



 The specification of alternator:



Brand	Stamford, Leroy semor, Maraton and chinese alternator etc.
Regulator	AVR automatic voltage regulating
Excite type	pret or shunt
Connecting type	3PH star, 3PH-DELTA
Steady frequency change	0-5%
No load voltage	≥95%-105
Steady voltage	≤±1
Insulation degree	H degree
Exclosure degree	IP23







Diesel Engine:China Weichai Brand K4100ZC ,Poruduced in Weifang,China.

K4100C diesel engine adopt the UK Ricardo company techanology producted in Chia company. its power from10kw ~300kw.

It's widely accepted by most clients because its no high price,and as the standby power resource or only use it when city power lose any time, its the good choice.





Huaquan provides a full line of brand new and high quality products.Each and every unit is strictly factory tested Warranty is according to our standard conditions:12 months or 1000 running hour’s ,subject to the earlier one .Service and parts are available from our factory.











We specialized in producing diesel generators. We have exported to many countries and widely used in domestic.



 1. Exported countries: Nigeria, Indonesia, Malaysia, Philippine, North Korea, Ghana, Gabon, South Africa, Guinea, Russia, Iraq, Iran, Colombia, Burkina Faso, Liberia, Zambia, etc.

2. Domestic: Send to most of the cities in china, and get high praise from our clients.







  1.What's your power range of Generators?

Answer:  We can offer the range from 10kva~1000kva.

2.What's your delivery time?

Answer:  Generally,we can delivery in 7 days after we get the deposit.

3.What's your payment?

Answer:  We accept T/T ,and 30% as the deposit,the balance payment should be paid before shipping.

4.What's your warranty?

Answer:  All our products we offer on year warranty.

5.What's your MOQ?

Answer:We accept the MOQ  is 1 set.
