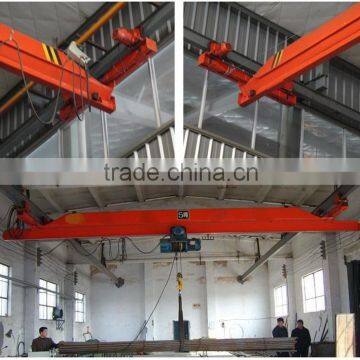

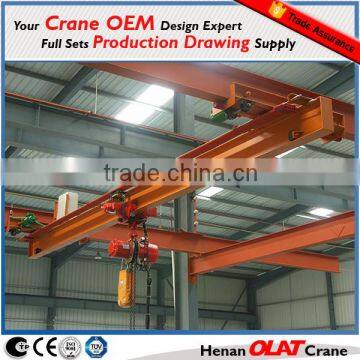

5 ton electric single travelling beam EOT Crane
-----------------Best Solutions Ready For Installation To Meet Individual Requirements
Application:
Factories, warehouses, and stock yards where the height from the rail surface to the lower edge of the truss is equal to or shorter than 500mm.
The trolley is equipped with a specific electric hoist which has flexible structure, reliable and safe operation.
Design: It is composed of girder weld by steel plate and l-steel, end girder, electric hoist and electric treadmill.
It can be hung on the l-beam orbit on the top of the workshop, with the cantilever of 0.5~1m long.
The electric hoist runs along the lower flanges of the l-steel of the girder to accomplish article hoisting, featuring dexterous structure and easy installation and maintenance.
Features:
1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchange ability for parts and components
7) Saves electricity
Conventional configuration:
1) Pendant control or remote control.
2) Single or double speed of steel wire rope hoist or chain electric hoist
3) Using single speed cage motor for travelling or traversing crane.
4) Working ambient temperature: -20°C~+45°C.
5) Using transducer for travelling or traversing crane to realize step speed or stepless speed change.
6) It should be explained when using in the open-air environment, in order to fix windproof & rainproof devices.
Model |
LX0.5-S |
LX1-S |
LX2-S |
|||
Capacity t |
0.5 |
1 |
2 |
|||
Traveling mechanism |
m/min |
20 30 |
||||
Motor |
Model |
ZDY112-4 |
||||
Power kw |
0.4×2 |
|||||
|
Electric hoist |
Model |
CD1 |
MD1 |
|||
Lifting height m |
6 9 12 18 |
|||||
Speed m/min |
Lifting |
8 |
8/0.8 |
|||
Traveling |
20 30 |
|||||
Wheel dia. |
130 |
|||||
I beam orbit |
120a-145c |
|||||
Model |
LX3-S |
LX5-S |
LX10-S |
|||
Capacity t |
3 |
5 |
10 |
|||
Traveling mechanism |
m/min |
20 30 |
||||
Motor |
Model |
ZDY112-4 |
||||
Power kw |
0.4×2 |
|||||
|
Electric hoist |
Model |
CD1 |
MD1 |
|||
Lifting height m |
6 9 12 18 |
|||||
Speed m/min |
Lifting |
8 |
8/0.8 |
|||
Traveling |
20 30 |
|||||
Working class |
A3 |
|||||
Power supply |
3-Phase 380V 50HZ or by your country voltage |
|||||
Wheel dia. |
130 |
|||||
I beam orbit |
Ⅰ32a-Ⅰ45c |
Ⅰ40b-Ⅰ63c |
||||
Normal Quotations:
1. Lifting capacity ______ton
2. Single beam or double beam?
3. Standard type or Europe type?
4. Crane Span _______meters (Rail middle center to center distance)
5. Lifting height ______meters (Hook to ground)
6. Industrial voltage _____V, _____HZ, 3Phases
7. Control mode
A. Pendant control B. Remote control C. Cabin control
8. What material does the crane lift?
9. Do you also need us to supply bearing beam, rail and slide wire?
A. Yes B. No
10. Any special design demand on crane?
