Home > Products > Single girder overhead Crane > 0.5~5ton Electric Small Single Girder Mobile Eot Crane

0.5~5ton Electric Small Single Girder Mobile Eot Crane

FOB Price

US$ 500 - 50,000 / Set

1 Set(Min. Order)

Port Tianjin Shanghai Qingdao or client designated port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Condition	New		Application	Plants/ warehouses/ material stocks/ factory, etc.
Rated Loading Capacity	0.5~5t		Rated Lifting Moment	0.5~5t
Max. Lifting Load	0.5~5t		Max. Lifting Height	6M-30M
Span	10.5-31.5m		Place of Origin	Henan, China
Brand Name	OLAT		Model Number	LX
Certification	CE ISO GB TUV SGS,OHSAS,SASO,CCC		Warranty	24 Months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

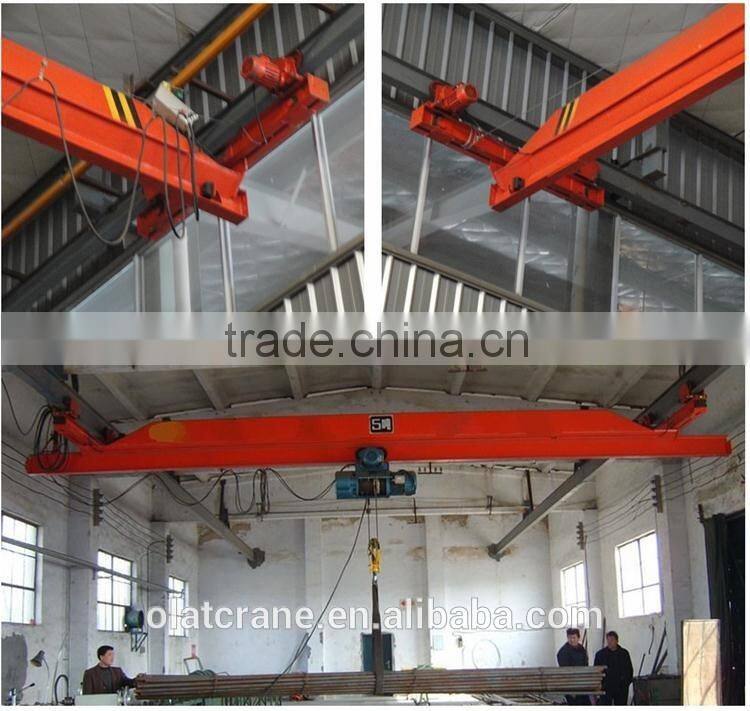

0.5~5ton Electric small single girder mobile eot crane

We can also supply the main crane components and full manufacturing drawings and full technical support, and your side manufacturing the beam structure in your country, that will save your sea freight and transportation cost.

-----------------Best Solutions Ready For Installation To Meet Individual Requirements

Product Description

Application:

Factories, warehouses, and stock yards where the height from the rail surface to the lower edge of the truss is equal to or shorter than 500mm.

The trolley is equipped with a specific electric hoist which has flexible structure, reliable and safe operation.

Design: It is composed of girder weld by steel plate and l-steel, end girder, electric hoist and electric treadmill.

It can be hung on the l-beam orbit on the top of the workshop, with the cantilever of 0.5~1m long.

The electric hoist runs along the lower flanges of the l-steel of the girder to accomplish article hoisting, featuring dexterous structure and easy installation and maintenance.

1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchange ability for parts and components
7) Saves electricity

Conventional configuration:

1) Pendant control or remote control.
2) Single or double speed of steel wire rope hoist or chain electric hoist
3) Using single speed cage motor for travelling or traversing crane.
4) Working ambient temperature: -20°C~+45°C.

5) Using transducer for travelling or traversing crane to realize step speed or stepless speed change.

6) It should be explained when using in the open-air environment, in order to fix windproof & rainproof devices.

Model				LX0.5-S	LX1-S	LX2-S
Capacity t				0.5	1	2
Traveling mechanism	m/min			20 30
	Motor	Model		ZDY112-4
		Power kw		0.4×2
Electric hoist	Model			CD1		MD1
	Lifting height m			6 9 12 18
	Speed m/min		Lifting	8		8/0.8
			Traveling	20 30
Wheel dia.				130
I beam orbit				120a-145c
Model				LX3-S	LX5-S	LX10-S
Capacity t				3	5	10
Traveling mechanism	m/min			20 30
	Motor		Model	ZDY112-4
			Power kw	0.4×2
Electric hoist	Model			CD1		MD1
	Lifting height m			6 9 12 18
	Speed m/min		Lifting	8		8/0.8
			Traveling	20 30
Working class				A3
Power supply				3-Phase 380V 50HZ or by your country voltage
Wheel dia.				130
I beam orbit				Ⅰ32a-Ⅰ45c		Ⅰ40b-Ⅰ63c

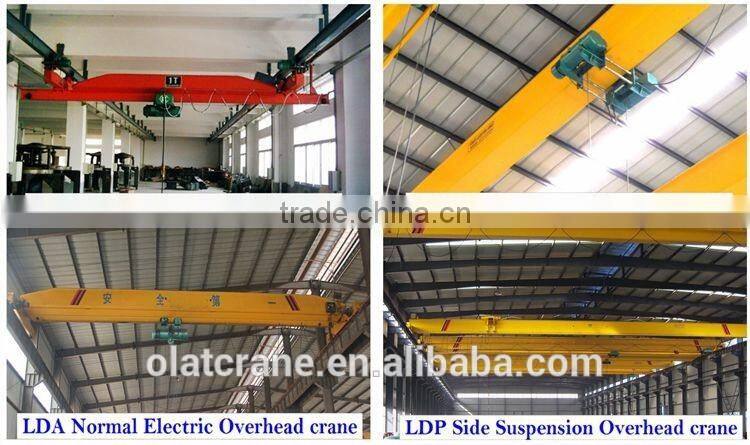

Other type EOT crane

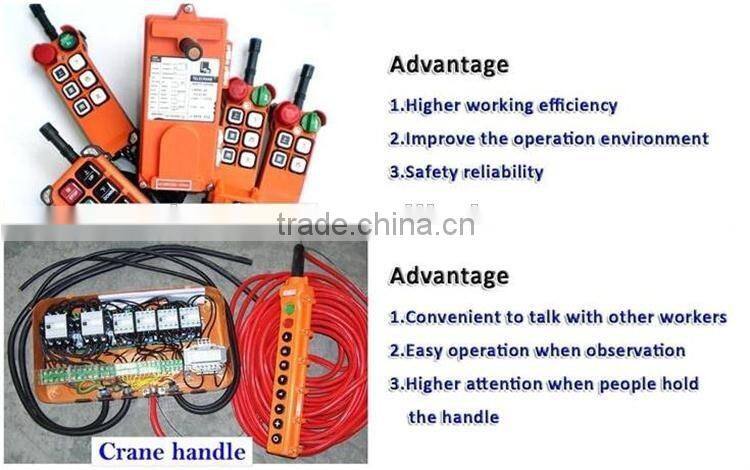

Control methods

Company information

Normal Quotations:

1. Lifting capacity ______ton

2. Single beam or double beam?

3. Standard type or Europe type?

4. Crane Span _______meters (Rail middle center to center distance)

5. Lifting height ______meters (Hook to ground)

6. Industrial voltage _____V, _____HZ, 3Phases

7. Control mode

A. Pendant control B. Remote control C. Cabin control

8. What material does the crane lift?

9. Do you also need us to supply bearing beam, rail and slide wire?

A. Yes B. No

10. Any special design demand on crane?
