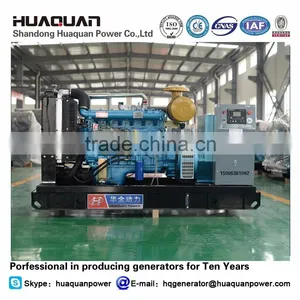

100KW Diesel Generation Price
| Diesel Generators Standard Configurations | |
| 1 | Standard High-level quality engine Ricardo series |
| 2 | Standard High-level quality alternator, Stanford, Brushless, 100% copper wires. Protection Grade: IP23, Insulation Class H. |
| 3 | No-maintenance start battery |
| 4 | After acidification under frame, High-level strong |
| 5 | Electric start, use key start |
| 6 | Standard control panel Spray-print or LCD show panel |
| 7 | Daily fuel tank |
| 8 | High-level shock absorber system |
| 9 | Ripple flexes exhaust pipe, exhaust siphons, flange, Muffler |
| 10 | 40°C radiator as standard |
| 11 | Exhaust silencer |
| 12 | Charger motor for battery. |
| 13 | Standard export box |
| 14 | Manuals |
| 15 | Tools box |
Generator Ratings
Standy Output(KW/KVA) |
Prime Out(KW/KVA) |
P.F |
Phase |
Wires |
Size(mm) |
Weight (KG) |
110/137.5 |
100/125 |
0.8 |
3 |
4 |
2300*720*1500 |
1700 |
Diesel Engine Data
Engine Model |
R6105AZLD |
Cylinder No. |
6 |
Intake Method |
Turbocharged Aspiration |
Engine Type |
Inline,Direct injection,Four-stroke,water cooling |
Displacement(L) |
6.49 |
Bore*Stroke(mm) |
105*125 |
Engine Max outout(kw/kva) |
110/137.5 |
Fuel consumption(g/kw.h) |
≤228 |
Start Method |
DC 24V |
Manufacture |
Ricardo/Weifang |
Alternator Data
Alternator Model |
TZH-100/standard |
Alterantor Capacity |
125kva |
Voltage(V) |
110/220 230/400 |
Speed |
1500/1800 |
Excitation Method |
Brush/Brushless |
Power Factor |
0.8 |
Frequency (HZ) |
50/60 |
The specification of alternator:
Brand |
Stamford, Leroy semor, Maraton and chinese alternator etc. |
Regulator |
AVR automatic voltage regulating |
Excite type |
pret or shunt |
Connecting type |
3PH star, 3PH-DELTA |
Steady frequency change |
0-5% |
No load voltage |
≥95%-105 |
Steady voltage |
≤±1 |
Insulation degree |
H degree |
Exclosure degree |
IP23 |
Diesel Gengine----Ricardo
Ricardo diesel generators, adopting diesel engines as power, which are manufactured by the company introducing British Ricardo technology, bear the features of compact structure, convenient operation, stable operation, low fuel consumption, low emission and low noise. Each performance indicator has reached National standard JB/T8981-1999, also meeting international standard IEC34-1. The product is widely used in numerous industries, including highways, telecommunications, hospitals, securities companies, high-rise buildings, public security, transportation systems, television station and etc.
Features of Ricardo diesel generator sets:
1. Ricardo diesel generators have good power performance, economic and sound reliability, emission reaching Euro II standard
2. Ricardo diesel generators adopt vertical four-cylinder, six-cylinder, water-cooled, four stroke, direct injection high-speed diesel engine.
3. Ricardo diesel generators have passed IS09001 quality system certification.
Huaquan provides a full line of brand new and high quality products.Each and every unit is strictly factory tested Warranty is according to our standard conditions:12 months or 1000 running hour’s ,subject to the earlier one .Service and parts are available from our factory.
Huaquan Power Company professional producing diesel generators, natural gas generators,water pump units,light towers,diesel engines, and spare parts,we offer the variety models generator adopt the famous brand engine like cummins,ricardo,deutz,perkins,isuzu,steyr,weichai,yuchai etc , alternators we adopt the top brand like stamford, marathon,faraday etc.Our generators including silent generators, open generators, ats generators, trailer generators etc.Reliable quality and competitive prices let us get good feedback from our clients.
Company Infor
Professional Manufacturer of Generator set

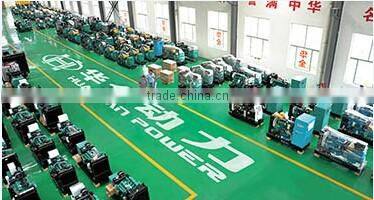

More than 100sets variety models in stock

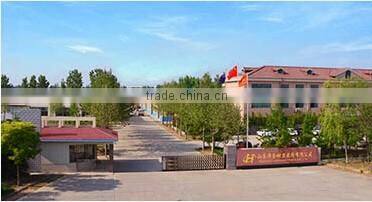

Africa Customers check factory
Asia Customers check factory
We specialized in producing diesel generator. We have exported to many countries and widely used in domestic.
1. Exported countries: Nigeria, Indonesia, Malaysia, Philippine, North Korea, Ghana, Gabon, South Africa, Guinea, Russia, Iraq, Iran, Colombia, Burkina Faso, Liberia, Zambia, etc.
2. Domestic: Send to most of the cities in china, and get high praise from our clients.
1.What's your power range of Generators?
Answer: We can offer the range from 10kva~1000kva.
2.What's your delivery time?
Answer: Generally,we can delivery in 7 days after we get the deposit.
3.What's your payment?
Answer: We accept T/T ,and 30% as the deposit,the balance payment should be paid before shipping.
4.What's your warranty?
Answer: All our products we offer on year warranty.
5.What's your MOQ?
Answer:We accept the MOQ is 1 set.
