Specifications
1>china deutz 100kw generators2>Stanford alternator
3>One year warranty
4>In stock
5>Competitive Price
Long life warranty with spare parts for 100kw china generator/deutz generators
100kw/125kva Deutz diesel generator set details
| 100KW DIESEL GENERATOR SET DETAILS | |||
| Model | HQD100GF | Start Method | DC 24 |
| Generator Prime Power(KW/KVA) | 100/125 | Output Current(A) | 180 |
| Standby Power(KW/KVA) | 110/138 | Voltage(V) | 400/230 |
| Power Factor | 0.8 | Phase | Three phase, Four Wires |
| Frequency(Hz) | 50 | Weight(kg) | 980 |
| Size(mm) | L | W | G |
| 2400 | 700 | 1490 | |
| Diesel Engine Data | |||
| Manufacturer | Deutz | Model | WP4D108E200 |
| Rated Speed(Rpm) | 1500 | Diesel Engine Max Power(KW/H) | 110 |
| Cylinder No. | 4 | Arrangement Type | In-line |
| Bore×Stroke(mm) | 105×120 | Displacement(L) | 6.75 |
| Intake Method | Turbocharged | Compression ratio | 15.5:01 |
| Fuel | Diesel Fuel | Full Load Consumption(g/kw.h) | ≤209 |
| Oil Capacity(L) | 18 | Start Method | Electrical |
| Engine Cooled Method | Radiator Max 50℃,fans are driven by belt with safety guard. | ||
| Alternator Data | |||
| Manufacturer | China Stanford | Model | XN100 |
| Rated Power(KW/KVA) | 100/125 | Excitation Type | Brushless |
| Insulation Class | H | Protection Grade | IP22 |
| Unload Voltage Adjustment | ≥±5% | Stable Voltage Adjustment | ±1% |
| Efficiency (%) | 94.8 | Voltage Control Method | AVR |
Deutz diesel generator set FEATURES
1. Diesel generator adopt the Weifang original Weichai Deutz(Weichai), as the main power support.
Engine charactors: Injection, Inline.Four stroke,water-cooled.
2. Engine produced by Weichai Power company,which cooperation with Germany Deutz Company.
3. Weichai Deutz engine caus its hig performance,strong power output,continous working time and stable work life and global service, sell to all over the world.Deutz engine continous work time more than 72 hours. Because its good quality and good service, widely known by all over the world.
4. Alternator, adopt option brand like China brush alternator, Stamford, Faraday, Marathon,Leroy-somer, Lanzhou,etc so famous brands alternators.
5.This series diesel generator is the special type we promotion for abroad market, and make the highly quality level than other configurations.
6.Diesel generator including abersorber system,and protect the generator during its working time.
7.All generator surface after acidification , and suitalbe wet condtion working .

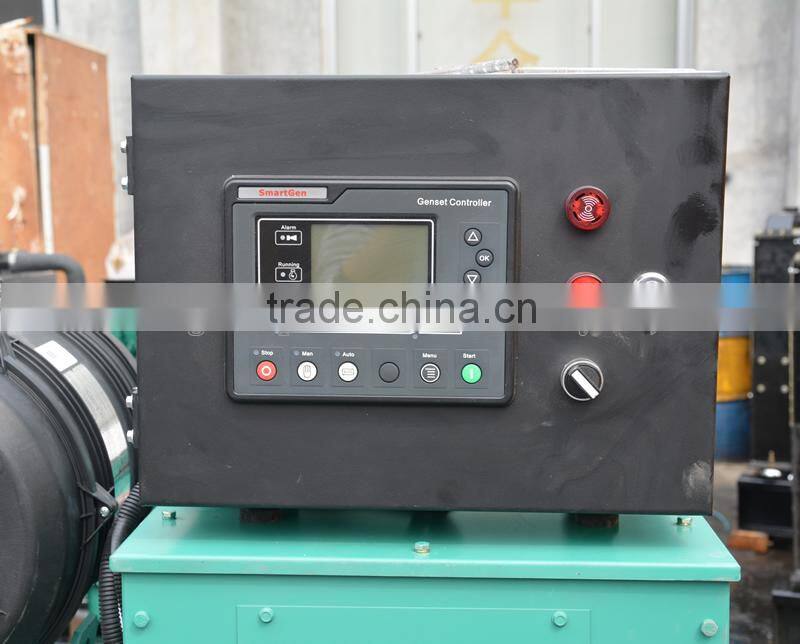

8.Standard control panel design basic the operation,and easy show all meters you care during generator working time.
9.Structure: adopt the high strong steel make the under frame, and easy moved and stable long life.
10.We offer options generators as the below shows:
A.Frequency we offer 50HZ and 60HZ.
B.Voltage: we offer 110/220v, 240v,380v/440v,254v/440 etc,or depend on your request.
C.Phase: we offer three phase or single phase generator
D.Options parts like: Electric speed adjustment, LCD show panel,protection system,Automatic transfer system. Silent canopy, Weatherproof canopy,Fuel tank.

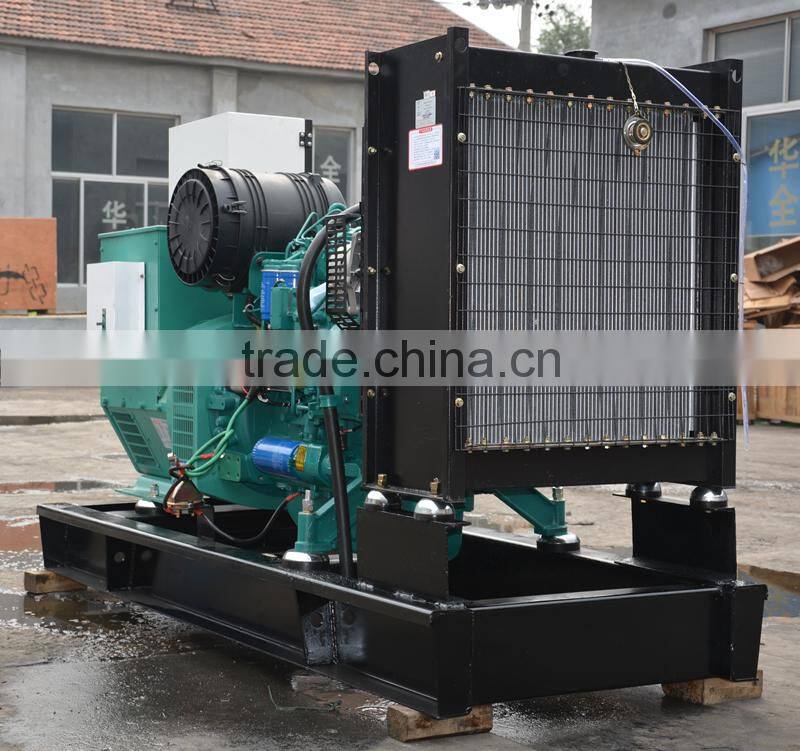

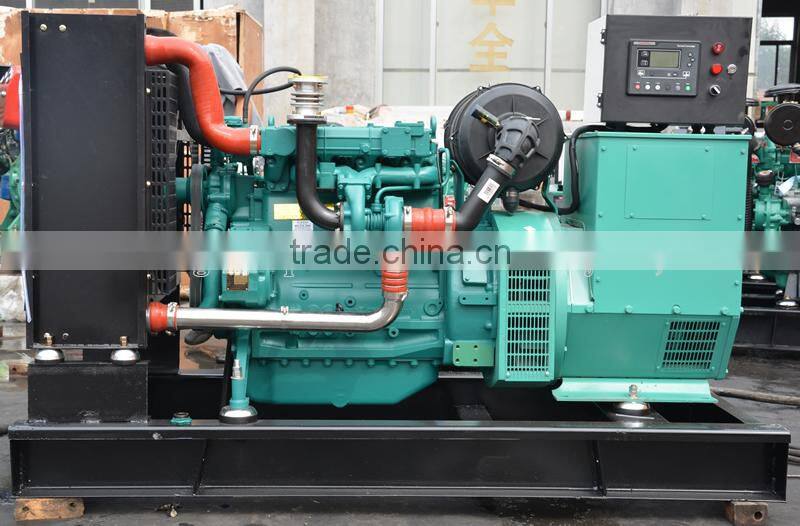

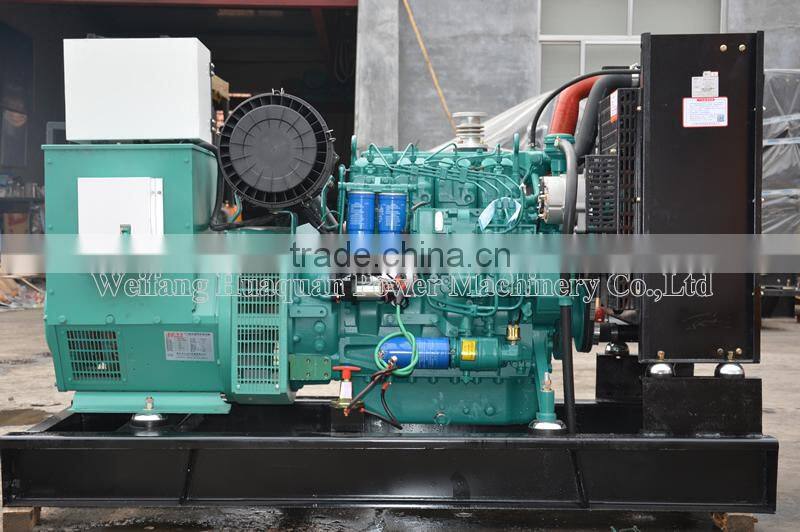

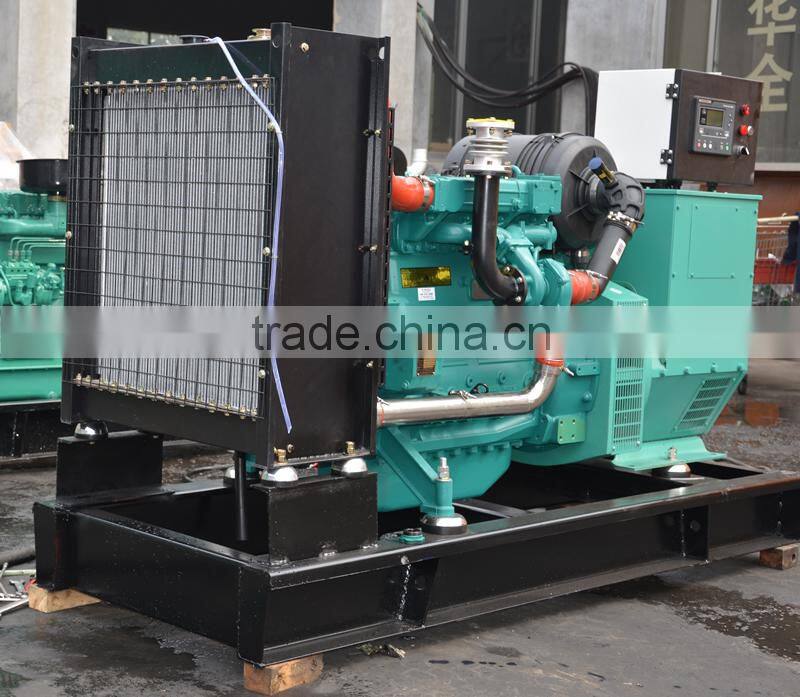

100kw Deutz Diesel Generator Set Picture Show
The Engine Features
Deutz series diesel engines manufactured by joint venture in China are selected for Deutz diesel generators. Manufactured under optimized design and strict quality control, diesel generator sets are in line with ISO8528, German DIN6280, IEC34, VDE0530 as well as Chinese standard GB/T2820. This series are stable and reliable, easy to install, showing excellent performance. Thus, they are very suitable for occasions lack of main power supply.
Deutz series have some advantages of the characteristics:
Deutz diesel generators adopt modular design, featured by compact structure, small size and light weight; this series generator is featured by strong power, low fuel consumption, small vibration and low noise; The best is the strong adaptability, particularly suitable for use in heating, cold and arid regions.
We can offer Deutz Series Diesel Generators from 25kw to 150kw.
OPTIONAL
1.Mute case
2.ATS (automatic transfer switch)
3.Mobile Trailer
Sales Promises
Huaquan provides a full line of brand new and high quality products.Each and every unit is strictly factory tested Warranty is according to our standard conditions:12 months or 1000 running hour’s ,subject to the earlier one .Service and parts are available from our factory.
