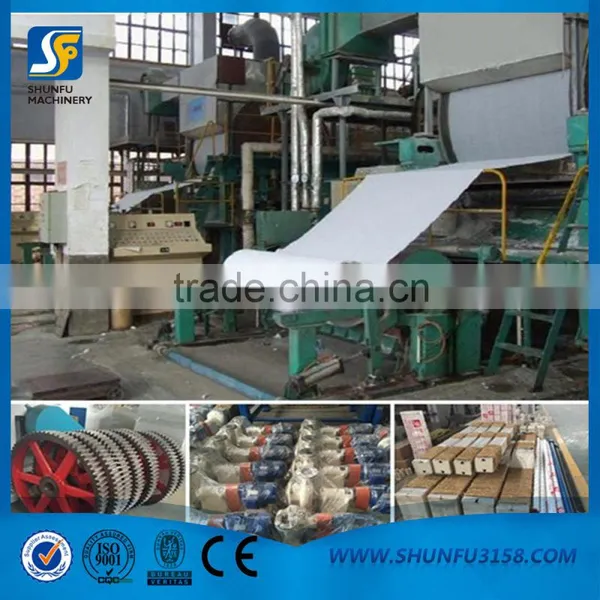

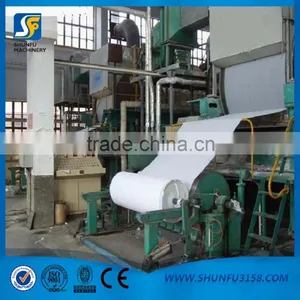

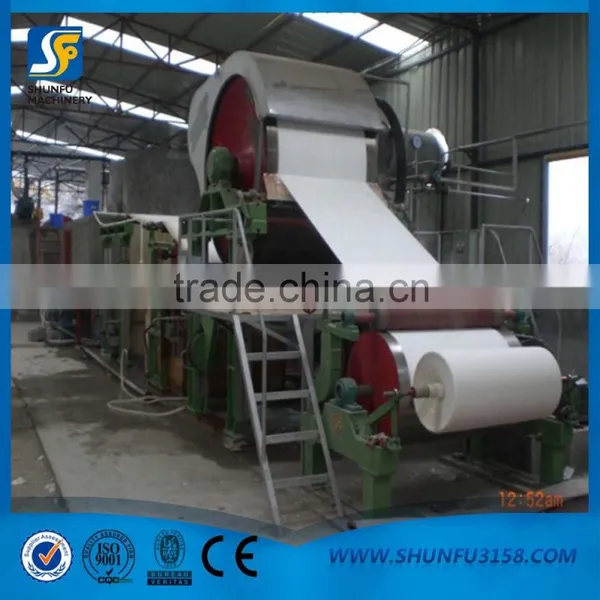

1092mm toilet paper machine(2ton per day)
Technical parameters
1. Output paper style: high& medium grade tissue paper;
2. Raw material: recycle paper, wood pulp;
3. Output paper weight: 16-40g/m2;
4. net paper width: 1092mm;
5. Width of cylinder mould: 1450mm;
6. Capacity: 2T/D;
7 Rail gauge:1800mm;
8 Drive way: AC inverter speed
Structure of main part
1. Cylinder section: 1000mm×1450mm cylinder mould 1set, 380mm×1450mm couch roll 1set,
rubber hardness HSD 38±2.
2. Dryer section: 2000mm×1450mm dryer can 1set, 350mm×1450mm touch roll 1set, mechanical
press device. Rubber hardness HSD 90±2.
3. Winding section: 1092mm rewinding & perforating machine and paper cutting machine.
All Equipments
NO. |
item |
quantity(set) |
1 |
1092mm tissue paper making machine |
1 |
2 |
double layer Exhausted hood of dryer can |
1 |
3 |
Φ700mm axial-flow ventilator |
1 |
4 |
Model-33 Roots vacuum pump |
1 |
5 |
1092mm winding machine |
1 |
6 |
1092mm rewinding &perforating machine |
1 |
7 |
1092mm paper cutting machine |
1 |
8 |
Suction box |
1 |
9 |
3m3high consistency hydrapulper |
1 |
10 |
0.9m2 High frequency vibration screen |
1 |
11 |
Φ380mm double disc pulp refiner |
1 |
12 |
35m3 bleacher |
2 |
13 |
Φ700mmThruster |
4 |
14 |
606sand remover 3 pcs |
1group |
15 |
4 inch pulp pump |
4 |
16 |
1ton boiler(burn coal) |
1 |
All accessory electric motor
NO. |
item |
power(kw) |
grade |
quantity(set) |
1 |
1092mm tissue paper making machine |
11 |
adjustable speed motor |
1 |
2 |
Φ700mm axial-flow ventilator |
4 |
4 |
1 |
3 |
1092mm rewinding &perforating machine |
3 |
adjustable speed motor |
1 |
4 |
1092mm paper cutting machine |
2.2 |
4 |
1 |
5 |
model 33 roots vacuum pump |
5.5 |
4 |
1 |
6 |
3m3high consistency hydrapulper |
37 |
6 |
1 |
7 |
0.9m2high frequency vibration screen |
3 |
4 |
1 |
8 |
Φ380mm double disc refiner |
37 |
4 |
1 |
9 |
35m3 pulp washer |
3 |
4 |
2 |
10 |
Φ700mm thruster |
11 |
6 |
4 |
11 |
4inch pulp pump |
5 |
4 |
4 |
12 |
1ton boiler(burn coal) |
5.5 |
4 |
2 |

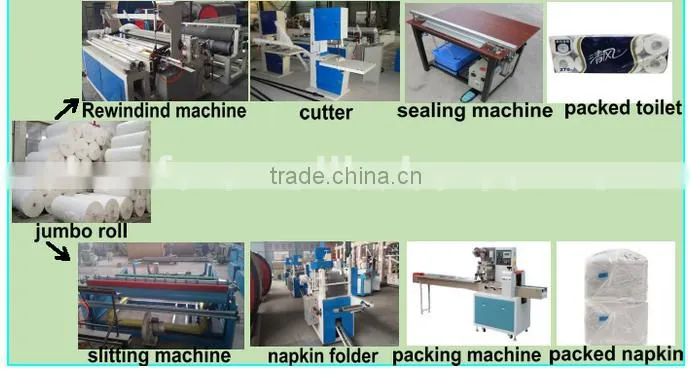

Flow chart

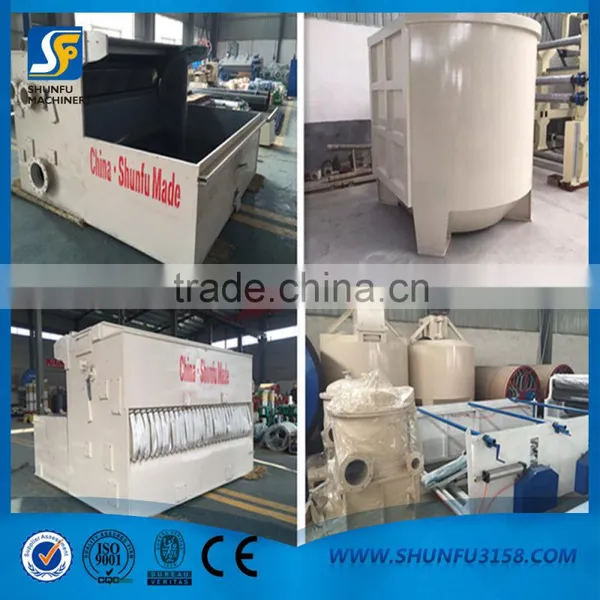

Main equipments

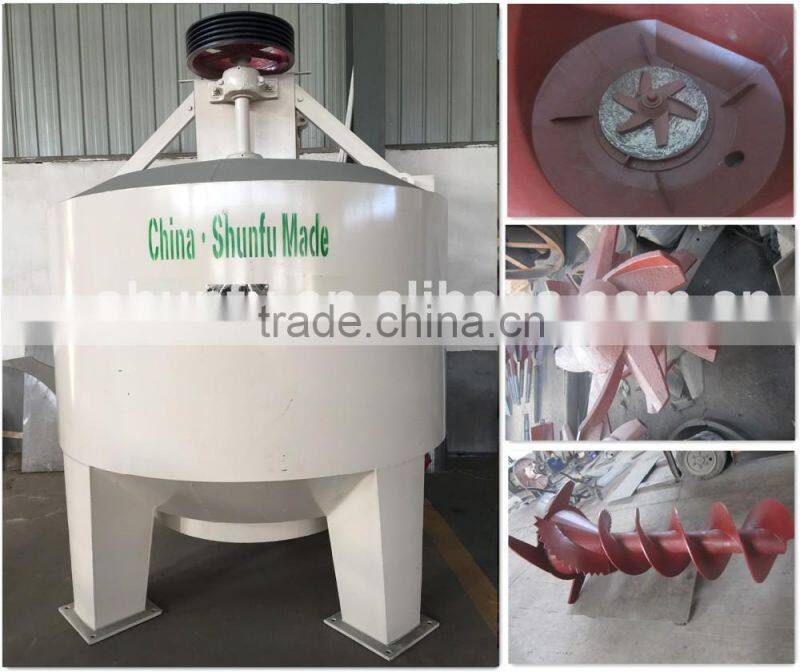

1. Hydrapulper
This product is used to pulp the pulpboard, newspaper, waste paper.
2. Dryer
This is one main part on the paper making machine, used to dry the wet paper sheet.
3. Cylinder mould
This is main parts of paper making machine, it used to make the paper pulp to wet paper sheet.

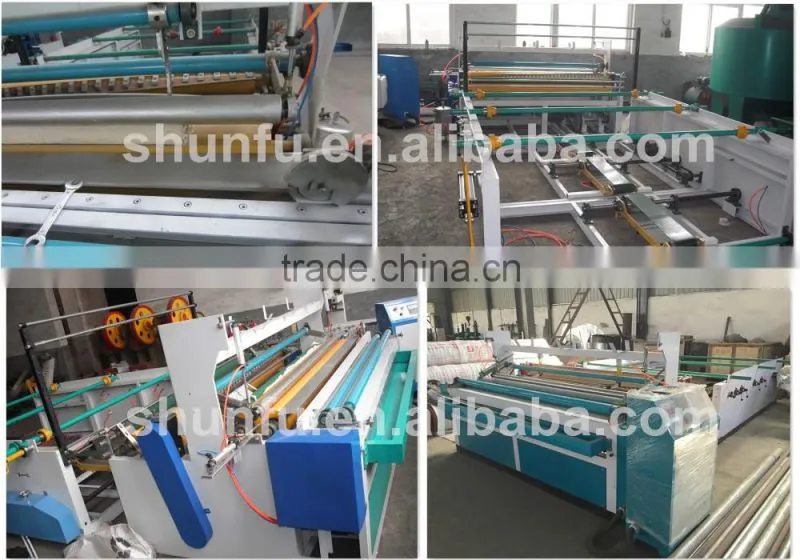

4. Rewinding and slitting machine
This is the main processing equipment after paper making machine, it used to make the
rewinding and slitting the jumbo roll to small bobbin paper, prepared for the folding machine.
The specification of bobbin paper can as customer's requirement.

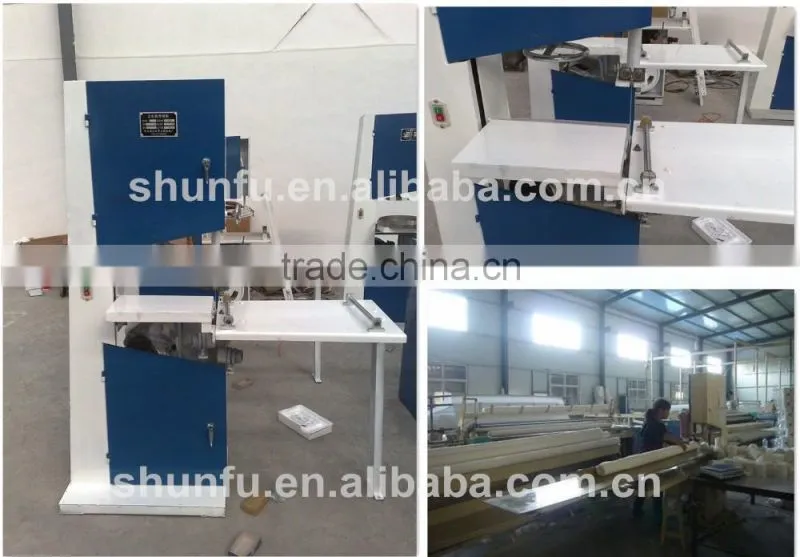

5. Toilet paper cutting machine

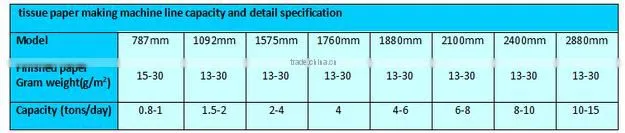

Related paper machine model
About us
Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. Was founded in 1988.
We are specialized in the production paper making machinery, pulping equipment, paper
egg tray making machine and paper processing equipment. Our products had been certificated
by ISO9001 and exported to many countries, such as Uzbekistan, Russia, Kyrgyzstan, Nigeria, Ukraine, Botswana,Libya, Algeria, El Salvador, Lebanon, Moldova, Bolivia.
Hello, this is Dan.
If you are interested in our paper making machine or you want to know more about our
products, please contact me or by sending me email at any time.
We are willing to establish long-term relationship with new and old customers at home
and abroad to achieve mutual benefit . It will be a great honour to serve for you.
Service can knit the future, credibility can cast the brand
FAQ
1.How long it will take to get the quotation?
we usually give reply within 24hours after getting your inquiry.
If you are urgent to get the quotation,please feel free to call me or tell us by email,then we can reply
you as the first priority.
2.Can you make paper mill design for us?
Yes,we have professional team with rich experience of paper mill design by CAD software.you only
need to tell us your open land dimension,we will make your future paper mill design.
3.How about your machine quality,we are worry about the quality
SF is a mature brand in China,more than 30 years manufacuturing experience of different kinds of
paper machines.We strictly manufacture and manage according to IOS9001:2008 System.and can
match all the CE standard or more strict standard.our paper machine is running well in more than 20
countries.we are gold supplier on alibaba already 4 years.
4.Your machine price is high, is there any discount?
we always provide high quality paper machines,we are paying more attention on oversea market,
because of communication time after sales,and also it need very long time to send new parts.our
paper machines have enough quality standard to make sure the machine can work more than the
real warranty period.our marketing style is quality=price and price=quality,the price will be acceptable
for our clients and durable for our machines.anyhow,when we will negotiate the price with each other
during our meeting in factory.and get a good satisfaction.
5.How we visit your factory and what will be the procedure?
Our company located in Shangnian Zone, Qinyang city, zhengzhou city, henan province. we will pick
you up from airport as well as the train station in Zhengzhou city.we will take you to see our machine
running in our Chinese clients' paper mill.welcome you and your team to visit us at any time!
6.Could your engineer teach and train our worker and stay in our factory for long time?
Yes,we have very large engineer installation team,they can train and teach your worker to operate
paper machine,but you should pay them salary.
