1880mm Toilet Paper Machinery(5-6 Ton per Day)

1880mm Toilet Paper Machinery(5-6 Ton per Day) thumbnail-1
1880mm Toilet Paper Machinery(5-6 Ton per Day) thumbnail-2
1880mm Toilet Paper Machinery(5-6 Ton per Day) thumbnail-3
1880mm Toilet Paper Machinery(5-6 Ton per Day) thumbnail-4
1880mm Toilet Paper Machinery(5-6 Ton per Day) thumbnail-5
1880mm Toilet Paper Machinery(5-6 Ton per Day) thumbnail-6
1880mm Toilet Paper Machinery(5-6 Ton per Day) photo-1

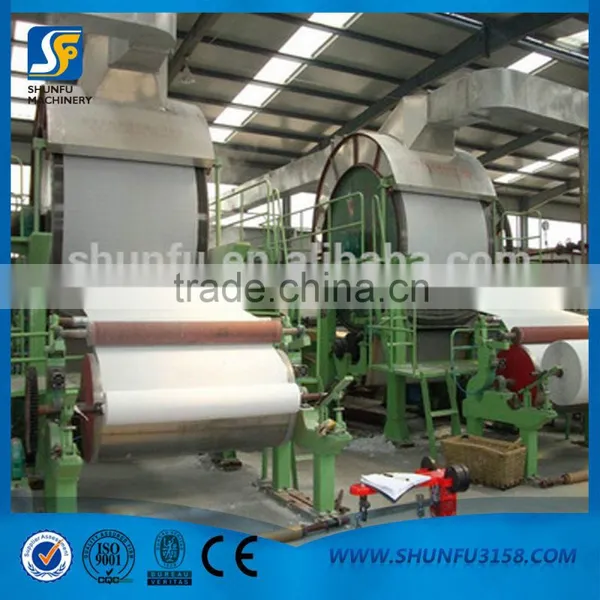

1880mm Toilet Paper Machinery(5-6 Ton per Day) photo-2

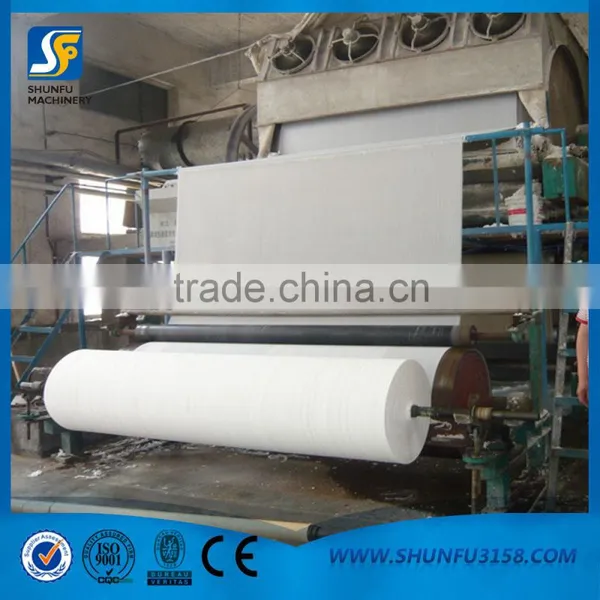

1880mm Toilet Paper Machinery(5-6 Ton per Day) photo-3

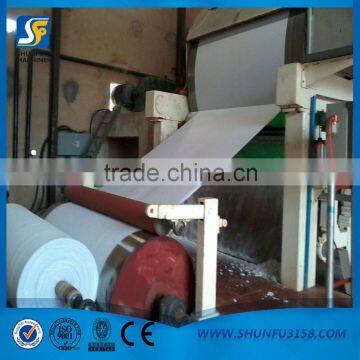

1880mm Toilet Paper Machinery(5-6 Ton per Day) photo-4

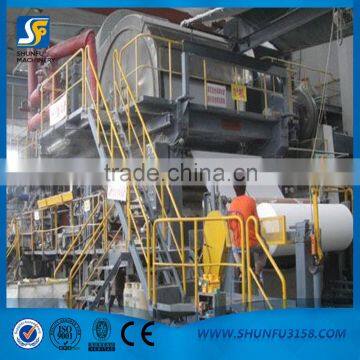

1880mm Toilet Paper Machinery(5-6 Ton per Day) photo-5

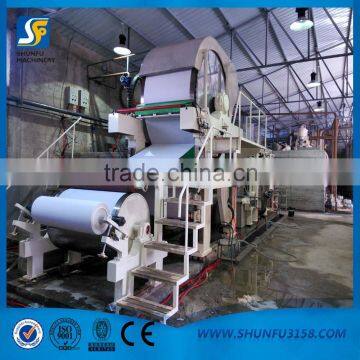

1880mm Toilet Paper Machinery(5-6 Ton per Day) photo-6
US$ 140,000 - 180,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Paper Product Making Machinery
Computerized:
Yes
Contact Supplier Request Quote Chat Now
Qinyang City Shunfu Paper Making Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Paper Product Making Machinery
Computerized Yes
Place of Origin Henan, China
Brand Name Shunfu
Model Number 1880mm
Voltage 220V/380V
Power(W) 200W
Dimension(L*W*H) Configuration
Weight 1500kg
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

          1880mm toilet paper machinery(5-6 ton per day)

Technical data

1. Output paper  top quality toilet paper,tissue paper.

2. Raw material  virgin pulp

3. Output weight  13-20gsm

4. Capacity  5tons per day

5. Net paper width  1900mm

6. Wire width  2350mm

7. Working speed  170-190m/min

8. Design speed  210m/min

9. Rail gauge  2900mm

10. Drive way  AC frequency converter and adjustable speed, processing transmission.

NO.

Equipment

Qty(set)

1

1880mm single cylinder single wire & single felt high speed tissue paper machine

1

2

Double-dryer exhaust hood

1

3

800axial-flow fan

1

4

Mould former

1

5

15 type roots pump

1

6

Suction box

2

7

5m3 High consistence hydrabrusher

1

8

380 double disc refiner

2

9

0.6pressure screen

1

10

606 desander 12pcs

4 group

11

Diameter700thruster

4

12

8inch pulp pump

2

13

6inch pulp pump

6

14

6inch white water pump

2

15

Two-phase flow pump-150

4

16

workbench

1

17

Frequency control cabinet

1

18

Air pump cabinet

1

All the accessory motors

Equipment

Motor(kw)

Grade

Qty(set)

Main machine

40

4

1

paper Winding machine

4

4

1

Blower

(exhaust hood of dryer can)

4

4

1

Draft fan

(exhaust hood of dryer can)

7.5

4

1

15type roots pump

22

4

1

5m3 Hydrabrusher

55

4

1

Double-disc refiner

37

6

2

Pressure screen

40

4

1

700 Impeller

11

6

4

8inch pulp pump

22

4

2

6inch pulp pump

7.5

4

6

6inch white water pump

11

4

2

Air pump cabinet

5.5

2

1

Main equipments

1. Hydrapulper

This product is used to pulp the pulpboard, newspaper, waste paper.

2. Dryer

This is one main part on the paper making machine, used to dry the wet paper sheet.

3. Cylinder mould

This is main parts of paper making machine, it used to make the paper pulp to wet paper sheet.

4. Rewinding and slitting machine

This is the main processing equipment after paper making machine, it used to make the rewinding

and slitting the jumbo roll to small bobbin paper, prepared for the folding machine. The specification

of bobbin paper can as customer's requirement.

Excellent characters

1.high speed;

2.good quality;

3.stable working;

4.saving power;

petitive price;

6.high production capacity;

fessional engineers;

8.OEM;

9.can design according to your request.

About us

Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. Was founded in 1988. We are

specialized in the production paper making machinery, pulping equipment, paper egg tray making

machine and paper processing equipment. Our products had been certificated by ISO9001 and

exported to many countries, such as Uzbekistan, Russia, Kyrgyzstan, Nigeria, Ukraine, Botswana,

Libya, Algeria, El Salvador, Lebanon, Moldova, Bolivia.

1880mm toilet paper machinery(5-6 ton per day)

Perfect service

(1)technical consultation ;

(2)detailed design of factory ;

(3)installing and testing the whole production line;

(4)training engineers and workers;

(5)supplying spare part for long time;
