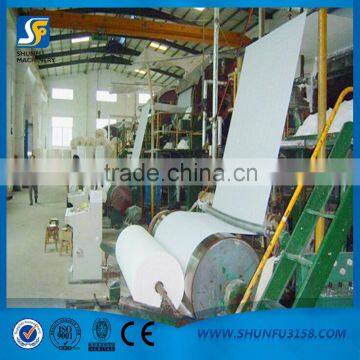

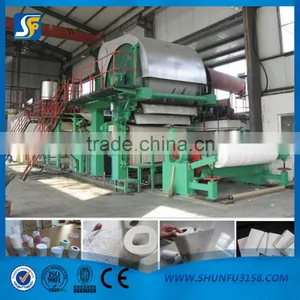

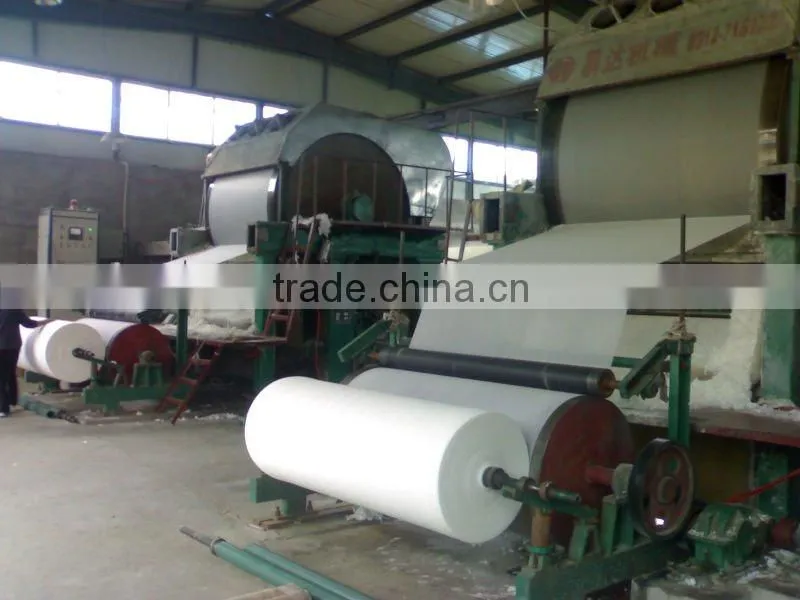

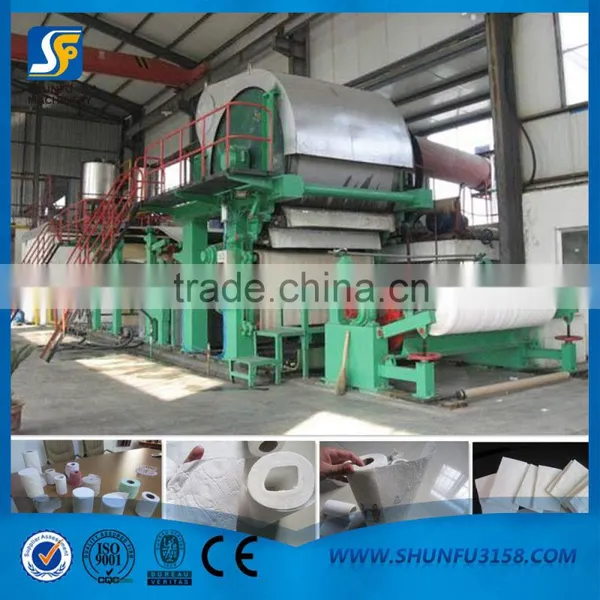

Help Center1760mm High Speed Tissue Paper Machine
Related Products
-
1575 Paper Making Machine With Reasonable PerformanceUS$ 110,000 - 163,000MOQ: 1 Set -
Automatic 2400 High Speed Tissue Paper MachineUS$ 180,000 - 210,000MOQ: 1 Set
-
China 1575mm Complete Set Toilet Paper Making LineUS$ 110,000 - 150,000MOQ: 1 Set
-
PRICE of 787 Model Tissue Paper Making MachineryUS$ 30,000 - 35,000MOQ: 1 Set
-
Supply 1092mm and 1575mm Toilet Paper Machine Complete LineUS$ 40,000 - 50,000MOQ: 1 Set
1.Cylinder part: stainless-steel cylinder mould Φ1500×2200mm 1 set,pulp spray cylinder molding
machine 1set,adjustable speed pulp roll make paper even ,consistency: 0.1-0.15%.wire mesh with
more than 90-100layers.there is no pulp and vestige.This make paper even and have strength of
landscape orientation and portrait.
2. Couch roll: φ400×2350×2900mm ,roll is made of seamless pipe ,pipe width:14mm ,roll is covered
with rubber, rubber width :25mm, rubber shore hardness A30-35°.
3. Wire part is jointed by profiled bar, width of profile bar is 10mm.
4. Felt washer equipment of wire part: water pressure piping schema ,which can move,ceramics
nozzle,which is hard to be worn.
5. Felt washing section :high pressure washer 2sets, water pressure piping schema ,which can move,
water pipe is made of stainless steel pipe with ceramics nozzle ,which is hard to be worn.
6. Vacuum suction box:4sets ,one is beak pattern suction box with width of 150mm,the other three
with width of 250mm ,body of box is jointed by armor plate ,material is polythene.
7. This Stander is box pattern cast iron stander, material is HT200,vertical bar is 400mm wide, it is
special width ,height of the bar of dryer is 400mm.
8. Dryer: φ2500×2200×2900mm, rubber shore hardness 210°
9. Cylinder press knife use steam as power ,including control box, steam drum.
10. Touch roll: φ550×2350×2900mm,cast iron roll is covered by robber ,width of robber is 25mm,
rubber shore hardness 93°steam pressure .
11. Felt roll: φ194×2450×2900mm,seamless pipe (pipe width 12mm).the cover is chrome plated,.
12. Unfold roll: φ230×2350×2900mm,it is covered with rubber, rubber shore hardness 93°.
13. Exhaust hood: breathing hood, blower, transpire hot wind.
14. Electrical strength felt, stream adjustable felt machine.

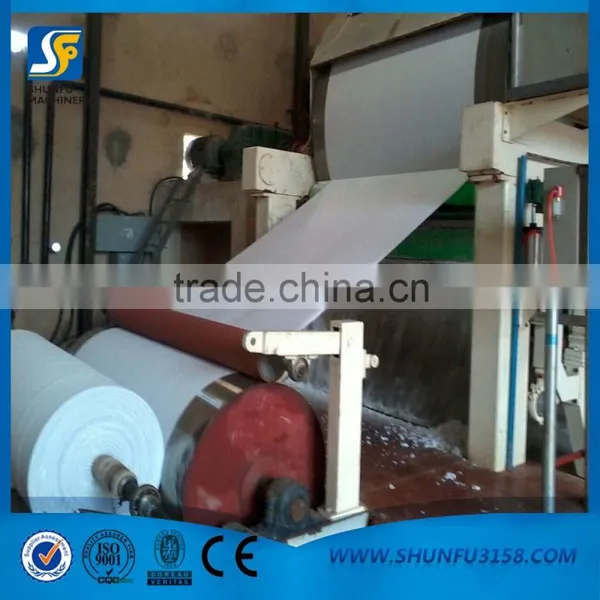

15. Winding part: cold cylinder φ900×2200×2900mm,bearing 113520,width is 14mm. This Stander
is box pattern cast iron stander, it is jointed by steel plate ,unfolding paper roll φ73mm,arch roll, cover
is chrome plated. soft pressed rollφ240×2200mm,seamless pipe ,it is covered by rubber, rubber
shore hardness 35°,bearing 3612,winding paper rollφ50mm, seamless pipe.
16. Basic section: 360×2700 three vat track 2sets
230×2100 single vat track 2sets
230×1500 single vat track 4sets
Motor, Deceleration machine, track 8sets
17. drive section:
(drive point) (Deceleration machine) (motor)
(cylinder ) JZQ500 37KW
( winding machine ) JZQ250 4KW
Frequency conversion adjustable speed Sanken
of Japan(Deceleration machine use complete gear surface )

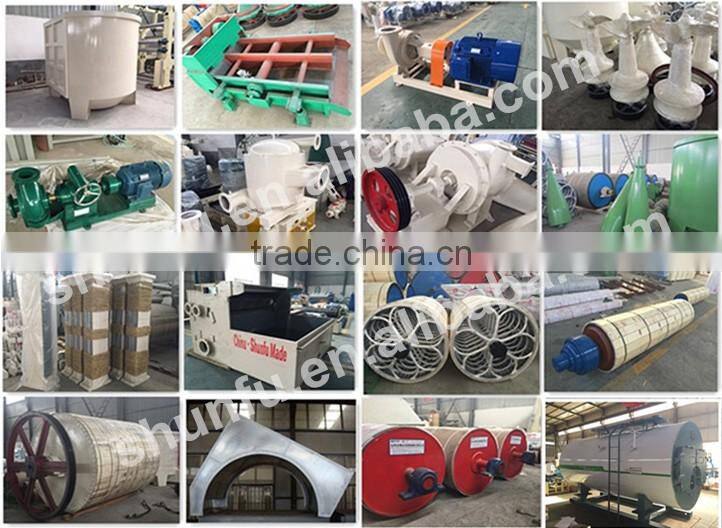

Pulping equipment
Number |
Equipment |
Quantity (SET) |
1 |
5m3high consistency hydrapulper |
1 set |
2 |
φ380 double disk refiner |
2 set |
3 |
0.6 m2pressure screen |
1 set |
4 |
606disander(12sets) |
4groups |
5 |
φ700 thruster |
4set |
6 |
8 inch pulp pump |
2 sets |
7 |
6 inch pulp pump |
6sets |
8 |
6 inch water pump |
2sets |
9 |

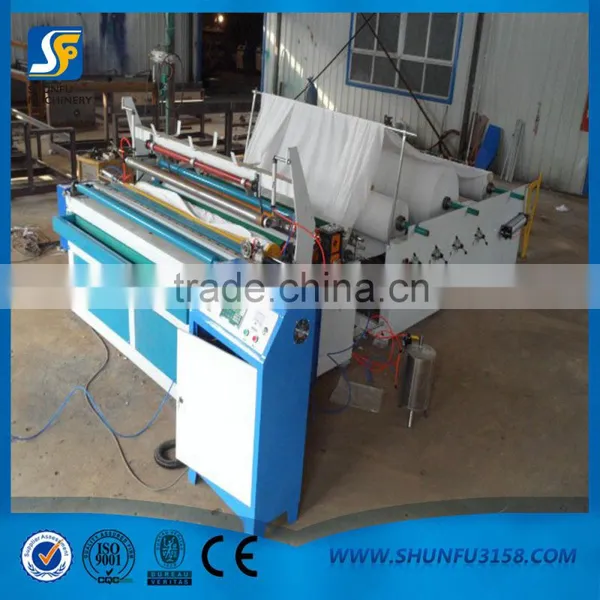

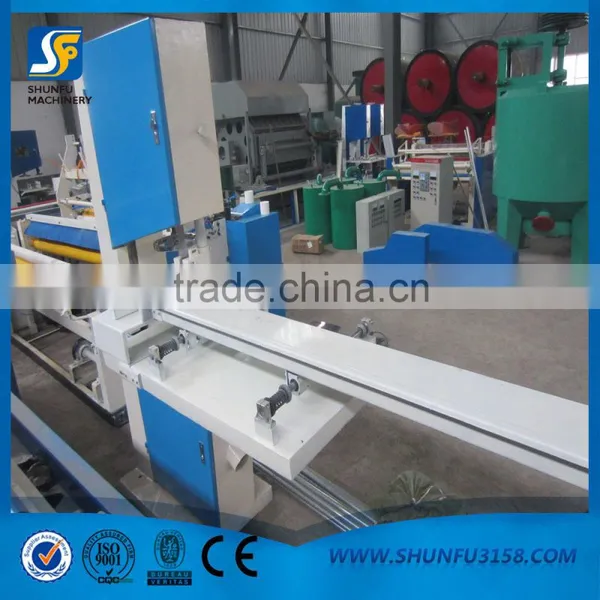

rewinding& perforated machine |
1set |
10 |
cutter |
1set |
Raw material
Shunfu Pur factory!
Business, our common goal is a win-win situation
