787-1092 Model Toilet Paper Machine(capacity:1t/d)

787-1092 Model Toilet Paper Machine(capacity:1t/d) thumbnail-1
787-1092 Model Toilet Paper Machine(capacity:1t/d) thumbnail-2
787-1092 Model Toilet Paper Machine(capacity:1t/d) thumbnail-3
787-1092 Model Toilet Paper Machine(capacity:1t/d) thumbnail-4
787-1092 Model Toilet Paper Machine(capacity:1t/d) thumbnail-5
787-1092 Model Toilet Paper Machine(capacity:1t/d) thumbnail-6
787-1092 Model Toilet Paper Machine(capacity:1t/d) photo-1
787-1092 Model Toilet Paper Machine(capacity:1t/d) photo-2
787-1092 Model Toilet Paper Machine(capacity:1t/d) photo-3
787-1092 Model Toilet Paper Machine(capacity:1t/d) photo-4
787-1092 Model Toilet Paper Machine(capacity:1t/d) photo-5
787-1092 Model Toilet Paper Machine(capacity:1t/d) photo-6
US$ 30,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, toilet paper machine
Processing Type:
Paper Slitting and Rewinding Machine
Contact Supplier Request Quote Chat Now
Qinyang City Shunfu Paper Making Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Other, toilet paper machine
Processing Type Paper Slitting and Rewinding Machine
Place of Origin Henan, China
Brand Name shun fu
Model Number 787mm
Voltage 220V/380V
Power(W) 200-400KW
Dimension(L*W*H) 2800X1400X1700MM
Weight 3000kg
Certification Other, ISO9001:2008
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

                                         787mm toilet paper machine



contact mr.Dan 24hours hotline: 0086- 15978722592



Technical parameter

1.output paper style:medium&high grade toilet paper,tissue paper

2. raw material: recycle paper

3.capacity: 0.8-1td

4. net paper width:787mm

5.output paper weight: 18-40g/m2

6. rail gauge:1300mm

ing speed: 40-100m/min

8. drive way: AC inverter speed, section drive



Structure of all equipments

1.cylinder section:700mm×1100mm cylinder mould 1set, 250mm×1100mm couch roll 1set,rubber

shore hardness 38±2.

2.dryer section:1000mm×1100mm dryer can 1 set, 220mm×1100mm touch roll 1set,1group scraper

knife. rubber shore hardness 90±2.pneumatic pressure device.

3.paper cutting section: 787mm rewinding and perforating machine 1 set,787mm paper cutting

machine 1set

4.drive and control section: AC inverter speed, section drive;



All equipments

NO.

name of equipment

quantity(set)

1

787mm tissue paper machine.

1

2

exhaust hood of dryer can

1

3

500mm axial-flow ventilator

1

4

1.5m3High consistency hydrapulper

1

5

0.8m2 High frequency vibrating screen

1

6

250mm pulp refiner

1

7

500mm Thruster

2

8

25m3bleacher

1

9

4 inch Pulp pump

3

10

Vertical mixer

2

11

33roots vacuum pump

1

12

787mm rewinding& perforating machine

1

13

787mm paper cutting machine

1

14

0.3T boiler(burn coal)

1



Accessory electric motor

No.

         Equipment

power(kw)

grade

Quantity(set)

1

787mm tissue paper machine.

5.5

4

1

2

500mm axial-flow ventilator

3

4

1

3

1.5m3 High consistency hydrapulper

7.5

4

1

4

0.8m2 High frequency vibrating screen

3

4

1

5

250mm pulp refiner

5.5

4

1

6

500mm Thruster

5.5

4

2

7

25m3bleacher

3

4

1

8

4 inch Pulp pump

4

4

4

9

Vertical mixer

3

4

2

10

33roots vacuum pulp

4

4

1

11

787mm rewinding&perforating machine

3

4

1

12

787mm paper cutting machine

1.1

4

1

13

0.3T boiler(burn coal)

4

4



Flow chart



Main equipments

1. Hydrapulper

This product is used to pulp the pulpboard, newspaper, waste paper.



2. Dryer

This is one main part on the paper making machine, used to dry the wet paper sheet.



3. Cylinder mould

This is main parts of paper making machine, it used to make the paper pulp to wet paper sheet.

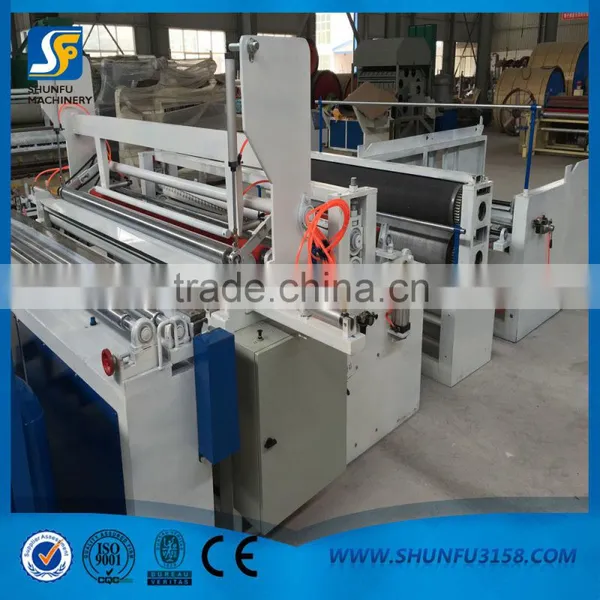

4. Rewinding and slitting machine

This is the main processing equipment after paper making machine, it used to make the rewinding

and slitting the jumbo roll to small bobbin paper, prepared for the folding machine. The specification

of bobbin paper can as customer's requirement.

787-1092 model Toilet paper machine(capacity:1t/d)



5. Toilet paper cutting machine



Related paper machine model



About us

Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. Was founded in 1988. We are

specialized in the production paper making machinery, pulping equipment, paper egg tray making

machine and paper processing equipment. Our products had been certificated by ISO9001 and

exported to many countries, such as Uzbekistan, Russia, Kyrgyzstan, Nigeria, Ukraine, Botswana,

Libya, Algeria, El Salvador, Lebanon, Moldova, Bolivia.

Qinyang Shunfu Paper Making Factory professional in manufacturing Paper making machine.

We can design and prodcue product line according to customer's requirement.



Welcome to visit our factory!



Business, our common goal is a win-win situation



contact Mr. Dan              skype:     shunfu168



24hours hotline: 0086-15978722592



Best service:



1. We will provide you all technical consultation and make the draw and proposal for you.



2. We will send technicians to install and test the machine for you.



3. We will train skilled workers for you.



4. We will supply best after-sale service.
