Home > Products > Tissue/Toilet/Facial/Napkin Paper Making Machine > 787-2100 Small Type Tissue Paper Machine,1-6T/D, Waste Paper, Pure Wood Pulp
787-2100 Small Type Tissue Paper Machine,1-6T/D, Waste Paper, Pure Wood Pulp
- qingdao port(other port is also ok)
- T/T Money Gram
You May Like
Product Details
| Condition | New | Type | Other, Toilet tissue paper machine | |
| Computerized | Yes | Place of Origin | Henan, China | |
| Brand Name | shun fu | Model Number | 1092mm-2100mm | |
| Voltage | 380V 50Hz | Power(W) | 200W | |
| Dimension(L*W*H) | Configuration | Weight | 1500kg | |
| Certification | ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
787-2100 small type Tissue paper machine,1-6T/D, waste paper, pure wood pulp
Technical parameters
1. Output paper style: high& medium grade tissue paper;
2. Raw material: recycle paper, wood pulp;
3. Output paper weight: 16-40g/m2;
4. net paper width: 1092mm;
5. Width of cylinder mould: 1450mm;
6. Capacity: 2T/D;
7 Rail gauge:1800mm;
8 Drive way: AC inverter speed
Structure of main part
1. Cylinder section: 1000mm×1450mm cylinder mould 1set, 380mm×1450mm couch roll 1set, rubber
hardness HSD 38±2.
2. Dryer section: 2000mm×1450mm dryer can 1set, 350mm×1450mm touch roll 1set, mechanical
press device. Rubber hardness HSD 90±2.
3. Winding section: 1092mm rewinding & perforating machine and paper cutting machine.
All Equipments
NO. | item | quantity(set) |
1 | 1092mm tissue paper making machine | 1 |
2 | double layer Exhausted hood of dryer can | 1 |
3 | Φ700mm axial-flow ventilator | 1 |
4 | Model-33 Roots vacuum pump | 1 |
5 | 1092mm winding machine | 1 |
6 | 1092mm rewinding &perforating machine | 1 |
7 | 1092mm paper cutting machine | 1 |
8 | Suction box | 1 |
9 | 3m3high consistency hydrapulper | 1 |
10 | 0.9m2 High frequency vibration screen | 1 |
11 | Φ380mm double disc pulp refiner | 1 |
12 | 35m3 bleacher | 2 |
13 | Φ700mmThruster | 4 |
14 | 606sand remover 3 pcs | 1group |
15 | 4 inch pulp pump | 4 |
16 | 1ton boiler(burn coal) | 1 |
All accessory electric motor
NO. | item | power(kw) | grade | quantity(set) |
1 | 1092mm tissue paper making machine | 11 | adjustable speed motor | 1 |
2 | Φ700mm axial-flow ventilator | 4 | 4 | 1 |
3 | 1092mm rewinding &perforating machine | 3 | adjustable speed motor | 1 |
4 | 1092mm paper cutting machine | 2.2 | 4 | 1 |
5 | model 33 roots vacuum pump | 5.5 | 4 | 1 |
6 | 3m3high consistency hydrapulper | 37 | 6 | 1 |
7 | 0.9m2high frequency vibration screen | 3 | 4 | 1 |
8 | Φ380mm double disc refiner | 37 | 4 | 1 |
9 | 35m3 pulp washer | 3 | 4 | 2 |
10 | Φ700mm thruster | 11 | 6 | 4 |
11 | 4inch pulp pump | 5 | 4 | 4 |
12 | 1ton boiler(burn coal) | 5.5 | 4 | 2 |
Enterprises through the ISO 9001: 2008 international quality certification

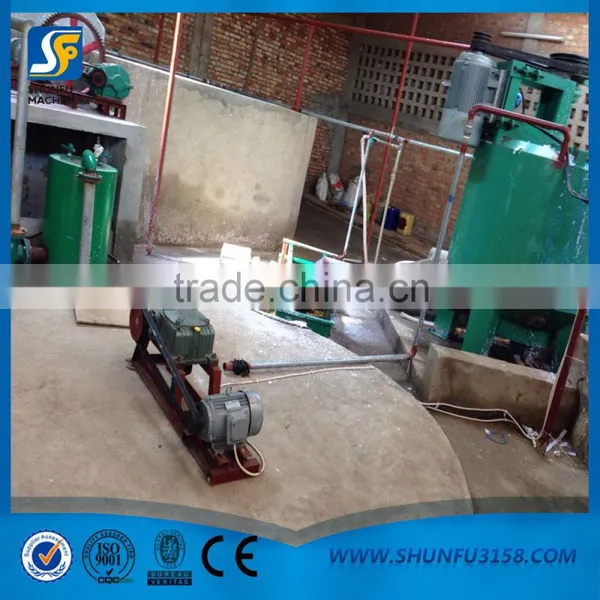

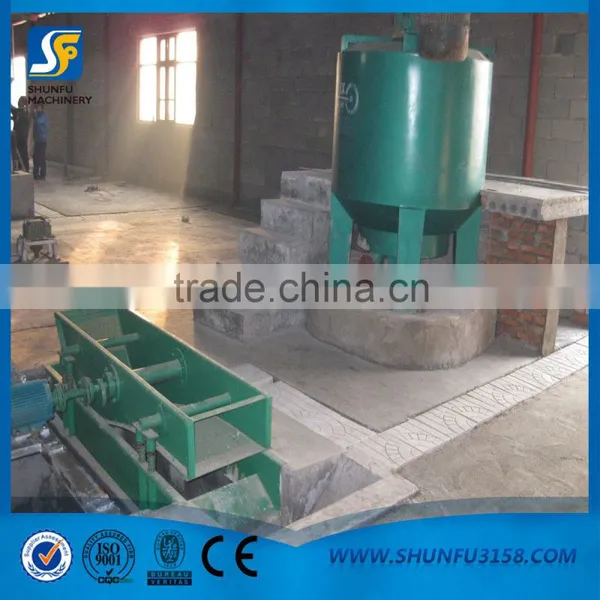

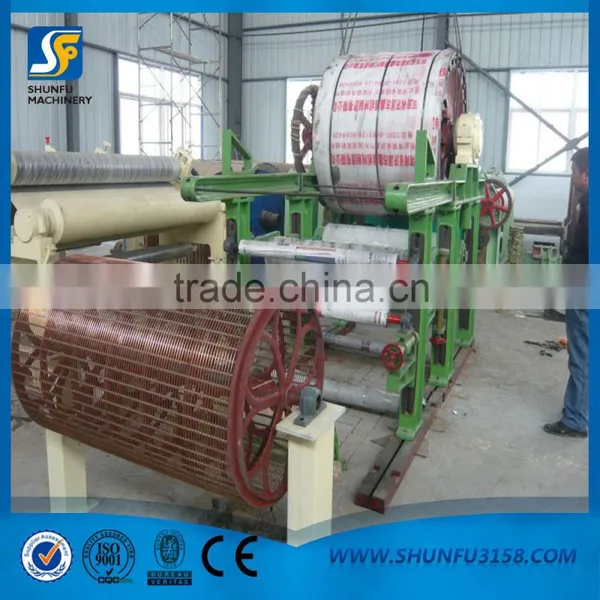

Euipment Details
Flow chart

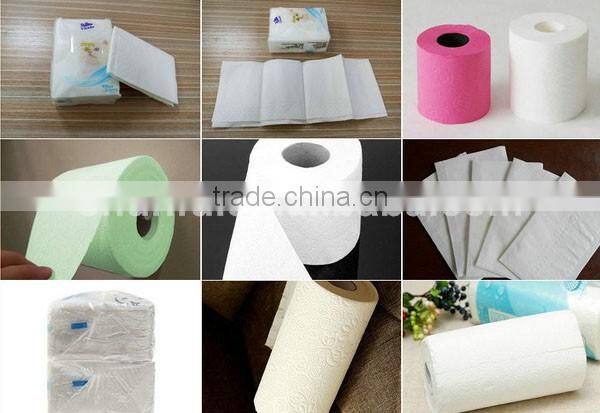

Finished product
Packaging and transportation
Company information
Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. Was founded in 1988. We are
specialized in the production paper making machinery, pulping equipment, paper egg tray making
machine and paper processing equipment. Our products had been certificated by ISO9001 and
exported to many countries, such as Uzbekistan, Russia, Kyrgyzstan, Nigeria, Ukraine, Botswana,
Libya, Algeria, El Salvador, Lebanon, Moldova, Bolivia.
