High speed super former test liner (sheet lining) paperboard making machinery
Performance Parameter
a) raw material:sludge of paper making factory ,waste paper slag
b) thick of paper:can debugging(1-5mm)
c) specifications:1300mm×1000mm
d) speed:30~50m/min
e) 1set capacity:10t/d (If you need to add the capacity, you need to buy many sets)
f) consistency of pulp:0.8~1%
g) host power:4kw
h) appearance size:7000mm×2700mm×2000mm
i) Funcation:chemical additives packaging box,packaging box lining board,clothing packing
box ,arts and crafts packaging box,ceramic products packaging box,decorative panels and
various types of thread-bound book cover and the outer packaging.
j) Technological process:
Consistency pulper → pulp tank → pulp pump → mix tank → wire box → transport cloth → press roll
→ molding board →Dry→ shear packing
Work Principle
Waste paper ,Waste mud through consistency pulper decomposition,include a lot of pulp fiber
and plastic material, through machine dehydration composite moisture content 60% molding
board:paper of slurry storage tank through pulp pump transport pulp well,uniform mixing through
pulp pump transport to head tank,at the same time through water pump add water that adjustment
concentration arrive 0.8~1%,inflow wire groove,through wire section take off water,partite into
the wet mud board. Then through drying,became dry paper board,through calendar machine
further modified flat.(or through hot pressure machine to drying, but this investment is big)
Our sludge board dry have two kinds
- The sun dry the sludge board of product, then use calendar to pressure.
- Use hot pressure machine to dry the sludge board of product,this equipment need boiler.
Compare two kinds price the second is more expensive than the first.
About the paperboard thick our machine can produce 1mm-4mm.
Raw material
Pulp machines

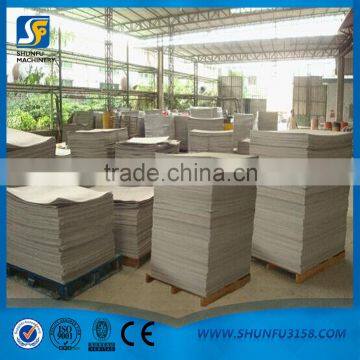

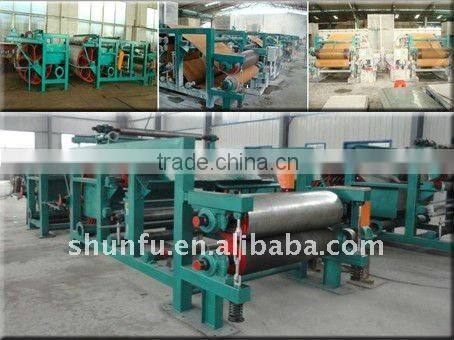

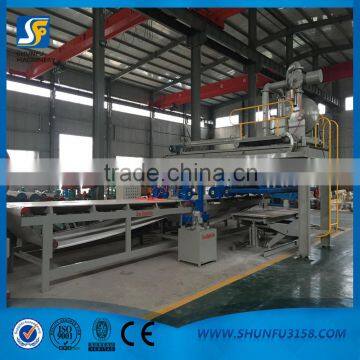

Paperboard machines
Packaging &shipping
Packaging
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tighted plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.
Shipments;
1 sea transportation is from qingdao seaports or other ports.
2 the delivery time is decided by your needed machines or machine parts. But it also follows your needs.
Company information
Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. Was founded in 1988. We are
specialized in the production paper making machinery, pulping equipment, paper egg tray making
machine and paper processing equipment. Our products had been certificated by ISO9001 and
exported to many countries, such as Uzbekistan, Russia, Kyrgyzstan, Nigeria, Ukraine, Botswana,
Libya, Algeria, El Salvador, Lebanon, Moldova, Bolivia.
Our company superiority
1.more than 30 years producing experience.
2.alibaba 5 years of gold supplier.
3.25 engineers with rich experience.
4.have passed CE,SGS,ISO quality system certification and all manufacure processes are
conducted by the standard strictly.
Technical support
1.Free consulting services, help the user to do project feasibility analysis.
2.Series of products related information for customer reference.
3.According to customer's actual situation, to provide equipment design and installation drawings
and production of the required information.
4.Production of various materials used for grades, technical performance indicators,requirements,
suppliers, and reference price and related information.
5.Common faults and trouble shooting in the use of production.
6.Can send technicians to install test equipment and design
Qinyang Shunfu Paper Making Factory professional in manufacturing Paper making machine.
We can design and prodcue product line according to customer's requirement.
Welcome to visit our factory!
Business, our common goal is a win-win situation
Best service:
1. We will provide you all technical consultation and make the draw and proposal for you.
2. We will send technicians to install and test the machine for you.
3. We will train skilled workers for you.
4. We will supply best after-sale service.
