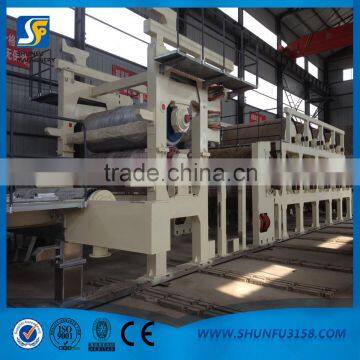

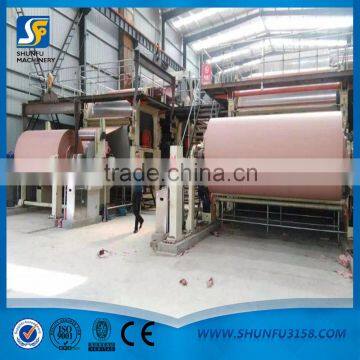

High Quality Carton Paper Making Machine With Competitive Price
Carton paper making machine with good quality and competitive price
Technical parameter
1. Raw material: Waste paper, waste carton paper
2. Output paper: Kraft paper, carton paper, corrugated paper
3. Output paper weight: 120-250GSM
4. Net paper width: 1880-2000mm
5. Copper cylinder width: 2400mm
6. Capacity: 20-30T/D
7. Working speed: 25-50m/min
8. Rail space: 2900mm
9. Drive way: Alternating current frequency conversion adjustable speed, section drive
Main machine structure
1. Cylinder section: Φ 1500mm× 2400mm stainless steel mesh 3sets; Φ 450mm× 2400mm couch roll
4sets; Reverse roll 1 set; Rubber Share hardness is 38ºC± 2, pneumatic pressure device.
2. Press section: Φ 650× 2400mm natural marble roll 1set, Φ 600mm× 2400mm rubber roll 1 set,
rubber hardness HSD 95ºC± 2. Pneumatic pressure device.
3. Dryer section: Φ 2500mm× 2400mm alloy dryer can 2sets, Φ 600mm× 2400mm touch roll 1 set,
Rubber hardness HSD 95ºC± 2. Pneumatic pressure device. The second dryer can section is
equipped with Inverse press roll Φ 400mm× 2400mm 1 set, Rubber hardness HSD 95ºC± 2.
4. Model design: Alloy square frame, section drive, pneumatic pressure device, Alternating current
frequency conversion adjustable speed.
Main Equipments
| NO. | Equipments | Qty(set/sets) |
| 1 | 1880mm double-cylinder and multi-mesh Kraft paper machine | 1 |
| 2 | dryer can exhaust hood | 1 |
| 3 | axial-flow ventilator | 1 |
| 4 | 15type roots vacuum pulp | 1 |
| 5 | suction box | 1 |
| 6 | 1880 three rollers calendar | 1 |
| 7 | 1880mm winding machine | 1 |
| 8 | Rewinding machine | 1 |
| 9 | frequency conversion controlling cabinet | 1 |
| 10 | work table | 1group |
| 11 | 2T boiler(energy: coal or gas or diesel) |
1 |
Workshop and customers
What we can provide:
1.787,1092,1575,1760,1880,2400,2640,2800,3200mm paper machine
2.paper egg tray machine
3.pulp making equipments
4.paper making equipments
5.paper processing equipments
6.all kinds of spare parts
Best Service:
1.We will provide you all technical consultation and make the drawing and proposal for you.
2.We will send technicians to install and test the machine for you.
3.We will train skilled workers for you.
4.We will supply best pre-sale, after-sales service for you.
Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. was founded in 1988.
We are specialized in the production paper making machinery, pulping equipment, paper egg
tray making machine and paper processing equipment. Our products had been certificated by
ISO9001 and exported to many countries, such as Uzbekistan, Russia, Kyrgyzstan, Nigeria,
Ukraine, Botswana, Libya, Algeria, El Salvador, Lebanon, Moldova, Bolivia.
If you have any question, please feel free to contact with me.
