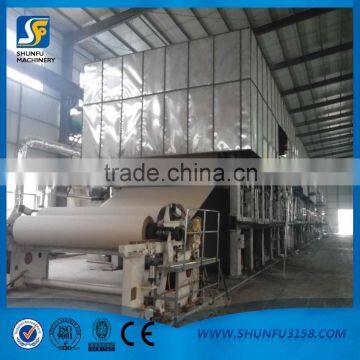

2400mm type corrugated paper making machine with high quality
Chapter One:Technical Parameter
1. Output paper: kraft paper, corrugated paper, carton paper
2. Output weight: 100-250g/m2
3. Net paper width: 2400-2500mm
4. Design speed: 150m/min
5. Working speed: 80-120m/min
6. Capacity: 25-30 T/D
7. The gauge: 3200mm
8. Pressure type: pneumatic pressure device
9. Driving type: use AC frequency conversion,and driving by step
10. Machine design: squaring box type, including left and right hand machine, high speed running
in safe and safety environment.
11. Layout type: Headbox——fourdrinier wire part ——2 main pressing part ——1Φ2500mm dryer——
1Φ2500mm dryer—— 3 Φ1500mm dryers——sizing machine—— 6 Φ1500mm dryers——paper winding
machine ( right hand machine)
Chapter two: Technical design and requirement for the water, electricity, air and vapor
1.Technical design: Pulping, paper making and processing equipment adopt one-stop process design.
This advanced design occupies small space for convenient operation and management. It has high security and automatization degree, and can provide you high production with steady quality.
2.requirement for the water,electricity, air and vapor
Requirement for the electrical source:
High voltage: AC10000V±10%
Low voltage: AC380V 220V±10%
Frequency: 50HZ±1%
Operated with compressed air:
Dielectric pressure: (aire supply)0.6-0.7Mpa
The highest temerature: 35°C
Quality: need filtrating
Working air pressure: above 0.6Mpa
3. Compressed air for the meter:
Dielectric pressure: 0.5-0.6Mpa
The highest temerature: 35°C
Quality: filtrated, unoiled and arefaction
Working air pressure: above 0.5Mpa
4. Branch water and primary water: clear and colorless water without sand, neutral PH scale.
5. Vapor:
working pressure: 0.3-0.4Mpa
Testing pressure: 0.8Mpa
Chapter Fhree: the main equipment structure
1. Fourdrinier part: The length of fourdrinier part is 18m, vacuum couch roll Φ650mm×2300mm open
style headbox, inner is bordered with stainless steel, drave by two homogenate roll, macromolecule
water board,macromolecule anti-grinding faceplate, suction box 8 pieces. Roll: none slot roll with rubber
covered. Frame:square frame is made of steel.
2. The press part: the main press 2, double, Φ 650mm×2850mm 4 stone rolls, Φ 600mm×2850mm 4
rubber rolls;
shore hardness 95°±2, and pneumatic compression device(standard height and moderate rubber roll)
3. The dryer part: Φ 2500mm×2850mm 2 dryer cans,Φ 1500mm×2850mm 9 dryer cans. arrangment
pattern
(1+1+3+sizing machine+6), and pneumatic compression device. equipped with pneumatic guide and
electric mesh-fastener.
4. winding part: 2400mm cylinder winding paper machine and 2400mm rewinding machine.
5. Driving and controlling part: using of AC frequency conversion, and driving by step.
Chapter Four: Paper making, pulping and auxiliary equipment
|
1. 2400mm multi-dryer cylinder and fourdrinier-wire paper machine |
1 set |
| 2. Exhausting hood | 3 sets |
| 3. Flow fan | 2sets |
| 4. SL-4G vacuum pump | 1 set |
| 5. Suction box | 8sets |
| 6. 2400mm winding machine | 1set |
| 7. 2400mm rewinding machine | 1set |
| 8. 2400mm sizing machine | 1set |
| 9. Paper transducer | 1set |
| 10. 5 m3 water pulp shredder | 2 sets |
| 11. 2m2 shaking screen | 2 sets |
| 12. Pressure-flow within sieve | 2 set |
| 13.Φ380 double pulping machine | 2 sets |
| 14. Φ700 thruster | 4 sets |
| 15. Pulp-150 | 6 sets |
| 16. Pulp-200 | 4 set |
| 17. 606type desander 20sets | 2groups |
| 18. 4T boiler(coal or gas or diesel) |
1 set |
What we can provide:
1.787,1092,1575,1760,1880,2400,2640,2800,3200mm paper machine
2.paper egg tray machine
3.pulp making equipments
4.paper making equipments
5.paper processing equipments
6.all kinds of spare parts
Best Service:
1.We will provide you all technical consultation and make the drawing and proposal for you.

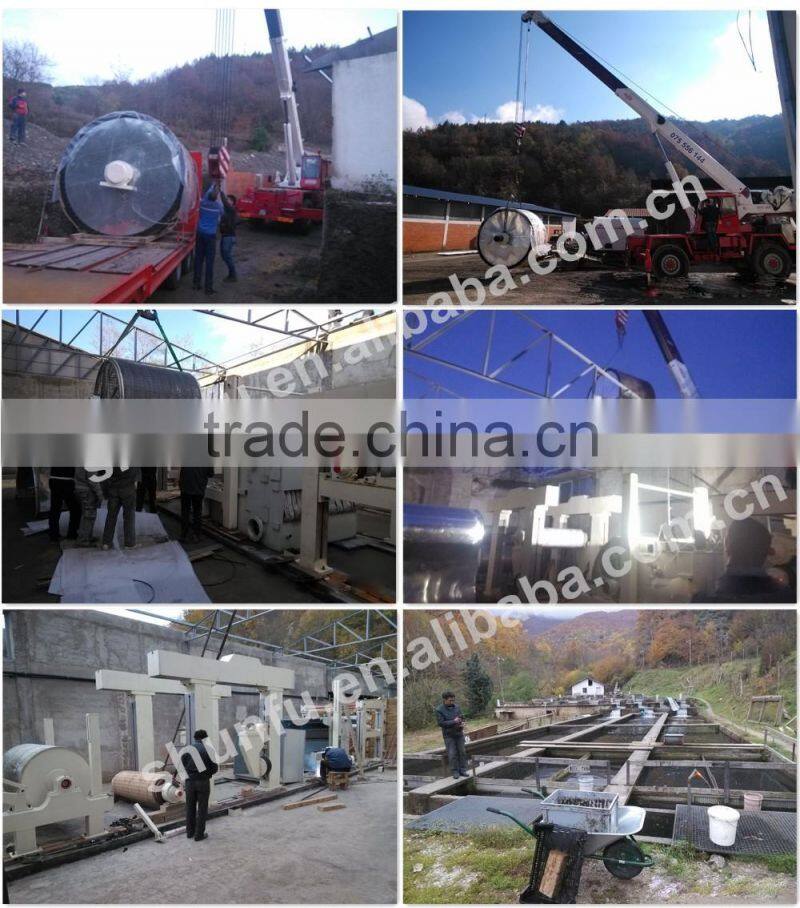

2.We will send technicians to install and test the machine for you.
3.We will train skilled workers for you.
4.We will supply best pre-sale, after-sales service for you.
Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. was founded in 1988.
We are specialized in the production paper making machinery, pulping equipment, paper egg
tray making machine and paper processing equipment. Our products had been certificated by
ISO9001 and exported to many countries, such as Uzbekistan, Russia, Kyrgyzstan, Nigeria,
Ukraine, Botswana, Libya, Algeria, El Salvador, Lebanon, Moldova, Bolivia.
More detail informations and scheme, please feel free to contact with me.
