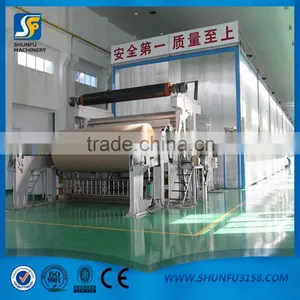

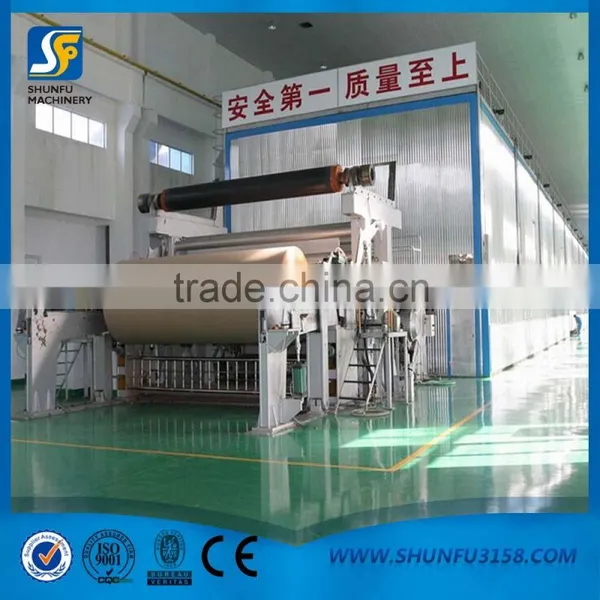

Alibaba China Paper Machine 2400mm Kraft Paper Making Machine
Main technical data
1. Model 2400
2. Output pap craft paper, carton paper, sheet lining
3. Raw materia waste paper
4. Output paper widt 2400mm
5. Output paper weig 100-300g/m2
100g/ m2 125g/ m2 150g/ m2 180g/ m2 200g/ m2 250g/ m2 300g/ m2
6. Output paper humidity 4%~8%
7. Capacity 50-60T/d
8. Working Speed 80-150m/min
9. Rail space 3400mm
10. Plant size estimate (LxWxH):
Pulp making plant 10 x 10 x 6 m
Paper making plant 10 x 66 x 6m
Boiler house: 10 x 4 x 6 m
Water recycling pool: 80 x 15 x 1 m
Waste storage house: 1200 m2
11. Total power: 629.5Kw
12. Water usage: 1200m3/d
13. Water recycles capacity: 900T/d
aslo,our machines are popular with both home and abroad,good in-service,and after-sales,
we have make great achievements for our company each year.we will configuate machine
under our customers' requirements.we can aslo install and debug machine for you,
inlcuidng design the plant,if only our customers need them.
if onlly you provide the raw material,you will get various of kinds of papers.the raw material
is range from straw pulp,recycled paper,wood,to bambo, you can aslo make
good use of resources,getting good benefits from it.
Power calculatio
No. |
Description |
Rated power |
Qty |
|
1st cylinder part |
18.5KW |
1 |
2 |
2nd cylinder part |
15 KW |
1 |
3 |
Press part |
30 KW |
1 |
4 |
Multi-cylinder part |
15 KW |
1 |
5 |
Calendering part |
11 KW |
1 |
6 |
Winding machine part |
7.5 KW |
1 |
7 |
Re-winding part |
18.5 KW |
1 |
8 |
Wind motor |
11 KW |
1 |
9 |
Vacuum pump |
22 KW |
1 |
10 |
Hydrapulper |
55KW |
2 |
11 |
Fiber separator ( Optional ) |
45 KW |
1 |
12 |
Inter-flow type Pressure screen ( Optional ) |
45 KW |
2 |
13 |
High frequency vibration screen |
5.5 KW |
1 |
14 |
Double type pulp grinder |
45 KW |
2 |
15 |
Pulp thickener |
7.5 KW |
2 |
16 |
Thruster |
11 KW |
4 |
17 |
Pulp pump |
5.5 KW |
4 |
18 |
Pulp pump |
7.5 KW |
15 |
19 |
Pulp pump |
11 KW |
1 |
20 |
Air pump |
11 KW |
1 |
Total power:629.5Kw Total motor: 34sets
Main frames of the production line
Part name |
Equipment |
Specification |
Qty |
|
Mesh cylinder part |
cylinder mould: |
Φ1500mm×2850mm |
3 |
|
couch press |
Φ450mm×2850mm |
3 |
||
Reverse press |
Φ4500mm×2850mm |
1 |
||
Stream pressure |
|
|||
Press part |
stone roll |
Φ600mm×2850mm |
1 |
|
rubber roll |
Φ550mm×2850mm |
1 |
||
reducer |
500 |
1 |
||
Dryer part |
Dryer can |
Φ2500mm×2850mm |
2 |
|
Φ1500mm×2850mm |
3 |
|||
Touch roll |
Φ550mm×2850mm |
2 |
||
Winding part |
Cylinder type winding machine |
1 |
||
Rewinding machine |
1 |
|||
|
Drivig&control part
|
driving & control dept: which adopts speed adjustment in AD frequency conversion & processing transmission ,digital sealed ring control system and full-process monitoring system in dynamic computer |
|||
Related machine pictures as follows
Flow chart
Finished products

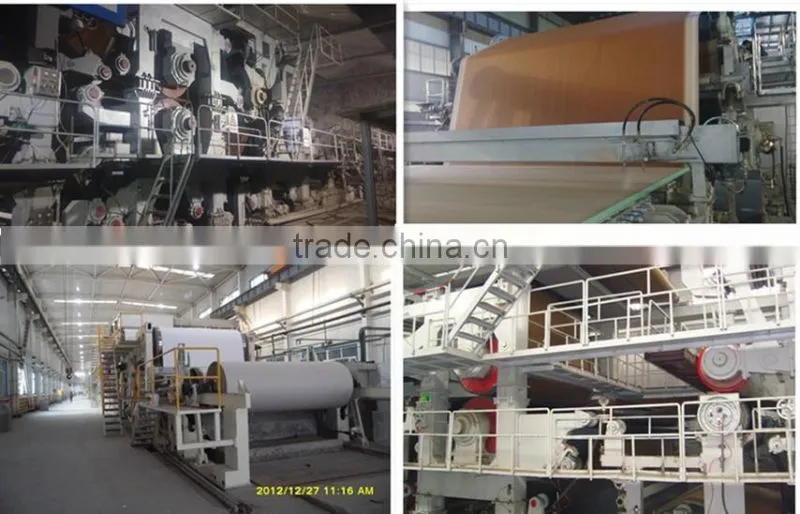

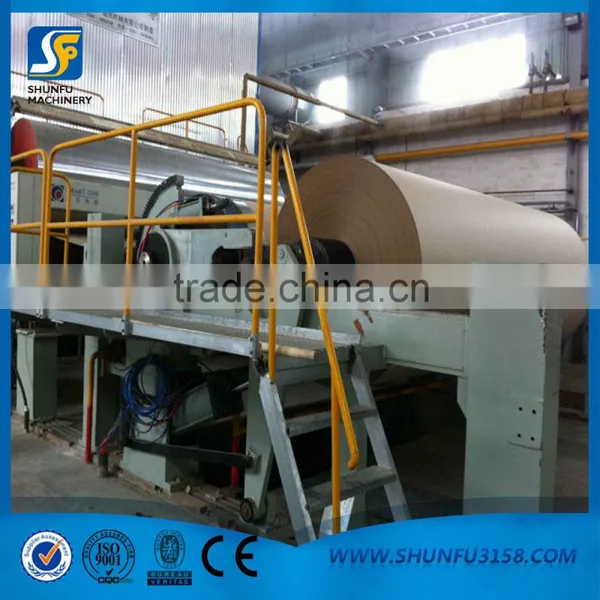

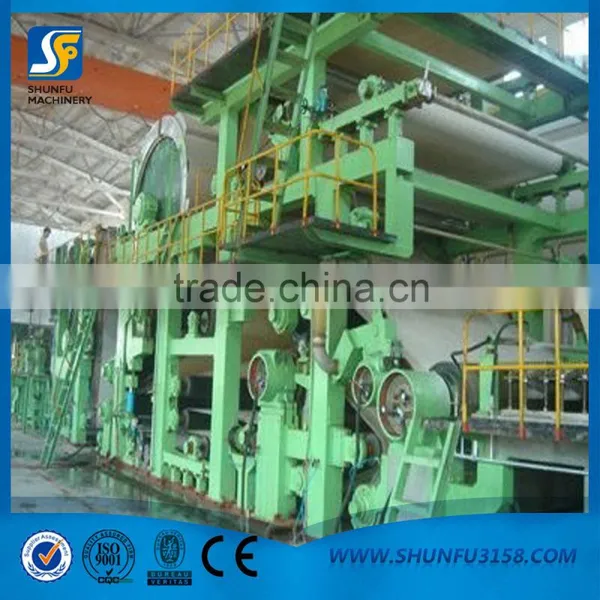

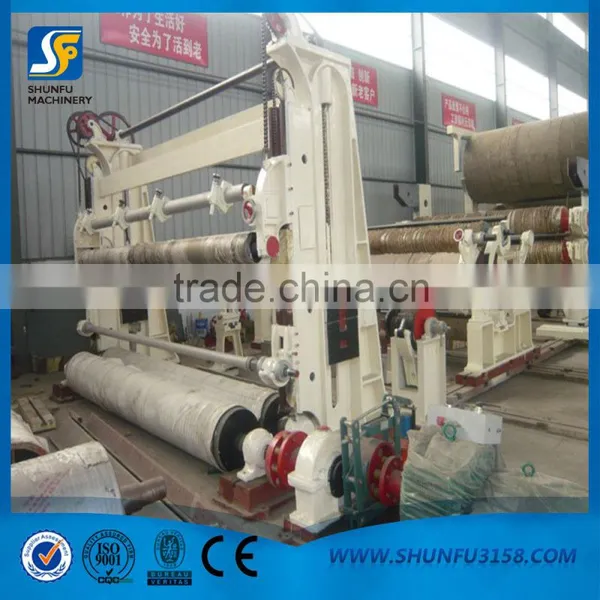

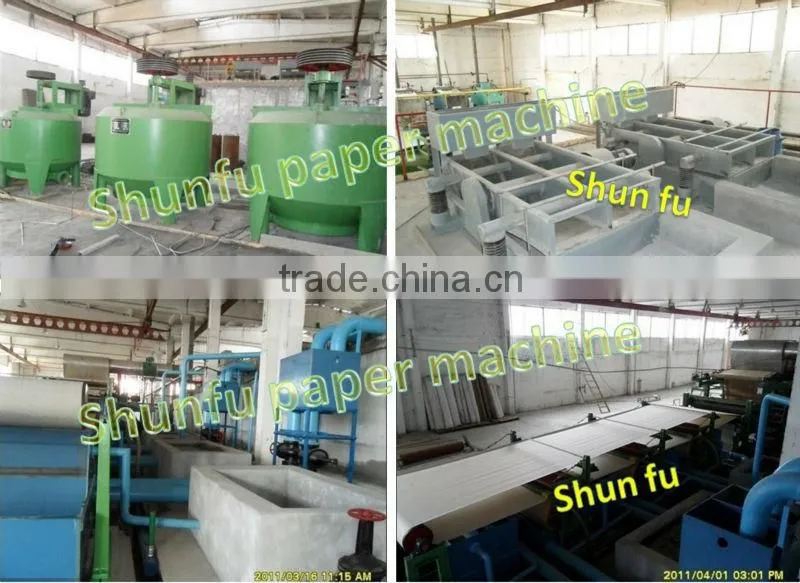

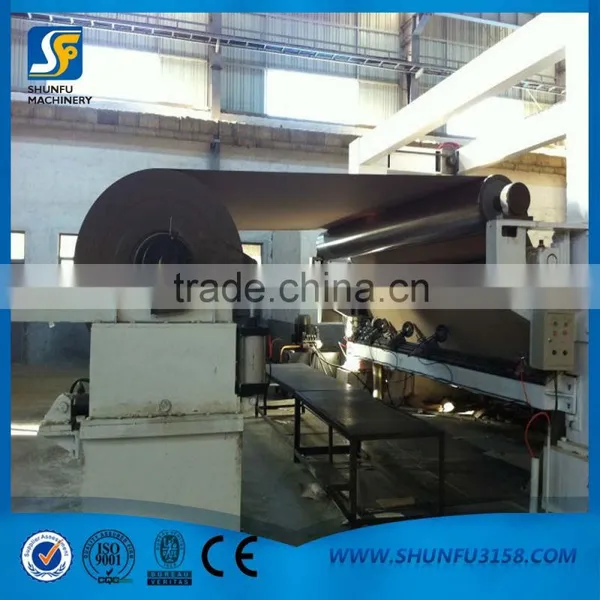

Main machines
Perfect service
(1)technology consultation ;
(2)project evaluation;
(3)detailed design of factory ;
(4)installing and testing the whole production line;
(5)training engineers and workers;
(6)supplying spare part for long time;
Company information
Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. Was founded in 1988.We are
specialized in the production paper making machinery, pulping equipment, paper egg tray making
machine and paper processing equipment. Our products had been certificated by ISO9001 and
exported to many countries, such as Uzbekistan, Russia,Kyrgyzstan, Nigeria, Ukraine,Botswana,
Libya, Algeria, El Salvador, Lebanon, Moldova,Bolivia.
Qinyang Shunfu Paper Making Factory professional in manufacturing Paper making machine.
We can design and prodcue product line according to customer's requirement.
Welcome to visit our factory!
