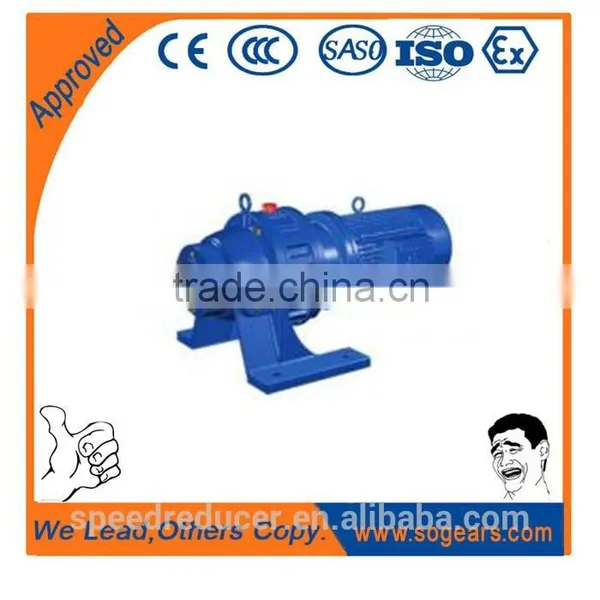

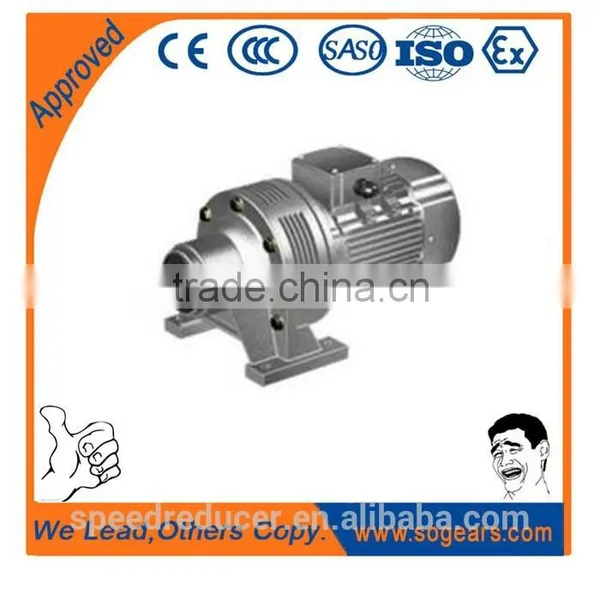

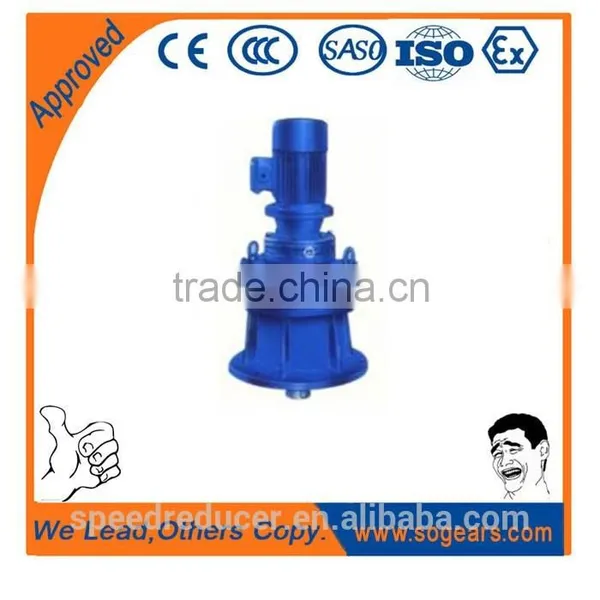

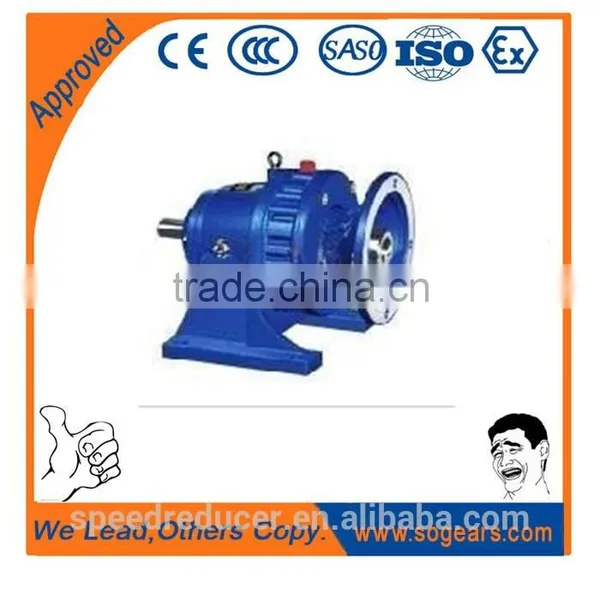

Supply B and X series cycloidal pin wheel gearbox

@cycloidal pin wheel gearbox features

Paint Color: Various,

Cooling System: Fan cooler

Material: Rugged cast iron or ductile housings(HRC58-62)

Noise Level: Low type 65-75 Db, Smooth and stable running

Transmission stage: 1 and 2, High speed ratio and efficiency

Working: 24 hours continuous available and shaft forward reverse

Bearing: China standard. But SKF, FAG, NSK, TIMKEN, NTN, KOYO, C&U is a aviable if need

@cycloidal pin wheel gearbox designation

Example: BW(E)D41-1225-0.37-W

B: B series Electric power motor cyclo reducer

W: Horizontal speed-reducers, with inline shaft.

(E): None-one stage, E-two stage, S-three stage

D:Standard electric motors

41: Model number 41

1225: Speed Reduction Ratio

0.37: Electric motor power:0.37kw

W: Mounting way.

All models of this Cyclo Gear Motor are

B09,B0,B1,B2,B3,B4,B5,B6,B7,B8,B9,B10,B20,B31,B41,B42,B52,B53,B63,B74,B84,B85,B2009,

B310,B420,B531,B631,B742,B852,B953.

Reduction ratio mainly is 7,9,11,17,23,29,35,43,59,71,87,99,121,187,289,391,493,595,731,841,1003,1225,1505,1849,

2065,2065,2537,3481,4189,5133,7569.
