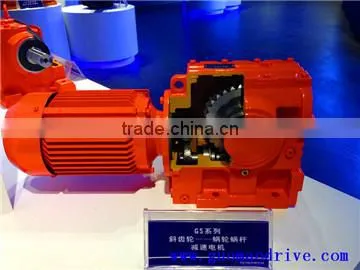

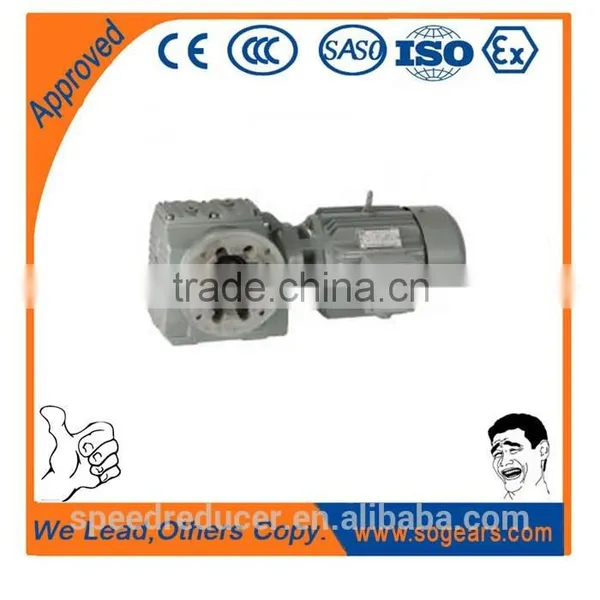

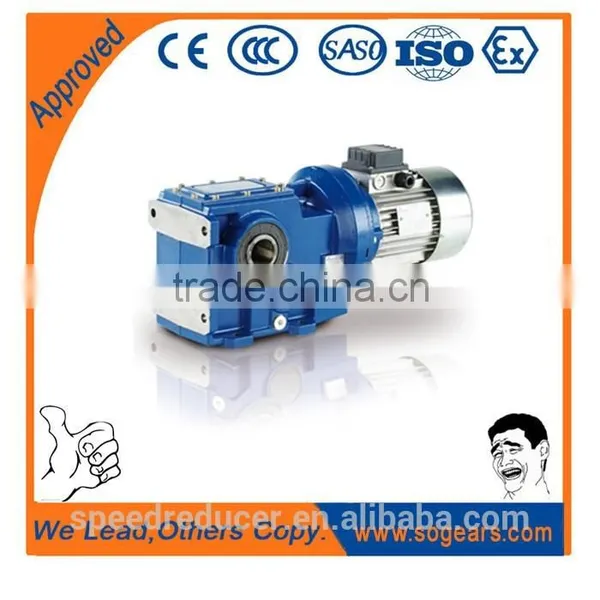

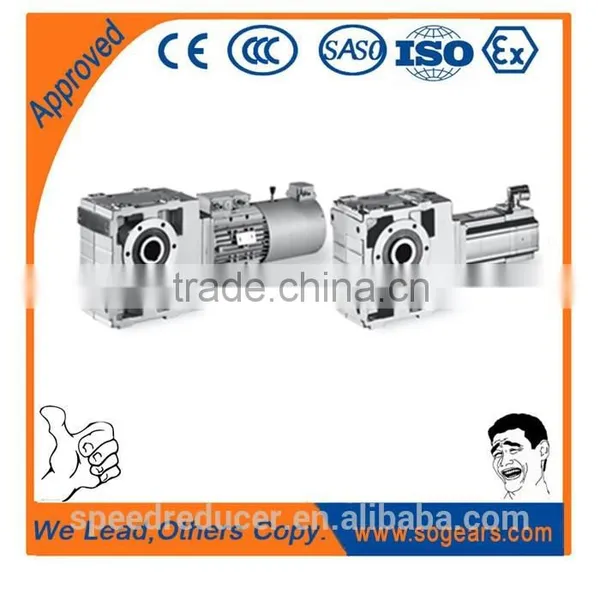

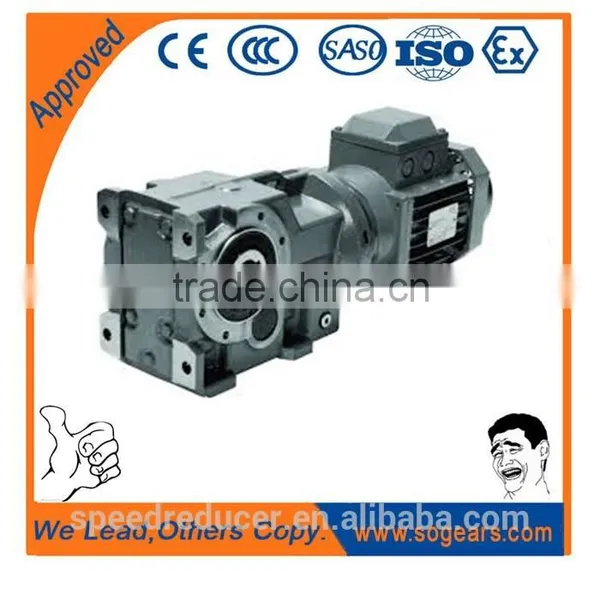

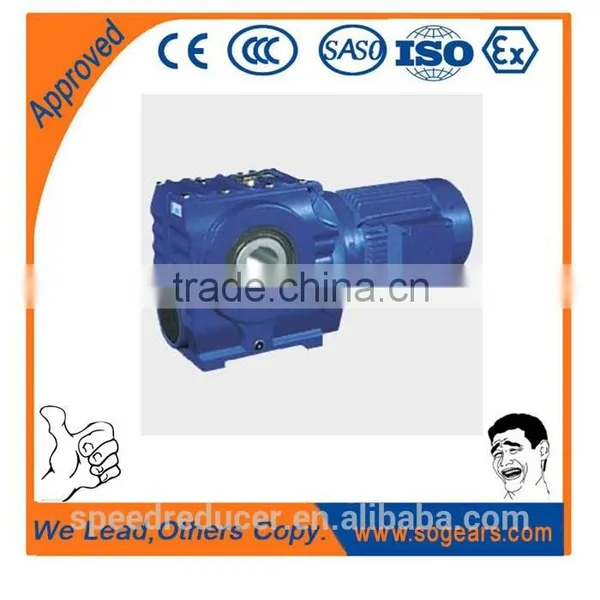

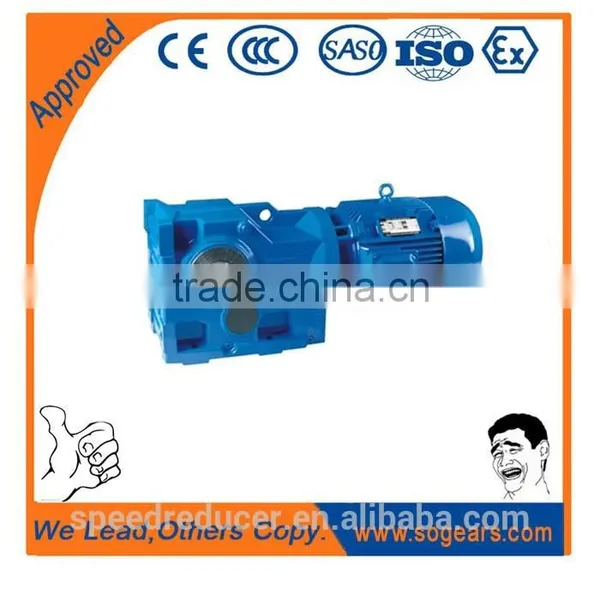

Bevel Helical gear reductor for Air Separator
@ Bevel Helical gear reductor dsignation
Example: GK(AF)77-52.07-M2
G:Guomao Reducer Group
K: K series helical bevel gearbox
(AF): None-shaft output, F-flange output with solid shaft, A-Output hollow shaft type. H-Hollow shaft output with shrink disk AT- Torque-arm mounted (S17…R77)- Combined types
77:Gearbox model number
52.07: Gear reduction ratio
M2: Mounting way
@ Bevel Helical gear reductor parameter
Power range: 0.12-160kW
Output speed(r/min): 0.05 - 809
Output Torque(N.M): Top to 36000N.m
@ Bevel Helical gear reductor feature
Models:12 models ranging from K37 to K187
Large output torque,smooth startup,high efficiency
Noise Level: Low type 65-75 Db, Smooth and stable in run
Material: Carburized gears & shafts and gears HRC58-62
Transmission efficiency: the efficiency of single machine is bigger than 90%.
Equipped with spiral bevel transmission which meets 90 output requirements.
Output way:Hollow shaft with keyed connection, shrink disk, splined ,solid shaft etc.
Bearing: China standard. But SKF, FAG, NSK, TIMKEN, NTN, KOYO, C&U is a aviable if need
Mounted way: Hollow shaft,foot-mounted,flange-mounted,shaft-mounted,flange-mounted with hollow shaft,foot-mounted with hollow shaft
