Good Feedback Egg Tray Making Machine With High Quality Quality Choice

Good Feedback Egg Tray Making Machine With High Quality Quality Choice photo-1
Good Feedback Egg Tray Making Machine With High Quality Quality Choice photo-2
US$ 13,000 - 65,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Egg Tray Machine
Processing Type:
Pulp Molding Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or other main ports
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Egg Tray Machine
Processing Type Pulp Molding Machine
Place of Origin Henan, China
Brand Name shunfu
Model Number various
Voltage 380v
Power(W) 50-100kw
Dimension(L*W*H) Depends on model and configuration
Weight 7-8tons
Certification Other, ISO9001
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Paper egg tray making machine with good quality


Product Description

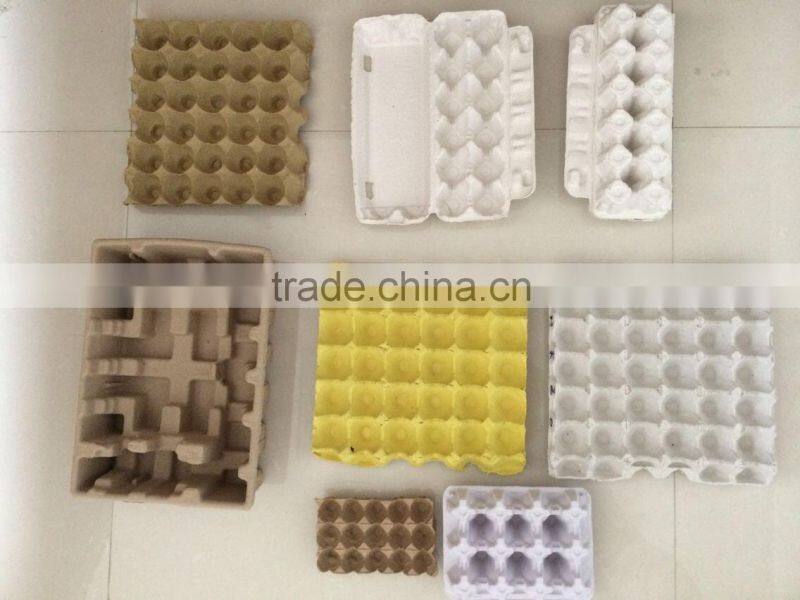

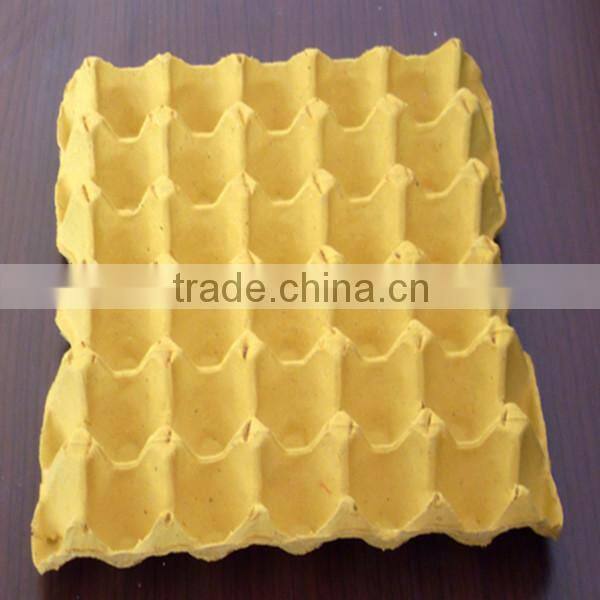

Egg tray machine,is widely used in the making of paper egg /fruit tray,cup /bottle tray etc



Shunfu Paper Egg Tray Machine, leading pulp molding machine manufacture in China, we have 20 years experience in the making of egg tray machine.



We sell more than 30 units of the egg tray completed production lines to all over the world . Egg tray machine that you need is just what we can supply. We are one of the most famous egg tray machine exporters in China.
We offer both the semi-automatic machine and fully-automatic machine.



The range of the capacity of the egg tray production line should be 1000 pcs per hour to 5000 pcs per hour.



 paper pulp egg tray machine Introduction:

1. Raw material :

waste paper, corrugated paper, waste newspaper or magazine

2. Usage :                       Egg Tray machinery used for making the molded pulp products,such as egg tray,egg carton/box fruit tray,coffee tray. It is small investment.



3. Dryer line:                 dryer line has two different lines. One is full-automatic dryer line, the other is made by brick(this is more cheaper). The length of line is 50 metres.



4. Production detial :                                        The whole production line include pulp making system + egg tray molding system + egg tray drying system + egg tray packing system.                                  The drying line we will make single layer or multi layer depend on buyer's request


paper pulp egg tray machine process:

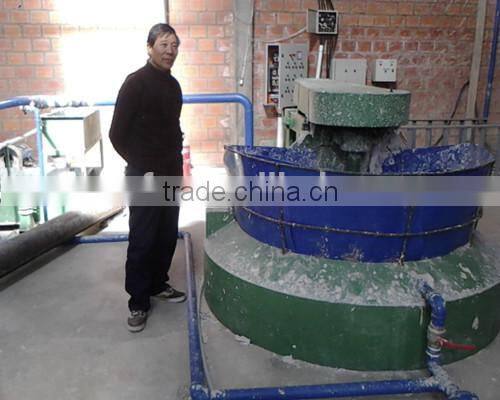

 1. Pulping system



Item Qty Power
Hydrapulper 1 7.5kw
Refiner 1 7.5kw
pulp pump 3 2.2kw, 2.2kw, 1.5kw
agitator 2 2.2kw, 1.5kw
vacuum tank 1 0



2. Forming system





Consist of 1pc of forming platen and 1 pc of transfering platen.



Platen size:1100x470mm,4sets of 30-cell egg tray molds can be mounted on forming platen.



Forming efficiency:5-6 cycles/min;



Equiped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.



Egg box Machine can produce various trays/cartons with different moulds as per your specification or samp... Product Type: Egg Tray Machine



Output :700pcs,1000pcs,1300pcs per hour

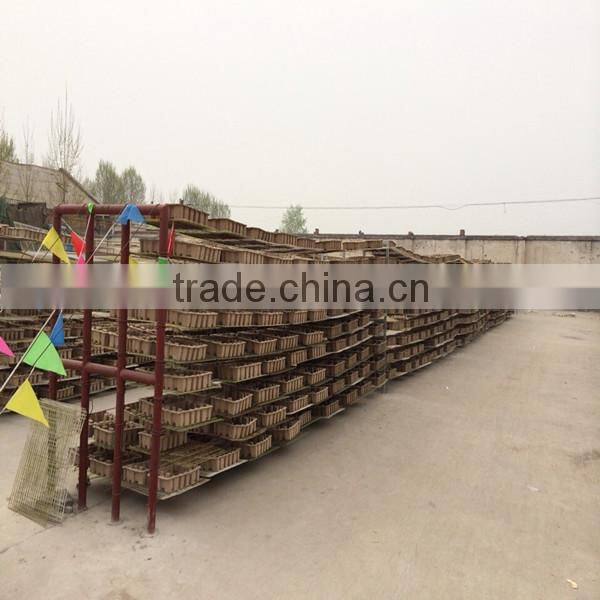

3. Drying system

Drying method

Burning material

Introduction

Sun dried




Suitable for small production machines

Cement construction

Drying Road


Coal, natural gas,

oil(different fuel different price )

Provided by the customer bricks, cement and so on the user is currently making the factory floor.

Metal multilayer drying


natural gas, oil

The cost will high

  Metal multilayer drying



Outline dimension:20080x2650x3600mm;



Single layer conveying chain;heated by section;multi burners;



Six layers drying line, energy saving and saving place



The temperature of each section can be adjusted independently;burners with French or Italian brand;



The energy for option: LPG,GAS,diesel oil,Equiped with auto control cabinet.



Further information you need , please feel free to contact us. We would like to try our best to make customer satisfaction at lowest possible cost, good quality and best after-sale service.

 Good feedback egg tray making machine with high quality

Good feedback egg tray making machine with high quality

Good feedback egg tray making machine with high quality

Good feedback egg tray making machine with high quality

Good feedback egg tray making machine with high quality

Good feedback egg tray making machine with high quality

Good feedback egg tray making machine with high quality

Packaging & Shipping

  Good feedback egg tray making machine with high quality

Our Services



What we can provide:

1.787,1092,1575,1760,1880,2400,2640,2800,3200mm paper machine

2.paper egg tray machine

3.pulp making equipments

4.paper making equipments

5.paper processing equipments

6.all kinds of spare parts

Best Service:

1.We will provide you all technical consultation and make the drawing and proposal for you.

2.We will send technicians to install and test the machine for you.

3.We will train skilled workers for you.

4.We will supply best pre-sale, after-sales service for you.

Company Information

Good feedback egg tray making machine with high quality

Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. was founded in 1988. We are specialized in the production paper making machinery, pulping equipment, paper egg tray making machine and paper processing equipment. Our products had been certificated by ISO9001 and exported to many countries, such as Uzbekistan, Russia, Kyrgyzstan, Nigeria, Ukraine, Botswana, Libya, Algeria, El Salvador, Lebanon, Moldova, Bolivia.
