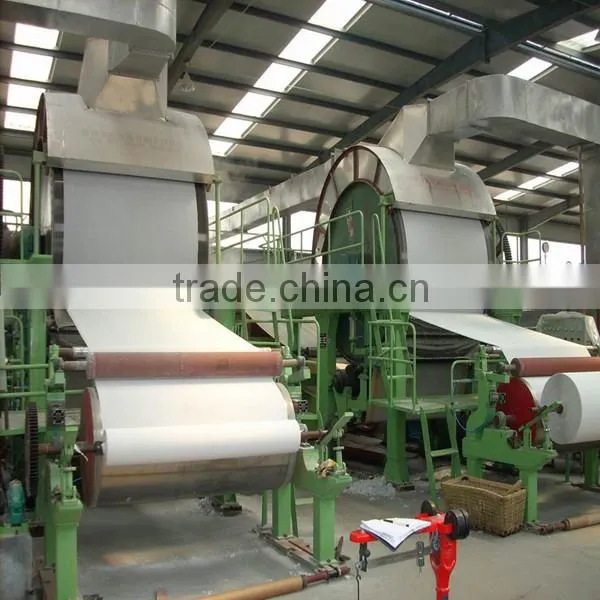

1575mm Paper Making Machine,paper cups' paper making machine
Technical parameter of paper cup paper making machine :
1.raw material: wood pulp, virgin pulp
2.output paper: food packaging paper,daily use paper,food packing paper
3.output paper weight: 60-120g/m2
4.capacity: 5-10tons per day
5.width of jumbo roll: 2100-2200mm
ing speed: 150-300m per minute
Main frame of equipments of paper cup paper making machine:
1 Fourdrinier part: The length of fourdrinier part is 8100mm, vacuum couch roll Φ650mm×250mm open style headbox, inner is bordered with stainless steel, drave by two homogenate roll, macromolecule water board, macromolecule anti-grinding faceplate, suction box 6 pieces. Roll: none slot roll with rubber covered. Frame: square frame is made of steel.
2 Compression part: Φ400mm×2850mm natural marble stone roller 1 piece, Φ400mm×2850mm rubber roller 1 piece, Φ500mm×2850mm natural marble stone roller 1 piece, Φ400mm×2850mm rubber roller 1 piece, rubber hardness HSD 90°±2.
3 Dryer part: Φ2500mm×2850mm alloy dryer can 2 sets,Φ500mm2850mm touch roll 1 piece. Pneumatic load device, rubber hardness HSD 90°±2, second dryer part is equipped with dryer mesh.
4 Rewinding part: Cylinder type winding machine.
5 Driving and controlling part: Equipped with 350 reducer, motors with AC frequency convertor and adjustable speed, processing transmission.
Specifications:
Technical data |
||||||||
Output paper |
High&Medium grade of paper cup paper |
|||||||
Raw material |
virgin pulp,wood pulp. |
|||||||
Output weight |
60-120g/m2 |
|||||||
Net width |
2100mm( adjustable according to our clients requirement). |
|||||||
Wire width |
2850mm |
|||||||
Capacity |
5-10T/D |
|||||||
Rail gauge |
2900mm |
|||||||
Drives |
AC inverter,adj.sp .Processing transmission |
|||||||
Main frame of the equipment |
||||||||
Part name |
Equipment |
Specification |
Qty(set/s) |
|||||
Mesh cylinder part |
cylinder mould |
1500mm×2850mm |
1 |
|||||
couch press |
250mm×1100mm |
1 |
||||||
Shore hardness is HS-38o±2. | ||||||||
Dryer part |
dryer can |
2500mm×2850mm |
1 |
|||||
touch roll |
220mm×1200mm |
1 |
||||||
Equipped with machinery creping doctor , the shore hardness is HS-90o±2, pneumatic loaded device. | ||||||||
Slitting part |
Equipped with rewinding and perforated machine and cutter. |
|||||||
Drives and |
AC connverter and adjustable speed. |
|||||||
control | ||||||||
All the accessory equipment |
||||||||
Number |
Equipment |
Qty |
||||||
1. |
2100mm oil proof food packaging paper making machine |
1 set |
||||||
2. |
Refiner |
1 set |
||||||
3. |
Suction box |
1 set |
||||||
4. |
33 Type roots pump |
1 set |
||||||
5. |
3m3 High consistency hydrapulper |
1 set |
||||||
6. |
1.8m2 High frequency vibrating screen |
1 set |
||||||
7. |
25m3 potcher |
1 set |
||||||
8. |
Pulp pump |
3 sets |
||||||
9. |
Agitator |
2 sets |
||||||
10. |
Rewinding&embossing&perforated machine |
1 set |
||||||
11. |
Cutter |
1 set |
||||||
12. |
500 Thruster |
1 set |
||||||
13. |
250 type speed reducer |
3 sets |
||||||
14. |
Sand cleaner |
2 pcs |
||||||

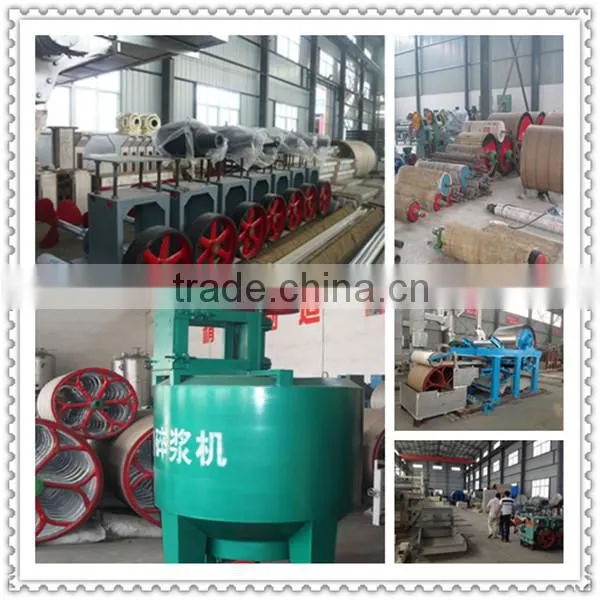

Our workshop and customers
What we can provide:
1.787,1092,1575,1760,1880,2400,2640,2800,3200mm paper machine
2.paper egg tray machine
3.pulp making equipments
4.paper making equipments
5.paper processing equipments
6.all kinds of spare parts
Best Service:
1.We will provide you all technical consultation and make the drawing and proposal for you.
2.We will send technicians to install and test the machine for you.
3.We will train skilled workers for you.
4.We will supply best pre-sale, after-sales for you.
Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. was founded in 1988. We are specialized in the production paper making machinery, pulping equipment, paper egg tray making machine and paper processing equipment. Our products had been certificated by ISO9001 and exported to many countries, such as Uzbekistan, Russia, Kyrgyzstan, Nigeria, Ukraine, Botswana, Libya, Algeria, El Salvador, Lebanon, Moldova, Bolivia.
More detail informations and scheme, please feel free to contact with me!
