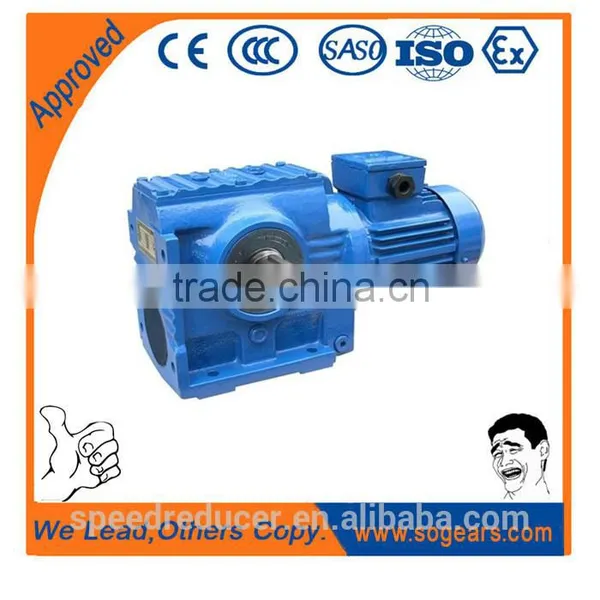

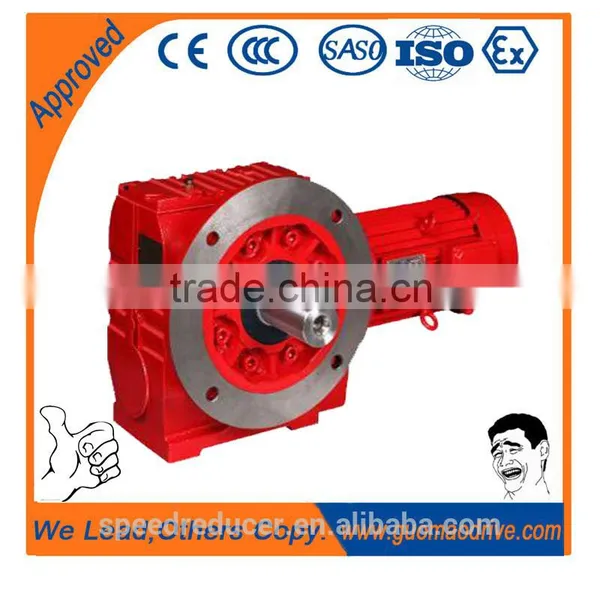

Different drive ratio Rotory Feeder gearboxes
@Rotory Feeder gearboxes
Example: GS(AF)77-Y1.5-4P-52.07-M2-Ø300-270°-3
GS: S series helical-worm gear motor
(AF): None-shaft output, F-flange output with solid sleeve, A-Output hollow bore type. H-Hollow bore output with shrink disk AT- Torque-arm mounted (S17...R77)- Combined types
77:Gearhead model number
Y1.5: 1.5kw standard electric motor.
4P: 4Pole motor, 2P-2Pole motor, 6P-6Pole motor, 8P-8Pole motor.
52.07: Gear reduction ratio
M2: Mounting way
Ø300:External diameter of output flane (if there is a flange)
270°: Terminal box position
3:Position of cable entry
@Different ratio gearboxes parameter
Power range: 0.12-55kW
Output speed(r/min): 0.05 - 349
Output Torque(N.M): Top to 6500N.m
@Different drive ratio Rotory Feeder gearboxes features
Paint Color: Various
Cooling System: Fan cooler
Noise Level: Low type 65-75 Db, Smooth and stable in run
Seals: Nitrile material, dual lipped, double output seals available
Transmission efficiency: the efficiency of single machine is not less than 95%.
Material: Rugged cast iron or ductile housings, hard shafts and gears HRC58-62
Output way:Hollow shaft with keyed connection, shrink disk, splined ,solid shaft etc.
Bearing: China standard. But SKF, FAG, NSK, TIMKEN, NTN, KOYO, C&U is a aviable if need
