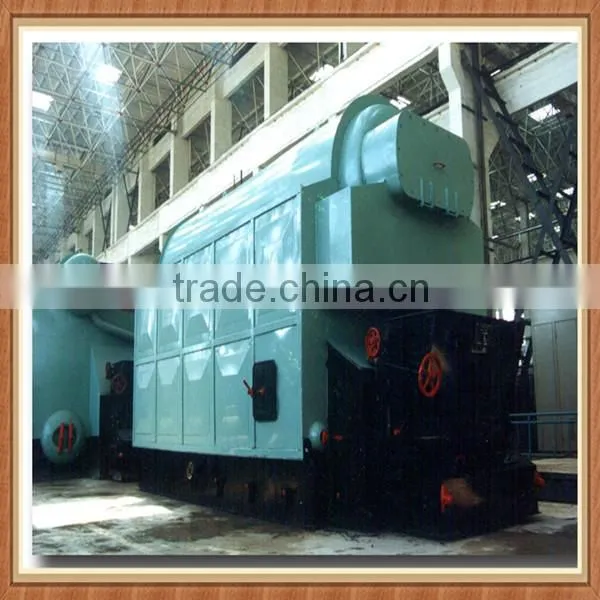

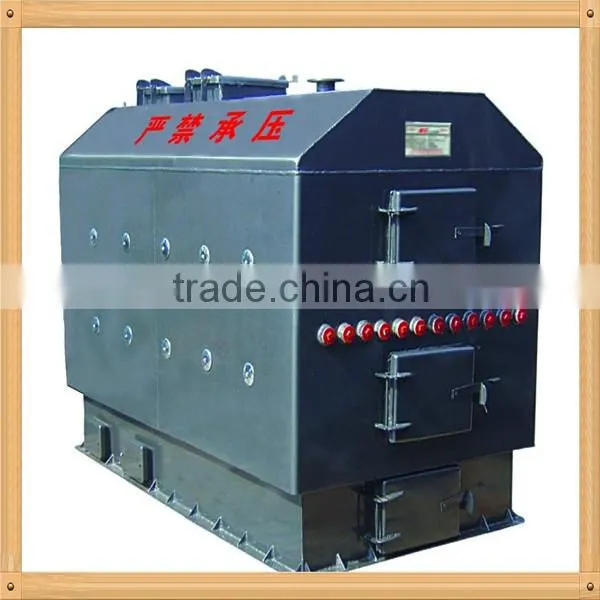

Coal fired steam boiler for paper mill
Detailed description of boiler for paper mill
1. Adopting automatic screw feeding, with reasonable second air technology and half gasification structure helping fuel combusting completely, the thermal efficiency can reach more than 90%. Stable flame, producing steam cautiously.
2. Environmental biomass fuels are widely promoted by the state because it’s cheaper price and wide sources. Operating cost is One-sixth of electric boiler, one-third of oil boiler.
3. Control system: Installing microcomputer to operate with one-button, people just set the process, and it can work automatically during the operating time. Once any abnormal situation to happen, stopping automatically with sound-light alarm, and pointing to the failure code, so it saves time to maintain.
4. Our protected device is safe and reliable. Selecting superior pressure controller, safety valve, low water alarm, overpressure alarm, over-temperature alarm, in order to make boilers operate safely.
5. Reasonable over-all structure to cover little space, hearing no sound. It is easy to install, because there is no need to set up tall chimney, with a very low failure rate.
6. It is simple to clean slag only after burning completing.
Norms of boiler for paper mill
Parameters |
Unit |
DZL(H)1 -0.7 |
DZL(H) 2 -0.7 |
DZL(H) 4 -1.25 |
DZL(H) 6 -1.25 |
DZL(H) 10 -1.25 |
||||
|
Nominal Capacity |
t/h |
1 |
2 |
4 |
6 |
10 |
||||
|
Nominal Steam Pressure |
MPa |
0.73 |
107 |
1.25 |
1.25 |
1.25 |
||||
|
Nominal Steam Temperature |
°C |
170 |
170 |
194 |
194 |
194 |
||||
|
Feed-water Temperature |
°C |
20 |
20 |
20 |
20 |
20 |
||||
|
Applicable Fuel |
|
AII, AIII, WIII |
||||||||
|
Thermal Efficiency |
% |
78 |
||||||||
|
Weight of Boiler |
t |
15(13.5) |
21(18.5) |
26(23) |
33 |
50 |
||||
What we can provide
1.787,1092,1575,1760,1880,2400,2640,2800,3200mm paper machine
2.paper egg tray machine
3.pulp making equipments
4.paper making equipments
5.paper processing equipments
6.all kinds of spare parts
Best Service:
1.We will provide you all technical consultation and make the drawing and proposal for you.
2.We will send technicians to install and test the machine for you.
3.We will train skilled workers for you.
4.We will supply best pre-sale, after-sales for you.
Henan Province Qinyang Shunfu Paper Making Machinery Co; Ltd. was founded in 1988. We are specialized in the production paper making machinery, pulping equipment, paper egg tray making machine and paper processing equipment. Our products had been certificated by ISO9001 and exported to many countries, such as Uzbekistan, Russia, Kyrgyzstan, Nigeria, Ukraine, Botswana, Libya, Algeria, El Salvador, Lebanon, Moldova, Bolivia.
Hello, this is Dan.
If you are interested in our paper making machine or you want to know more about our
products, please contact me or by sending me email at any time.
We are willing to establish long-term relationship with new and old customers at home
and abroad to achieve mutual benefit . It will be a great honour to serve for you.
Service can knit the future, credibility can cast the brand
