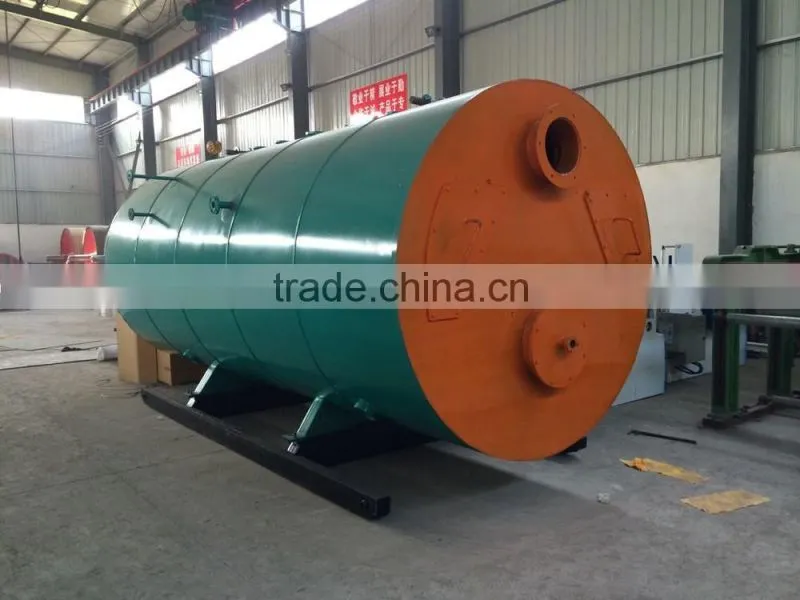

High Quality Industrial Steam Boiler for Saturated Steam for Paper Mill

Name: High Quality Industrial Steam Boiler for Saturated Steam for Paper Mill
Brand: shunfu
SKU: 115927403

US$ 10,000 - 50,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Henan, China

Brand Name:

shunfu

Model Number:

various

Qinyang City Shunfu Paper Making Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or other main ports

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name shunfu

Model Number various

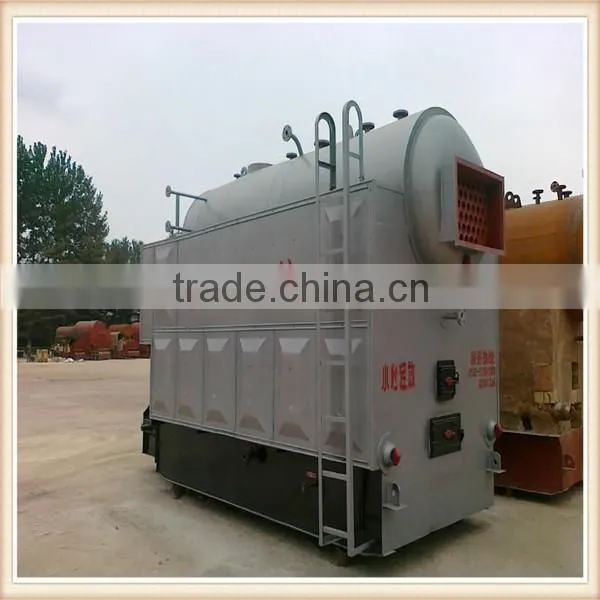

Coal fired steam boiler for paper mill

Product Description

Advantages:

Optimum structural design with fire&water mixing tube make smaller boiler volume and can save 1/3 building cost of boiler house
Spirally corrugated tubes achieve 1-2times higher heat transfer efficiency, and easy for maintenance
New design and larger volume furnace enhance burning efficiency, also achieve lower requirements to fuel.
New furnace with dust separation space make unburned falling fuel second burning, the sufficient combustion greatly enhance heat efficiency and save fuel and environment protection.
We improved the feed water equipment and steam division equipment, steam wetness is below 1%.
Applied advanced water circulation technology, low requirements to water, effectively avoid boiler scale and impurities sediment, longer use life and easy maintenance.

Technical Parameter List of DZL Series Steam Boiler
Boiler model		DZL1-1.0-AII	DZL2-1.0-AII	DZL4-1.25-AII	DZL6-1.25-AII	DZL10-1.25-AII	DZL15-1.25-AII	DZL20-1.25-AII
Rated capacity	t/h	1	2	4	6	10	15	20
Rated pressure	MPa	1	1.25	1.25	1.25	1.25	1.25	1.25
Feed temperature	°C	20	20	60	60	105	105	105
Output temperature	°C	184	194	194	194	194	194	194
Active grate area	m2	1.85	3.4	5.18	7.55	12	18	22.9
Exhaust gas temperature	°C	157	163	180	166	151	161	150
Design efficiency	%	80	80	80	80	80	81	81
Coal consumption	Kg/h	118	238	472	685	1128	1698	2241
Weight	t	14.2	23.2	28	47.6	56	18.8	19.1
Dimension	mm	5488×2200×2832	5900×2500×3256	6829×2550×3484	7695×3180×4074	7746×3773×3441	8650×2300×2500	8915×3373×3337
Delivery mode		Fast	Fast	Fast	Fast	assembly	assembly	semi-assembly
