Stainless Steel Deckle Edge Trimming Solid Stream Water Nozzle High Pressure
US$ 10 - 20
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
XRST
Model Number:
CY38170/CY38171
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin xingang shanghai shenzhen qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel High Pressure Ceramic Solid Water Stream NozzleUS$ 10 - 20MOQ: 10 Pieces -
Wind Nozzle Air Knife Dry Machine PartUS$ 40 - 180MOQ: 10 Pieces
-
Mixing Fluid NozzleUS$ 1 - 3MOQ: 50 Pieces
-
Disc NozzleUS$ 1 - 10MOQ: 50 Pieces
-
Stainless Steel High Pressure Disc Flat Fan NozzleUS$ 1 - 10MOQ: 50 Pieces
Place of Origin
Tianjin, China
Brand Name
XRST
Model Number
CY38170/CY38171
stainless steel deckle edge trimming solid stream water nozzle high pressure
Product Description
Features:
- This kind of nozzle is used for the trimming of the paper that supply a precise, clean cut.
- It can produce a straight needle solid stream.
- It can work at high pressure of 140 bar.
- This nozzle orifice material we have the SS316 and ceramic, red ruby and Tungsten aloy
Performance data sheet
| Nozzle Type | Serial Number | Orifice Dia. (mm) | Capacity (L/min) | |||||||||
| 7Bar | 10Bar | 20Bar | 30Bar | 40Bar | 50Bar | 60Bar | 70Bar | 100Bar | 138Bar | |||
| The only aperture ruby | 15 | 0.38 | 0.17 | 0.21 | 0.29 | 0.36 | 0.41 | 0.46 | 0.5 | 0.54 | 0.65 | 0.76 |
| CY38170/CY38171 | 20 | 0.51 | 0.31 | 0.36 | 0.52 | 0.63 | 0.73 | 0.82 | 0.89 | 0.93 | 1.2 | 1.4 |
| CY38170/CY38171 | 25 | 0.64 | 0.48 | 0.57 | 0.81 | 0.99 | 1.1 | 1.3 | 1.4 | 1.5 | 1.8 | 2.1 |
| CY38170/CY38171 | 30 | 0.76 | 0.69 | 0.82 | 1.2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.6 | 3.1 |
| CY38170/CY38171 | 35 | 0.89 | 0.93 | 1.1 | 1.6 | 1.9 | 2.2 | 2.5 | 2.7 | 3 | 3.5 | 4.2 |
| CY38170/CY38171 | 40 | 1 | 1.2 | 1.5 | 2.1 | 2.5 | 2.9 | 3.3 | 3.6 | 3.9 | 4.6 | 5.4 |
| CY38170/CY38171 | 45 | 1.1 | 1.5 | 1.9 | 2.6 | 3.2 | 3.7 | 4.1 | 4.5 | 4.9 | 5.8 | 6.9 |
| CY38170/CY38171 | 50 | 1.3 | 1.9 | 2.3 | 3.2 | 4 | 4.6 | 5.1 | 5.6 | 6 | 7.2 | 8.5 |
| CY38170/CY38171 | 60 | 1.5 | 2.8 | 3.3 | 4.6 | 5.7 | 6.6 | 7.3 | 8 | 8.7 | 10.4 | 12.2 |

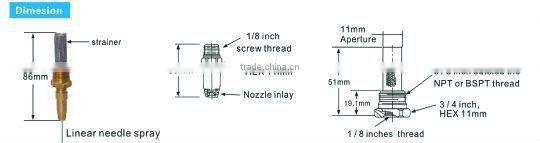

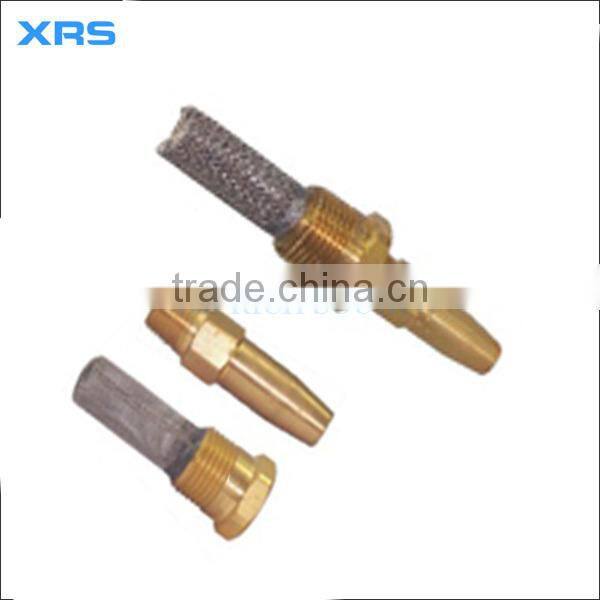

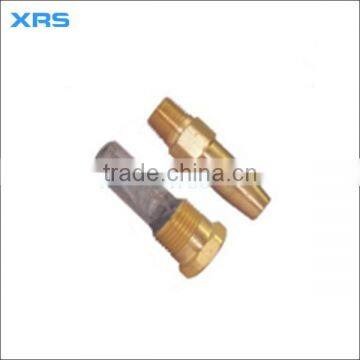

CY38170 model CY38171 type CY38172 type
header with strainer Needle without water strainer Adapter/strainer combination
Note Material:
CY38170 brass nozzles for the main materials, filter materials for stainless steel, ceramic nozzle for the inlay.

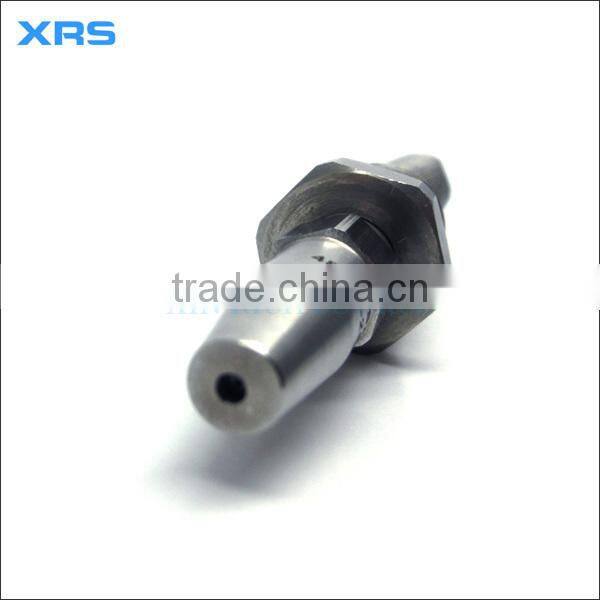

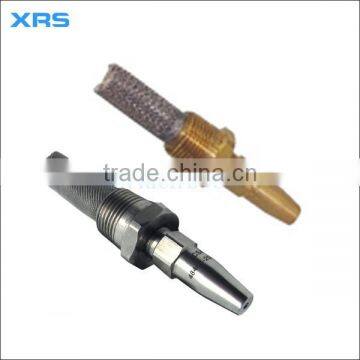

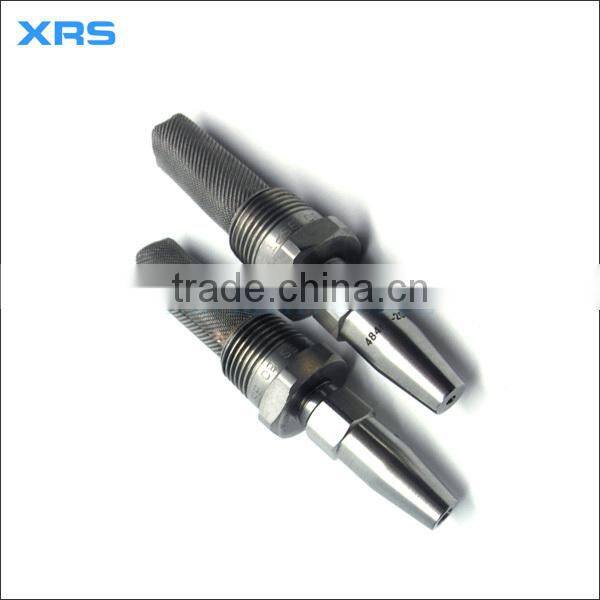

Pictures:
Packaging & Shipping
Wooden case or Carton.
Our Services
If you need more information, please contact us.
