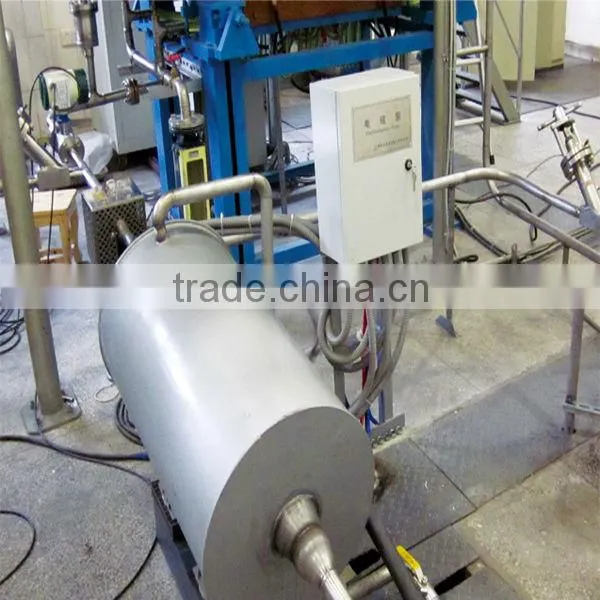

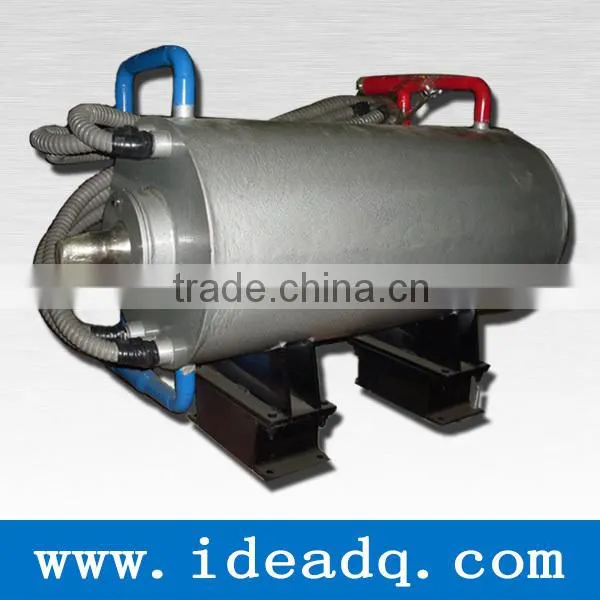

Design Electromagnetic Pump Shijia Zhuang

Design Electromagnetic Pump Shijia Zhuang thumbnail-1
Design Electromagnetic Pump Shijia Zhuang photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
IDEA
Model Number:
DCB,DCB series
Contact Supplier Request Quote Chat Now
Shijiazhuang Idea Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name IDEA
Model Number DCB,DCB series
Usage Other, Heat transter metal
Power Electric
Standard or Nonstandard Standard
Pressure High Pressure
Application Other, Heat transfer metal, Aluminium melting
Theory Other, electromagnetic pump

















           Electromagnetic pump is the use of magnetic field and in the conductive fluid interaction, make the fluid by the electromagnetic force and pressure gradient, and a device to push the fluid motion. Mostly used for pumping liquid metal in the practical, so is also called the liquid metal electromagnetic pump. The role of electromagnetic pump is in the closed pipeline system to transmission of liquid metal, or other conductible liquid. In this sense, electromagnetic pump is familiar with rotating impeller drive equipment, the difference is the force generated in a different way. Drivers can use the right hand rule, when current flows through a conductor, will produce an induced magnetic field with metal solution produce induced current, induced current and magnetic field produce electromagnetic force, The force is the motive force of the molten metal movement, this force is not generated by mechanical components, and the metal solution not contact is the most important feature of electromagnetic pump.











          Series type



unit type

EMP50-AL

EMP100-AL

EMP150-AL

EMP200-AL

electric parameter

supply voltage

380V±10%

380V±10%

380V±10%

380V±10%

supply frequency

50Hz

50Hz

50Hz

50Hz

phase number

3 phase

3 phase

3 phase

3 phase

input power

60 KVA

100 KVA

150 KVA

200 KVA

effective power

36Kw

60Kw

90Kw

120Kw

voltage regulation

classification adjust

classification adjust

classification adjust

classification adjust

performance parameter(as 720°C;Density of 2.3 Kg/dm. 3 calculate)

Maximum flow rate T/min

3

5

10

15

peak flow rate m/sec

6

6

8

8

maximum operating temperature

1000°C

1000°C

1000°C

1000°C

Aluminium smelter capacity *

<10

<20

<35

<50

Cooling water parameters

cooling power

20Kw

60Kw

90Kw

120Kw

Pure water pressure

0.45~0.6MPa

0.45~0.6MPa

0.45~0.6MPa

0.45~0.6MPa

Pure water flow

6 t/h

10 t/h

14 t/h

16 t/h

specific conductance

≤40μS

≤40μS

≤40μS

≤40μS

appearance and weight of machine

Electrical cabinet size

650×1000×2000

650×1000×2000

650×1000×2000

650×1000×2000

Number of electrical cabinet

1

2

2

2

transformer capacity

60 KVA

100 KVA

150 KVA

200 KVA

Pump body size

480*480*650

(φ70)

500*500*650

(φ86)

600*600*890

(φ110)

650*650*890

(φ120)

Pump weight T

0.35

0.4

0.6

0.65

Pump body cooling way

Closed loop water cooling

Closed loop water cooling

Closed loop water cooling

Closed loop water cooling

Supporting insulation wear-resisting pipe parameters

internal diameter of the pipeline

φ70

φ86

φ110

φ120

Pipe outside diameter

φ190

φ206

φ230

φ240

Wear-resistant tube life

4-6 months

4-6 months

4-6 months

4-6 months

Thermal insulation pipe material

alumina silicate fibre

alumina silicate fibre

alumina silicate fibre

 alumina silicate fibre













 Design Electromagnetic pump Shijia Zhuang
