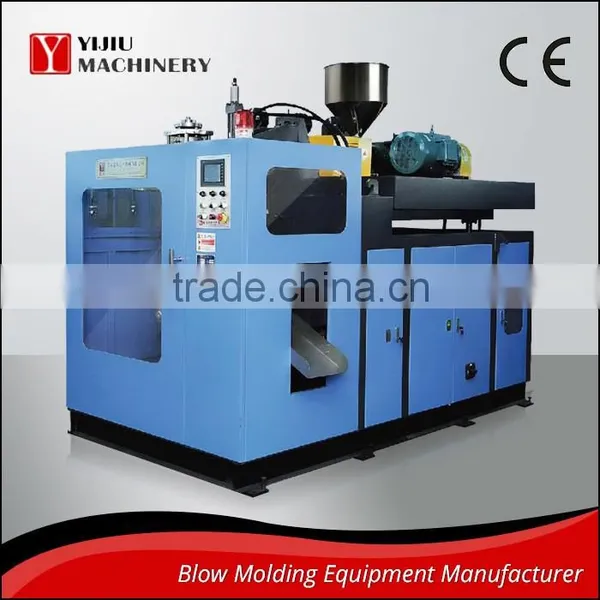

Best Supplier In China Display Mannequin Molding Machine
US$ 155,000 - 200,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Famous Factory Standing Mannequin Plastic Injection MachineryUS$ 155,000 - 200,000MOQ: 1 Set -
Leading Manufacturer Clothes Model Mannequin Plastic MachineUS$ 155,000 - 200,000MOQ: 1 Set
-
OEM Offered Supplier Plus Size Mannequin Plastic Bag Blow Moulding MachineUS$ 155,000 - 200,000MOQ: 1 Set
-
OEM Offered Manufacturer Plastic Mannequin Injection Molding MachineUS$ 200 - 58,000MOQ: 1 Set
-
Advanced Production Line Supplier Sports Mannequin Mini Injection Molding MachineUS$ 200 - 58,000MOQ: 1 Set
Condition
New
Application
Bottle
Plastic Processed
PE
Blow Moulding Type
Stretch Blow Moulding
Automatic
Yes
Place of Origin
Jiangsu, China
Brand Name
Yijiu Machinery
Model Number
03-ES-120-220L-T2
Voltage
380V-50Hz
Power(W)
195kw
Dimension(L*W*H)
5.5x2.8x4.5m
Weight
16 Ton
Certification
CE
Warranty
1 Year

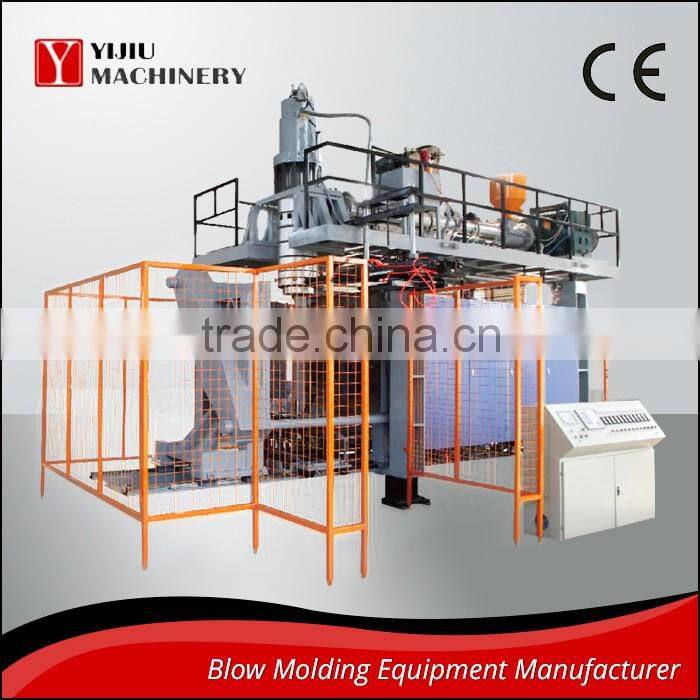

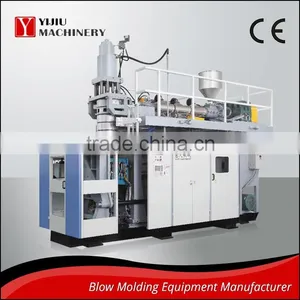

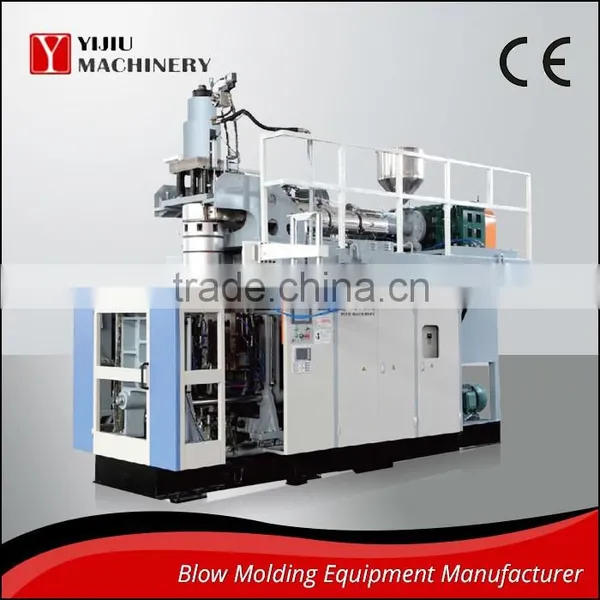

Best Supplier In China Display Mannequin Molding Machine
| ||
| Main Parameters | ||
| Available material | PE,PP,etc. | |
| Max. Product Volume | 220 | (L) |
| Dry Cycle | 280 | (pcs/h) |
| Machine Size | 6.0x3.0x4.9 | (LxWxH)(m) |
| Machine Weight | 30 | (Ton) |
| Installed capacity | 195 | KW |
| Plasticizing System | ||
| Screw Diameter | 120 | (mm) |
| Screw L/D Ratio | 33 | L/D |
| Plasticizing capacity | 350 | (kg/h) |
| Screw Heating Zone | 6 | (Zone) |
| Screw Drive Power | 110/132 | (KW) |
| Extrusion Die Head | ||
| Type | Continuous Die Head | |
| NO. of Heating Zone | 6 | (Zone) |
| Die Heating Power | 30 | (KW) |
| Max. Die Diameter | 580 | (mm) |
| Opening And Clamping System | ||
| Clamping Force | 900 | (KN) |
| Mold Stroke | 700-1600 | (mm) |
| Max. Mold Size | 1350x1600 | (WxH)(mm) |
| Hydraulic System | ||
| Oil Pump Power | 55 | (KW) |
| System pressure | 8 | (MPa) |
| Related Information For Molding Machine | ||
|
|
|
| FAQ For Molding Machine |
| Q1:Are you a trading company or a manufacturer? |
| A1:We own a factory ourselves, and we can assure the quality we manufactured. |
| Q2:What’s your guarantee or the warranty of the quality if we buy your machines? |
| A2:We offer you high quality machines with high quality after-service. Also we have one year warranty of the spare parts, free of charge. |
| Q3:How can I install my machine when it arrives? |
| A3:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines. |
| Q4:How about the spare parts? |
| A4:After we deal down all the things , we will offer you a spare parts list for your reference. |
| Q5:What after-sales service your company offers? |
| 1, Your inquiry related to our product & price will be replied within 72 hours. |
| 2, Well-trained & experienced staff are to answer all your inquiries in English and Chinese. |
| 3, Working time: 8:00am ~6:30pm, Monday to Saturday. |
| 4, Your business relationship with us will be confidential to any third party. |
| 5, Good after-sales service offered, please get back to us if you got any questions. |
| ||

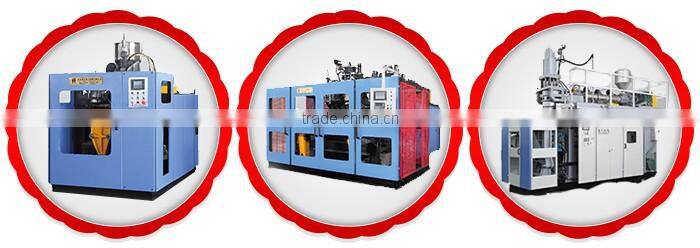

| One Station | Double Station | Energy Saving |
